Configuring Oracle Monitoring

The following sections describe how to configure your Oracle Database instances for monitoring by SL1 using the Oracle: Database PowerPack:

Prerequisites for Monitoring Oracle Database Instances

To configure the SL1 system to monitor Oracle Database instances using the Oracle: Database PowerPack, you must have a minimum of two users:

SSH user to access instance related data (pmon, smon, etc.) from the Server hosting the Oracle DB instance.
Oracle Database User to access the instance.

On a multi-tenant instance like a CDB, there can be multiple users to access CDBs and PDBs

Minimal permissions for SSH user access:
- Permissions to access $ORACLE_HOME directory:
- Directories: --x
- Binaries (oracle_path/bin): --x
- Libraries (oracle_path/lib): r-x
- File “listeners.ora”: r--
- File “tnsnames.ora”: r--
- ORACLE_HOME Directory: --x
- Everything else that’s not executable in $ORACLE_HOME: r--
- Permissions to execute commands. For example, $ORACLE_HOME/lsnrctl status or tnsping.
- Permissions to read files. For example, listeners.ora/tnsnames.ora ($ORACLE_HOME or $TNS_ADMIN folder).

r= read; w= write; x= execute; –= denied. All files and directories can be owned by another non-credential user in SL1. However, the permissions must be given to the credential user's group, or to everyone else (Other).

If you do not want to configure permissions, you can move the SSH user to the group used by the Oracle installer.

The Oracle database user must have access to the following tables:

dba_data_files
dba_free_space
dba_registry
dba_scheduler_jobs
dba_tablespaces
dba_temp_files
gv$sort_segment
sys.dba_ind_partitions
sys.dba_ind_subpartitions
sys.dba_indexes
sys.dba_objects
sys.v_$database_block_corruption
sys.v_$lock
v$archive_dest
v$archived_log
v$block_change_tracking
v$controlfile
v$database
v$datafile
v$datafile_header
v$diag_alert_ext
v$dispatcher
v$latch
v$librarycache
v$log
v$log_history
v$logfile
v$open_cursor
v$parameter
v$resource_limit
v$rman_backup_job_details
v$rollstat
v$rowcache
v$session
v$sesstat
v$statname
v$sysstat
v$tablespace
v$tempfile
v$version

v$asm_client (required for ASM/RAC Dynamic Applications)
v$asm _disk (required for ASM/RAC Dynamic Applications)
v$asm_diskgroup (required for ASM/RAC Dynamic Applications)
v$recovery_file_dest(required for ASM/RAC Dynamic Applications)

All Oracle database users must have the following privileges:

sys_privileges: CREATE SESSION
role_privileges: SELECT_CATALOG_ROLE
tan_privileges: SELECT ON SYS.V_$DIAG_ALERT_EXT, SELECT ON SYS.TS$
Permission to alter sessions.
To monitor pluggable databases (PDBs), permissions to view DBA_PDBS and V_$PDBS

Examples for creating users and assigning privileges:

If you want to monitor a container database (CDB) and PDB, log in to the CDB and create a user and grant access to containers using the following permissions:

Create a user: CREATE USER C##[USERNAME] IDENTIFIED BY [PASSWORD] CONTAINER=ALL;
Grant access to query tables: GRANT CREATE SESSION to C##[USERNAME] CONTAINER=ALL;
Grant access to all common tables and views on a CDB: GRANT SELECT_CATALOG_ROLE to C##[USERNAME] CONTAINER=ALL;
Grant access for the "Oracle: DB Tablespace Temp Stats" Dynamic Application: GRANT SELECT on SYS.TS$ to C##[USERNAME] CONTAINER=ALL;
Grant access for the "Oracle: DB Log Alerts Config" Dynamic Application: GRANT SELECT on SYS.V_$DIAG_ALERT_EXT to C##[USERNAME] CONTAINER=ALL;
Show PDBs:

alter user C##[USERNAME] set container_data=(CDB$ROOT,PDB1,PDB2) for DBA_PDBS CONTAINER=CURRENT;

alter user C##[USERNAME] set container_data=(CDB$ROOT,PDB1,PDB2) for V_$PDBS CONTAINER=CURRENT;

If you want to monitor a non-container database (non-CDB), you can create a user and grant access to the user using the following permissions:

Create a user: CREATE USER [USERNAME] IDENTIFIED BY [PASSWORD] ;
Grant access to query tables: GRANT CREATE SESSION to [USERNAME];
Grant access to all common tables and views on a non-CDB: GRANT SELECT_CATALOG_ROLE to [USERNAME];
Grant access for the "Oracle: DB Tablespace Temp Stats" Dynamic Application: GRANT SELECT on SYS.TS$ to [USERNAME];
Grant access for the "Oracle: DB Log Alerts Config" Dynamic Application: GRANT SELECT on SYS.V_$DIAG_ALERT_EXT to [USERNAME];

If you are monitoring RAC and ASM instances, no additional permissions are needed.

Each Oracle database user will need a corresponding SL1 database credential for database access.

You can create a single user to access a CDB and all PDBs but you will need to create a minimum of 2 database credentials, one credential for the CDB and one credential for all PDBs.

Configuring Oracle Credentials

To monitor Oracle Database instances using SL1, you must create at least two credentials. The types of credentials that are required for monitoring depend on the type of server that is hosting the Oracle Database:

Linux and Unix users must use an SSH/Key credential and Windows users must use a PowerShell credential
If you are using version 104 and above of the PowerPack, you must also use a Database credential for each CDB, PDB, or Non-CDB

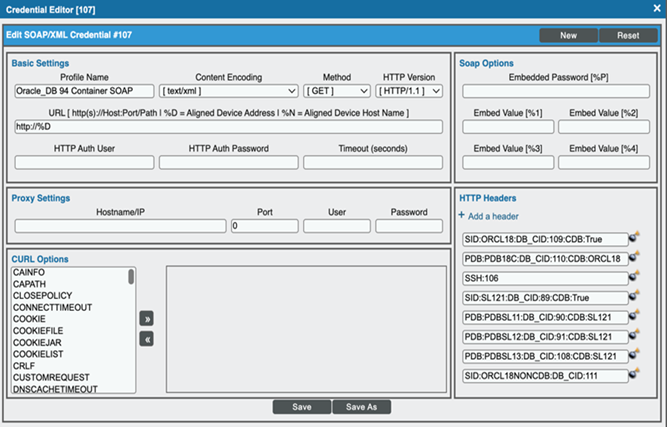

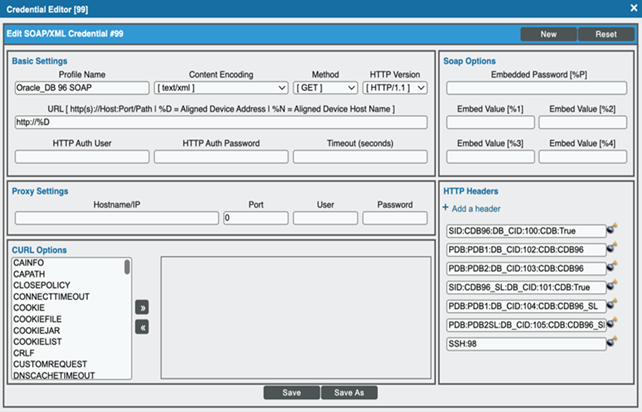

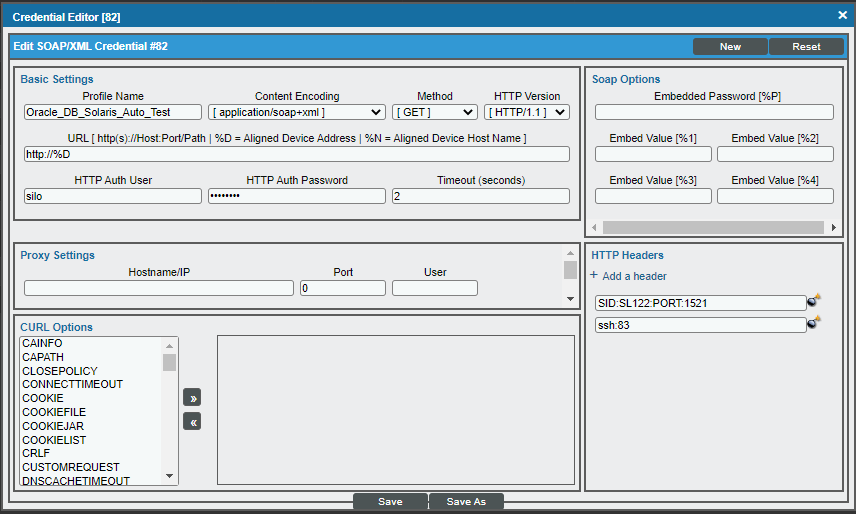

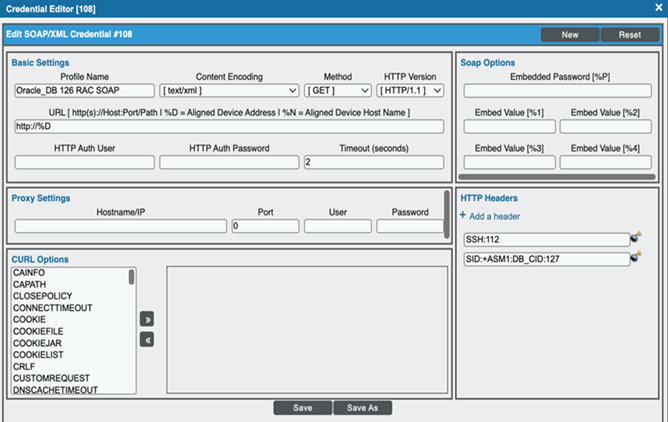

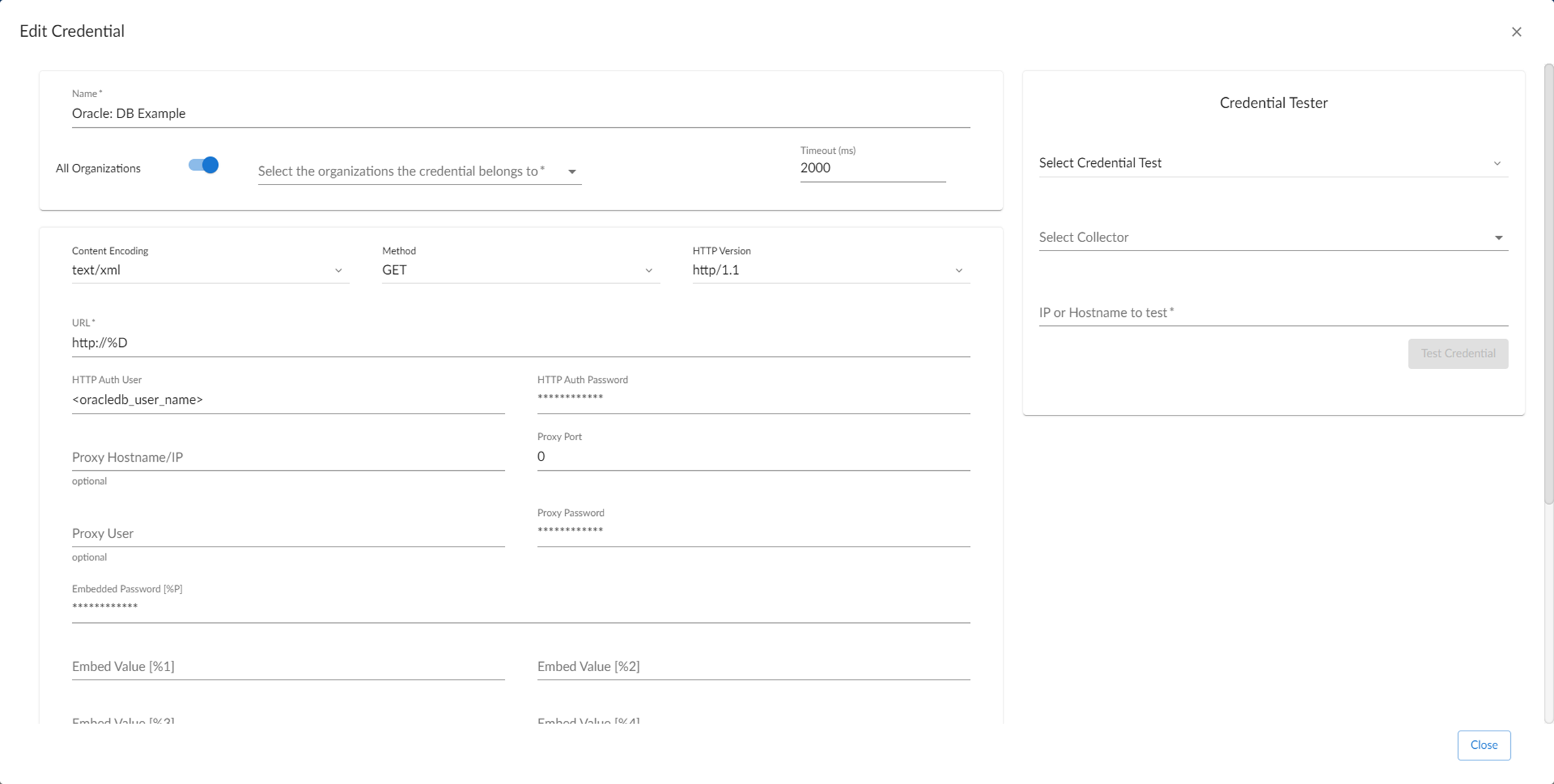

All users must use a SOAP/XML credential to link all credentials

NOTE: The SOAP/XML credential is the only credential that is used for discovery.

Suggested Timeout Configuration

There are current platform limitations to implement a timeout for Database Server sessions.

To prevent issues and perform the suggested configuration:

Create a new profile for the DB user in the Database.
Configure the profile with these queries:

ALTER PROFILE <profile> LIMIT IDLE_TIME 3
ALTER PROFILE <profile> LIMIT CONNECT_TIME 3

With this configuration implemented, a three-minute minute timeout session is established. This allows the user time to stop the collection if it prevents SL1 to create SIGTERMs.

Creating an SSH/Key Credential (Linux Users)

Linux and Unix users must create an SSH/Key credential.

NOTE: If you are on an SL1 system prior to version 11.1.0, you will not be able to duplicate the sample credential. It is recommended that you create your new credentials using the SL1 classic user interface so you do not overwrite the sample credential(s).

To create an SSH/Key credential:

Go to the Credentials page (Manage > Credentials).
Locate the "Oracle: DB SSH Server Example" sample credential, then click its Actions icon () and select Duplicate. A copy of the credential, called Oracle: DB SSH Server Example copy appears.

Supply values in the following fields:

Name. Type a new name for the credential.

All Organizations. Toggle on (blue) to align the credential to all organizations, or toggle off (gray) and then select one or more specific organizations from the What organization manages this service? drop-down field to align the credential with those specific organizations.

Hostname/IP. Type "%D" or the IP address of the server that is hosting the Oracle Database.

Port. Type "22".

Username. Type the username for the Linux server that is hosting the Oracle Database.
Password. Type the password for the Linux server that is hosting the Oracle Database.
Private Key (PEM Format). Optional. Use if required for SSH authentication. For information on gathering a private key, see the section on Enabling PEM on a Linux Machine.

The private key can have a maximum of 64 characters per line. Therefore, you cannot use keys in the OpenSSH format, because that format uses 70 characters per line. When you attempt to save the credential, SL1 will validate that the private key entered is in the correct format. You will be able to save the credential only if the private key is correctly formatted.

Click Save & Close.

NOTE: The credential ID will appear in the ID column of the Credentials page after it has been saved. Take note of the ID as you will need it when creating the SOAP/XML credential.

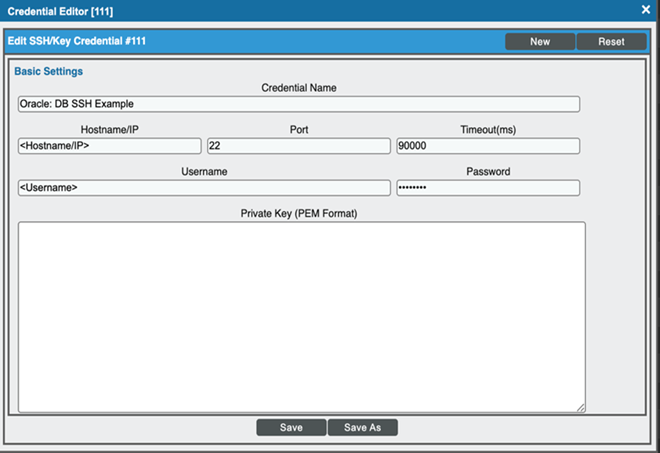

Creating an SSH/Key Credential (Linux Users) in the Classic SL1 User Interface

Linux and Unix users must create an SSH/Key credential.

To create an SSH/Key credential :

Go to the Credential Management page (System > Manage > Credentials).

Click the wrench icon () for the "Oracle: DB SSH Server Example" credential. The Credential Editor modal page appears:

Supply values in the following fields:

Credential Name. Type a new name for the credential.

Hostname/IP. Type "%D" or the IP address of the server that is hosting the Oracle Database.
Port. Type 22.
Username. Type the username for the Linux server that is hosting the Oracle Database.
Password. Type the password for the Linux server that is hosting the Oracle Database.
Private Key (PEM Format). Optional. Use if required for SSH authentication. For information on gathering a private key, see the section on Enabling PEM on a Linux Machine.

Click the Save As button.
When the confirmation message appears, click OK.

NOTE: The credential ID will appear at the top of the window after it has been saved. Take note of the ID as you will need it when creating the SOAP/XML credential.

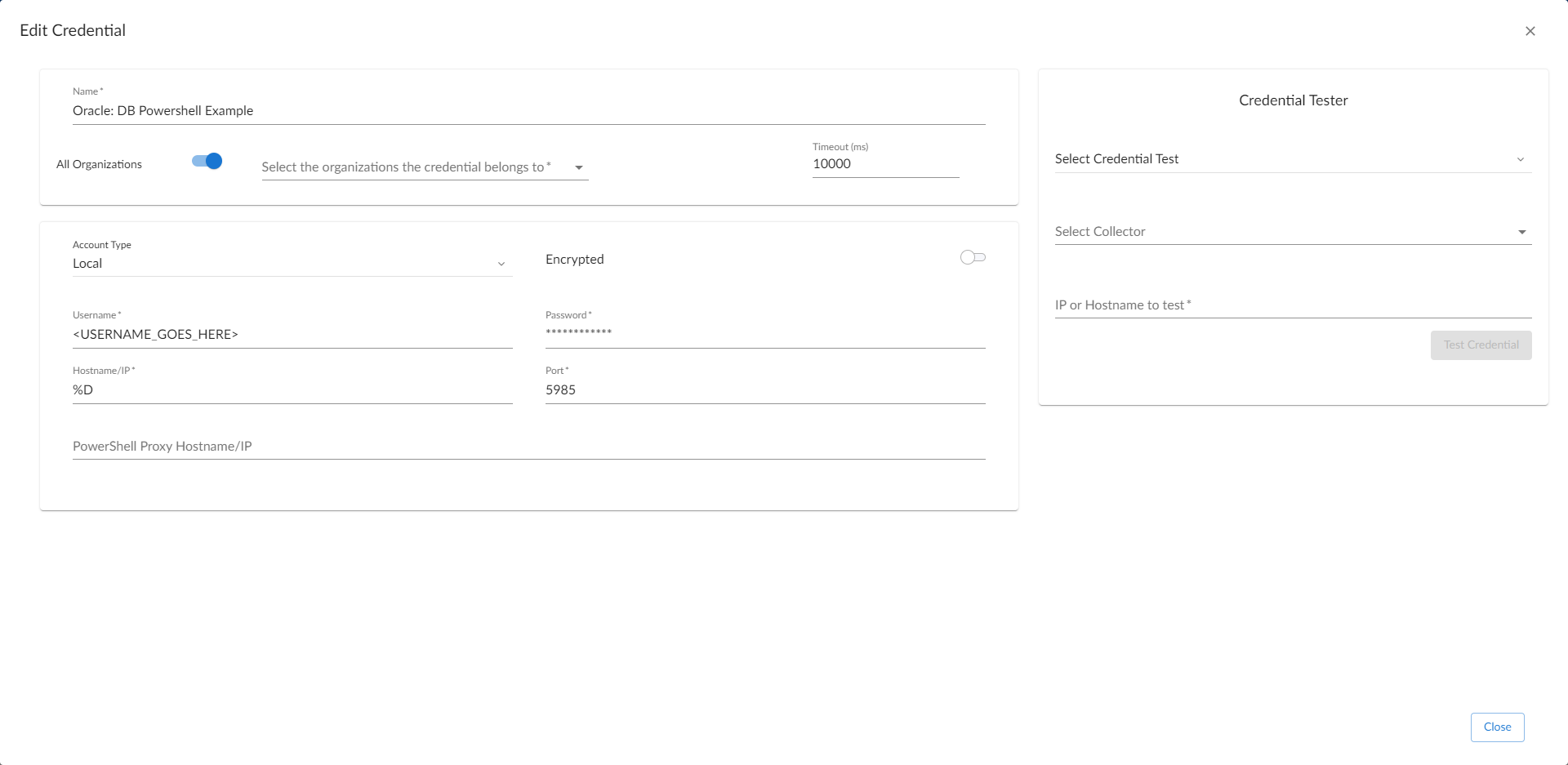

Creating a PowerShell Credential (Windows Users)

Windows users must create a PowerShell credential.

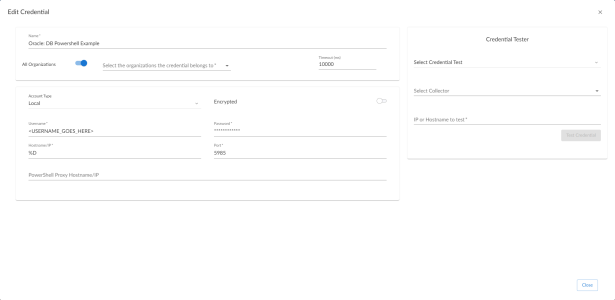

To create a PowerShell credential:

Go to the Credentials page (Manage > Credentials).
Locate the "Oracle: DB PowerShell Example" sample credential, then click its Actions icon () and select Duplicate. A copy of the credential, called Oracle: DB PowerShell Example copy appears.

Supply values in the following fields:

Name. Type a new name for the credential.

All Organizations. Toggle on (blue) to align the credential to all organizations, or toggle off (gray) and then select one or more specific organizations from the What organization manages this service? drop-down field to align the credential with those specific organizations.

Timeout (ms). Time, in milliseconds, after which SL1 will stop trying to communicate with the authenticating server. For collection to be successful, SL1 must connect to the authenticating server, execute the PowerShell command, and receive a response within the amount of time specified in this field.

Account Type. Select Local. However, if you plan to host an Oracle Database in a server that is part of an Active Directory, select Active Directory and configure a user without admin permissions.

NOTE:For ease of configuration, ScienceLogic recommends using an Active Directory account that is a member of the local Administrators group.

Hostname/IP. Hostname/IP of the AD Server, not the server’s IP that is part of the AD.

Username. Type the username for the Windows server that is hosting the Oracle Database.

Password. Type the password for the Windows server that is hosting the Oracle Database.

Encrypted. Select whether SL1 will communicate with the device using an encrypted connection:

Toggle on (blue) if SL1 will communicate with the device using an encrypted connection. If the connection is encrypted, when communicating with the Windows server, SL1 will use a local user account with authentication of type "Basic Auth". You must then use HTTPS and can use a Microsoft Certificate or a self signed certificate.
Toggle off (gray) if the connection is not encrypted. If the connection is not encrypted, when communicating with the Windows server, SL1 will not encrypt the connection.

Port. Type "5985" (http) or "5986" (https).
PowerShell Proxy Hostname/IP. Leave this field blank.
Active Directory Host/IP. If you selected Active Directory in the Account Type field, type the hostname or IP address of the Active Directory server that will authenticate the credential.
Active Directory Domain. If you selected Active Directory in the Account Type field, type the domain where the monitored Windows device resides.

Click Save & Close.

NOTE: The credential ID will appear in the ID column of the Credentials page after it has been saved. Take note of the ID as you will need it when creating the SOAP/XML credential.

If you do not have Local Administrator access to the servers that you want to monitor with PowerShell or WinRM, or if the monitored Windows server is a Domain Controller that will not be in the local Administrators group, then you must first create a domain user account or create a local user account on the Windows Server.

To configure Windows Servers to allow access by your non-administrator user account:

See Option 3: Creating a Non-Administrator User Account in the Configuring Windows Servers for Monitoring with PowerShell manual, and follow Option 3's steps.
Configure a Server Authentication Certificate. See Step 2: Configuring a Server Authentication Certificate in the same manual to follow steps if needed.
Configure a Windows Remote Management. See Step 3: Configuring Windows Remote Management and follow the “Option 1: Using a Script to Configure Windows Remote Management” instructions.

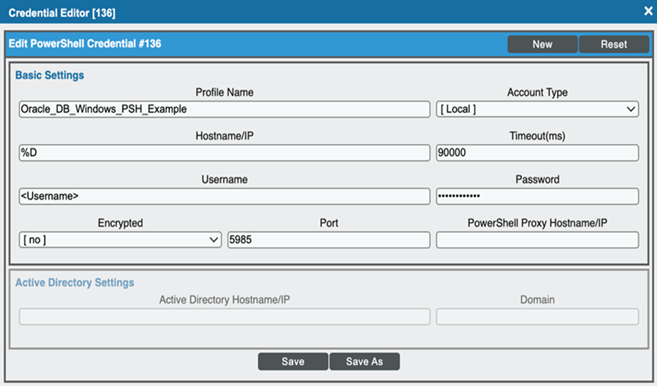

Creating a PowerShell Credential (Windows Users) in the Classic SL1 User Interface

Windows users must create a PowerShell credential.

To create a PowerShell credential:

Go to the Credential Management page (System > Manage > Credentials).
Click the wrench icon () for the "Oracle: DB Powershell Example" credential. The Credential Editor modal page appears:

Supply values in the following fields:

Profile Name. Type a new name for the credential.

Account Type. Select Local. However, if you plan to host an Oracle Database in a server that is part of an Active Directory, select Active Directory and configure a user without admin permissions.

NOTE:For ease of configuration, ScienceLogic recommends using an Active Directory account that is a member of the local Administrators group.

Active Directory Settings. Hostname/IP of the AD Server, not the server’s IP that is part of the AD.
Domain. Domain the user is in.
Hostname/IP. Type "%D" or the IP address of the server that is hosting the Oracle Database.
Timeout (ms). Type the time, in milliseconds, after which SL1 will stop trying to collect data from the authenticating server. For collection to be successful, SL1 must connect to the authenticating server, execute the PowerShell command, and receive a response within the amount of time specified in this field.

Username. Type the username for the Windows server that is hosting the Oracle Database.
Password. Type the password for the Windows server that is hosting the Oracle Database.

Encrypted. Select whether SL1 will communicate with the device using an encrypted connection. Choices are:

yes. When communicating with the Windows server, SL1 will use a local user account with authentication of type "Basic Auth". You must then use HTTPS and can use a Microsoft Certificate or a self-signed certificate.
no. When communicating with the Windows server, SL1 will not encrypt the connection.

Port. Type "5985" (http) or "5986" (https).

PowerShell Proxy Hostname/IP. Leave this field blank.

Click the Save As button.

NOTE: The credential ID will appear at the top of the window after it has been saved. Take note of the ID as you will need it when creating the SOAP/XML credential.

To configure Windows Servers to allow access by your non-administrator user account:

See Option 3: Creating a Non-Administrator User Account in the Configuring Windows Servers for Monitoring with PowerShell manual, and follow Option 3's steps.
Configure a Server Authentication Certificate. See Step 2: Configuring a Server Authentication Certificate in the same manual to follow steps if needed.
Configure a Windows Remote Management. See Step 3: Configuring Windows Remote Management and follow the “Option 1: Using a Script to Configure Windows Remote Management” instructions.

Creating a Database Credential

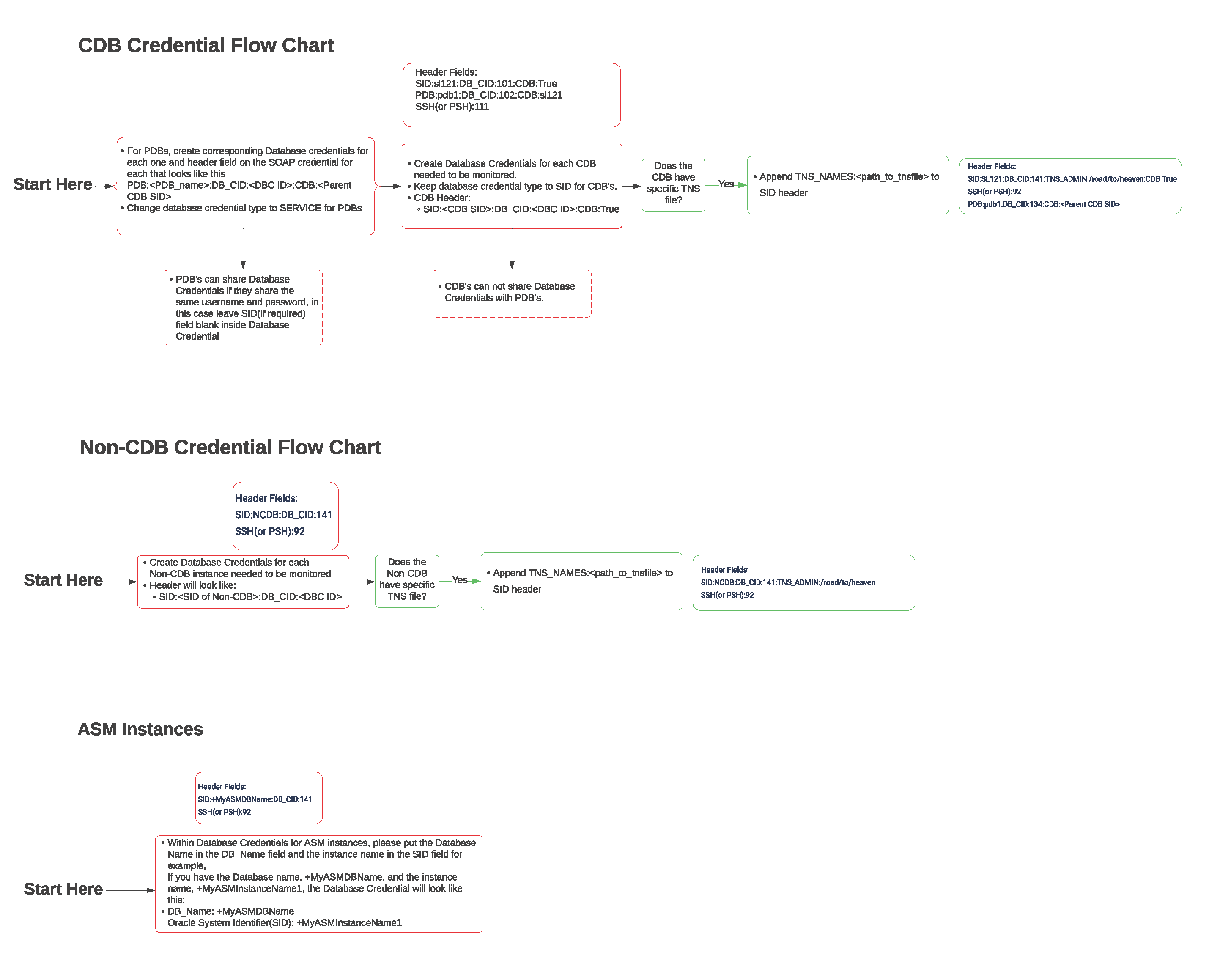

Linux or Unix users that want to monitor multiple CDB or PDB instances must create a database credential.

CDBs and PDBs each need a separate database credential but if you have PDBs that share the same username and password, they can use the same database credential and the SID name field can be left blank.

To create a database credential:

Go to the Credentials page (Manage > Credentials).
Click the Create New button and then select Create Database Credential. The Create Credential modal page appears:

Supply values in the following fields:

Name. Type a name for the credential.

All Organizations. Toggle on (blue) to align the credential to all organizations, or toggle off (gray) and then select one or more specific organizations from the What organization manages this service? drop-down field to align the credential with those specific organizations.

Timeout (ms). Type a time, in milliseconds, after which SL1 will stop trying to communicate with the database.

Database Type. Select Oracle & *SQLNet.

Database Name. Type the name of the database parent. If the database does not have a parent, type the name of the database to access.

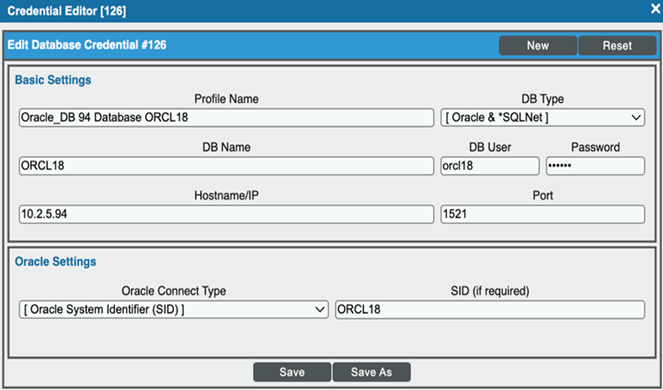

To discover CDBs, type the CDB's SID.

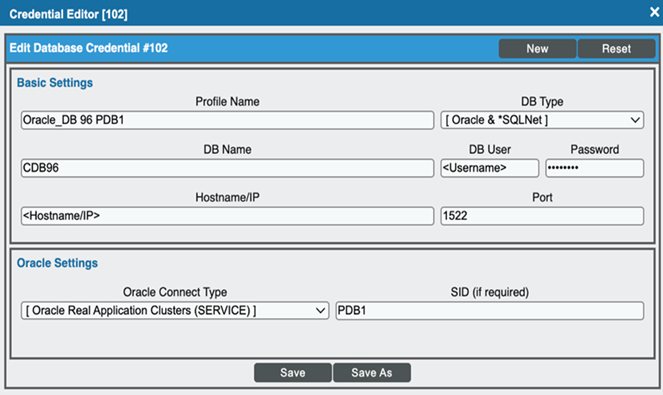

To discover PDBs, type the SID of the parent CDB.

DB User. Type the username for the Oracle Database account.

To discover CDBs, type the instance username.
To discover PDBs, type the PDB instance username.

Password. Type the password for the Oracle Database account.

To discover CDBs, type the instance password.
To discover PDBs, type the PDB instance password.

Hostname/IP. Type "%D" or the IP address where the database resides.

Port. Type the port number associated with the database you want to access with this credential. For the Oracle and *SQLNet database type, the default value is 1521.

To discover CDBs, type the listener port value.
To discover PDBs, type the PDB listener port value.

Oracle Settings

Oracle Connect Type. Select the method SL1 should use to connect to the Oracle database. The choices supported by this PowerPack are:

Oracle System Identifier (SID). Select this option if you want to discover a CDB or Non-CDB instance.
Oracle Real Application Clusters (SERVICE). Select this option if you want to discover a PDB instance.

This field is used to populate the 'SERVICE_NAME' field identified in the SOAP/XML credential. This method must be selected even if the server is not a RAC system.

Oracle Database SID (if required). Type the value for the Oracle Connect Type (either Oracle SID, Oracle RAC, or Oracle Server) selected in the Oracle Connect Type field.

To discover CDBs, type the instance SID.
To discover PDBs, type the PDB instance SID.
If you want multiple instances to share the same credential, leave the field blank.

NOTE: Any PDB instance SID that you entered in the database credential should match the SID in your tnsnames.ora file. Your SOAP/XML credential can have the alias of the PDB instance SID. Oracle Database is case-sensitive, so your PDB name must match the case shown either in your tnsnames.ora or in the PDB_NAME column of the DBA_PDBS table.

Click Save & Close.

NOTE: The credential ID will appear in the ID column of the Credentials page after it has been saved. Take note of the ID as you will need it when creating the SOAP/XML credential.

Creating a Database Credential in the Classic SL1 User Interface

Linux or Unix users that want to monitor multiple CDB or PDB instances must create a database credential.

To create a database credential:

Go to the Credential Management page (System > Manage > Credentials).

In the Credential Management page, click the Actions menu. Select Create Database Credential.

The Credential Editor modal page appears. In this page, you can define the new database credential. To define the new credential, supply values in the following fields:

Basic Settings

Profile Name. Type a name for the credential.
DB Type. Select Oracle & *SQLNet.

Database Name. Type the name of the database parent. If the database does not have a parent, type the name of the database to access.

To discover CDBs, type the CDB's SID.
To discover PDBs, type the SID of the parent CDB.

DB User. Type the username for the Oracle Database account.

To discover CDBs, type the instance username.
To discover PDBs, type the PDB instance username.

Password. Type the password for the Oracle Database account.

To discover CDBs, type the instance password.
To discover PDBs, type the PDB instance password.

Hostname/IP. Type "%D" or the IP address where the database resides.
Port. Type the port number associated with the database you want to access with this credential. For the Oracle and *SQLNet database type, the default value is 1521.

To discover CDBs, type the listener port value.
To discover PDBs, type the PDB listener port value.

Oracle Settings

Oracle Connect Type. Select the method SL1 should use to connect to the Oracle database. The choices supported by this PowerPack are:

Oracle System Identifier (SID). Select this option if you want to discover a CDB or Non-CDB instance.
Oracle Real Application Clusters (SERVICE). Select this option if you want to discover a PDB instance.

This field is used to populate the 'SERVICE_NAME' field identified in the SOAP/XML credential. This method must be selected even if the server is not a RAC system.

SID (if required). Enter the value for the Oracle Connect Type (either Oracle SID, Oracle RAC, or Oracle Server) selected in the Oracle Connect Type field.

To discover CDBs, type the instance SID.
To discover PDBs, type the PDB instance SID.
If you want multiple instances to share the same credential, leave the field blank.

NOTE: Any PDB instance SID that you entered in the database credential should match the SID in your tnsnames.ora file. Your SOAP/XML credential can have the alias of the PDB instance SID.

Click Save.

NOTE: The credential ID will appear at the top of the window after it has been saved. Take note of the ID as you will need it when creating the SOAP/XML credential.

Creating a SOAP/XML Credential

To create a SOAP/XML credential:

Go to the Credentials page (Manage > Credentials).
Locate the "Oracle: DB Example" sample credential, then click its Actions icon () and select Duplicate. A copy of the credential, called Oracle: DB PowerShell Example copy appears.

Supply values in the following fields:

Name. Type a new name for the credential.

All Organizations. Toggle on (blue) to align the credential to all organizations, or toggle off (gray) and then select one or more specific organizations from the What organization manages this service? drop-down field to align the credential with those specific organizations.

URL. Leave the default value of "https://%D".

HTTP Auth User. Type the username for the Oracle Database account. If you created a database credential, this field is not required.
HTTP Auth Password. Type the password for the Oracle Database account. If you created a database credential, this field is not required.

NOTE: Discovering multiple instances on a single database server is supported, but all instances must share the same credentials entered in the SOAP/XML credential's HTTP Auth User and HTTP Auth Password fields.

HTTP Headers

HTTP Headers. Add the following headers by clicking + Add a header and see the following workflow that describes header formats based on the Oracle devices that you are monitoring:

A header should be added for each Oracle Database instance that you are monitoring.

If you are using version 103 of the PowerPack, you can format the header as follows, SID: <Oracle Instance SID>:PORT<Oracle Instance Port that is listening for DB requests>. For example:

SID:SL121:PORT:22

If you are using version 103 of the PowerPack and discovering ASM instances, the entire ASM name must be included in the header field. For example, if an ASM instance is named "+ASM1" and your credential ID is 112, you should enter the following headers:

SSH:112

SID:+ASM1:PORT:1521

If you are using version 104 of the PowerPack and discovering an ASM instances, the entire ASM name must be include in the header field. For example, if an ASM instance is named "+ASM1" and your credential ID is 123, you should enter the following header:

SID:+ASM1:DB_CID:123

SERVICE_NAME: <Service Name acts as an alias to SID>:PORT:<Oracle Instance Port that is listening for DB requests>. For example:

SERVICE_NAME:SL121:PORT:1521

NOTE: If the SERVICE_NAME is different than the SID, discovery will not work.

If a host, or IP address, for the Oracle: Database is assigned to a different IP address from the server, you must apend an additional field to the SOAP credential. For example, HOST.

If each Oracle database instance is registered to a unique IP address, add HOST in addition to the SID and port. The PowerPack will connect the host IP addresses to the respective Oracle database instance. For example:

Ex - sid:<>:port<>:host:<>

If all of your Oracle database instances are registered to a single IP address that is not the same IP address as the server, add a new HTTP header with only the host information. This header will force the PowerPack to use the host IP address for all SIDs. For example:

HOST:<>

If no host is provided in the header, the PowerPack will use the root IP address or the server IP address to connect to all Oracle database instances.

NOTE: Only the SIDs listed in the credential will be discovered.

<OS_TYPE>:<CRED_ID>. The OS type and ID of the SSH/Key credential or PowerShell credential you created. For OS type, enter SSH for Linux or PSH for Windows. For example:

SSH:152

PSH:153

NOTE: Only one OS type per credential is supported.

If you are monitoring CDB instances, you should have selected the Oracle System Identifier (SID) connect type in your database credential. Type SID:<Oracle Instance SID>:DB_CID:<Credential ID>:CDB:True. For example:

SID:SL121:DB_CID:122:CDB:True

If you are monitoring PDB instances, you should have selected the SERVICE connect type in your database credential. Type PDB:<PDB Service Name>:DB_CID:<Credential ID>:CDB:<Parent Oracle Instance SID>. For example:

PDB:PDB121:DB_CID:123:CDB:SL121

If you are monitoring non-CDB instances, you should have selected the Oracle System Identifier (SID) connect type in your database credential. Type SID:<Oracle Instance SID>:DB_CID:<Credential ID>. For example:

SID:NCDB121:DB_CID:124

The HOST keyword and support for using a secondary IP to connect to an instance is not applicable on a multi tenant environment that doesn't share the same credential.

NOTE: For example HTTP headers when discovering PDBs in multiple CDBs, see the Example HTTP Headers to Discover PDBs in Multiple CDBs section.

If your tnsnames.ora file is located in a custom path, enter the path in a header after a DB_CID or PORT entry in a header. For example:

SID:SL121:DB_CID:141:TNS_ADMIN:/example/file/path

SID:SL121:DB_CID:141:TNS_ADMIN:/example/file/path:CDB:True

Do not end the HTTP header with a backslash.

NOTE: If your tnsnames.ora file is located in a custom path, you must setup the environment variable on the oracle server by using the following command, replacing the command with your tnsname.ora file path: export TNS_ADMIN=INSERT_FILE_PATH

Click Save & Close.

Creating a SOAP/XML Credential in the Classic SL1 User Interface

To create the SOAP/XML credential:

Go to the Credential Management page (System > Manage > Credentials).

Click the wrench icon () for either the "Oracle: DB Example" credential for Windows users. The Credential Editor modal page appears:

Update the values in the following fields:

Basic Settings

Profile Name. Type a new name for the credential.

URL. Leave the default value of https://%D.
HTTP Auth User. Type the username for the Oracle Database account. If you created a database credential, this field is not required.
HTTP Auth Password. Type the password for the Oracle Database account. If you created a database credential, this field is not required.

HTTP Headers

HTTP Headers. Add the following headers by clicking + Add a header and see the following workflow that describes header formats based on the Oracle devices that you are monitoring:

A header should be added for each Oracle Database instance you are monitoring.

If you are using version 103 of the PowerPack, you can format the header as follows, SID: <Oracle Instance SID>:PORT<Oracle Instance Port that is listening for DB requests>. For example:

SID:SL121:PORT:22

If you are using version 103 of the PowerPack and discovering ASM instances, the entire ASM name must be included in the header field. For example, if an ASM instance is named "+ASM1" and your credential ID is 112, you should enter the following headers:

SSH:112

SID:+ASM1:PORT:1521

SID:+ASM1:DB_CID:123

SERVICE_NAME: <Service Name acts as an alias to SID>:PORT:<Oracle Instance Port that is listening for DB requests>. For example:

SERVICE_NAME:SL121:PORT:1521

NOTE: If the SERVICE_NAME is different than the SID, discovery will not work.

If a host, or IP address, for the Oracle: Database is assigned to a different IP address from the server, you must add an additional header to the SOAP credential.

If each Oracle database instance is registered to an IP address, add a header for host in addition to SID and port. The PowerPack will connect the host IP addresses to the respective Oracle database instance. For example:

Ex - sid:<>:port<>:host:<>

If all Oracle database instances are registered to a single IP address that is different from the server, add a header with only the host information. This header will force the PowerPack to use the host IP address to connect to all Oracle database instances. For example:

HOST:<>

If no host is provided in the header, the PowerPack will use the root IP address or the server IP address to connect to all Oracle database instances.

NOTE: Only the SIDs listed in the credential will be discovered.

<OS_TYPE>:<CRED_ID>. The OS type and ID of the SSH/Key credential or PowerShell credential you created. For OS type, enter SSH for Linux or PSH for Windows. For example:

SSH:152

PSH:153

NOTE: Only one OS type per credential is supported.

If you are monitoring CDB instances, you should have selected the Oracle System Identifier (SID) connect type in your database credential. Type SID:<Oracle Instance SID>:DB_CID:<Credential ID>:CDB:True. For example:

SID:SL121:DB_CID:122:CDB:True

If you are monitoring PDB instances, you should have selected the SERVICE connect type in your database credential. Type PDB:<PDB Service Name>:DB_CID:<Credential ID>:CDB:<Parent Oracle Instance SID>. For example:

PDB:PDB121:DB_CID:123:CDB:SL121

If you are monitoring non-CDB instances, you should have selected the Oracle System Identifier (SID) connect type in your database credential. Type SID:<Oracle Instance SID>:DB_CID:<Credential ID>. For example:

SID:NCDB121:DB_CID:124

The HOST keyword and support for using a secondary IP to connect to an instance is not applicable on a multi tenant environment that doesn't share the same credential.

NOTE: For example HTTP headers when discovering PDBs in multiple CDBs, see the Example HTTP Headers to Discover PDBs in Multiple CDBs section.

If your tnsnames.ora file is located in a custom path, enter the path in a header after a DB_CID or PORT entry in a header. For example:

SID:SL121:DB_CID:141:TNS_ADMIN:/example/file/path

SID:SL121:DB_CID:141:TNS_ADMIN:/example/file/path:CDB:True

Do not end the HTTP header with a backslash.

Click the Save As button.

Example HTTP Headers to Discover PDBs in Multiple CDBs

This example describes the HTTP headers that you can use in a SOAP/XML credential to discover PDBs in multiple CDBs. The following credential and database values are used for this example:

Credential or Database	Example Value
SL1 Database Credential ID	24
Linux Server Address	192.0.2.96
Non-CDB Instance	NONCDB96
First CDB Instance	CDB96
PDB Instances in First CDB Instance	PDB1 PDB2
Second CDB Instance	CDB96_SL
PDB Instances in Second CDB Instance	PDB1 PDB2SL

To monitor the Oracle database example values listed above, the following HTTP headers would be entered in the SOAP/XML credential:

SID:NONCDB96:DB_CID:24
SID:CDB96:DB_CID:24:CDB:True
PDB:PDB1:DB_CID:24:CDB:CDB96
SID:CDB96_SL:DB_CID:24:CDB:True
PDB:PDB1:DB_CID:24:CDB:CDB96_SL
PDB:PDB2SL:DB_CID:24:CDB:CDB96_SL

NOTE: For more information on creating a SOAP/XML credential, see the Creating a SOAP/XML Credential section.

Example Credential Images

See the following SOAP/XML and database credential examples for example header that you can use to create credentials to meet your organization's needs.

See the following example SOAP/XML credential to discover a CDB with PDBs in a RAC instance:

See the following example SOAP/XML credential to discover a CDB with PDBs and a Non-CDB with TNS_ADMIN:

See the following example SOAP/XML credential to discover a CDB with PDBs and a Non-CDB on the same server:

See the following example SOAP/XML credential to discover an ASM instance:

See the following example database credential to discover a CDB or ASM instance:

See the following example database credential to discover a PDB:

Enabling PEM on a Linux Machine

Linux and Unix users can create an SSH/Key credential in order to monitor Oracle Database instances in SL1. The Private Key (PEM Format) field may be filled when creating an SSH/Key credential. To enable PEM on a Linux machine, perform the following steps:

Create a PEM folder to place the identity keys.

ScienceLogic suggests that you create a PEM folder inside the .ssh folder of the user that will use the PEM authentication.

Run the following command on your Linux machine to create the SSH key. This command will create public and private keys:

ssh-keygen -b 2048 -f identity - t rsa

The value "identity" in the command above will be the name of the file that is generated. This value can be replaced with any file name.

The private key generated from this command is the .pem file needed for the SSH/Key credential. Copy the contents of the file to input into the SL1 credential.
Add the generated public key to the authorized_keys file that is found in ~/.ssh/authorized_keys manually or by using the following command:

cat identity.pub >> ~/.ssh/authorized_keys

Restart the SSH service by running the following command:

sudo service ssh restart

After completing the steps above, you can create an SSH/Key credential in SL1 by entering your Linux server username, Linux server password, and private key. If you would like to create an SSH/Key credential by entering only your Linux server username and private key, perform the following steps on your Linux machine:

Find the sshd_config file.
Find the PasswordAuthentication command line, delete yes, and input no.
Restart the SSH service by running the following command:

sudo service ssh restart

Discovering Oracle Database Instances

To create and run a discovery session that will discover an Oracle instance, perform the following steps:

On the Devices page () or the Discovery Sessions page (Devices > Discovery Sessions), click the Add Devices button. The Select page appears:

Click the Unguided Network Discovery button. Additional information about the requirements for discovery appears in the General Information pane to the right.

Click Select. The Add Devices page appears:

Complete the following fields:

Name. Type a unique name for this discovery session. This name is displayed in the list of discovery sessions on the Discovery Sessions tab.
Description. Optional. Type a short description of the discovery session. You can use the text in this description to search for the discovery session on the Discovery Sessions tab.
Select the organization to add discovered devices to. Select the name of the organization to which you want to add the discovered devices.

Click Next. The Credentials page of the Add Devices wizard appears:

On the Credentials page, select the SOAP/XML credential you created.

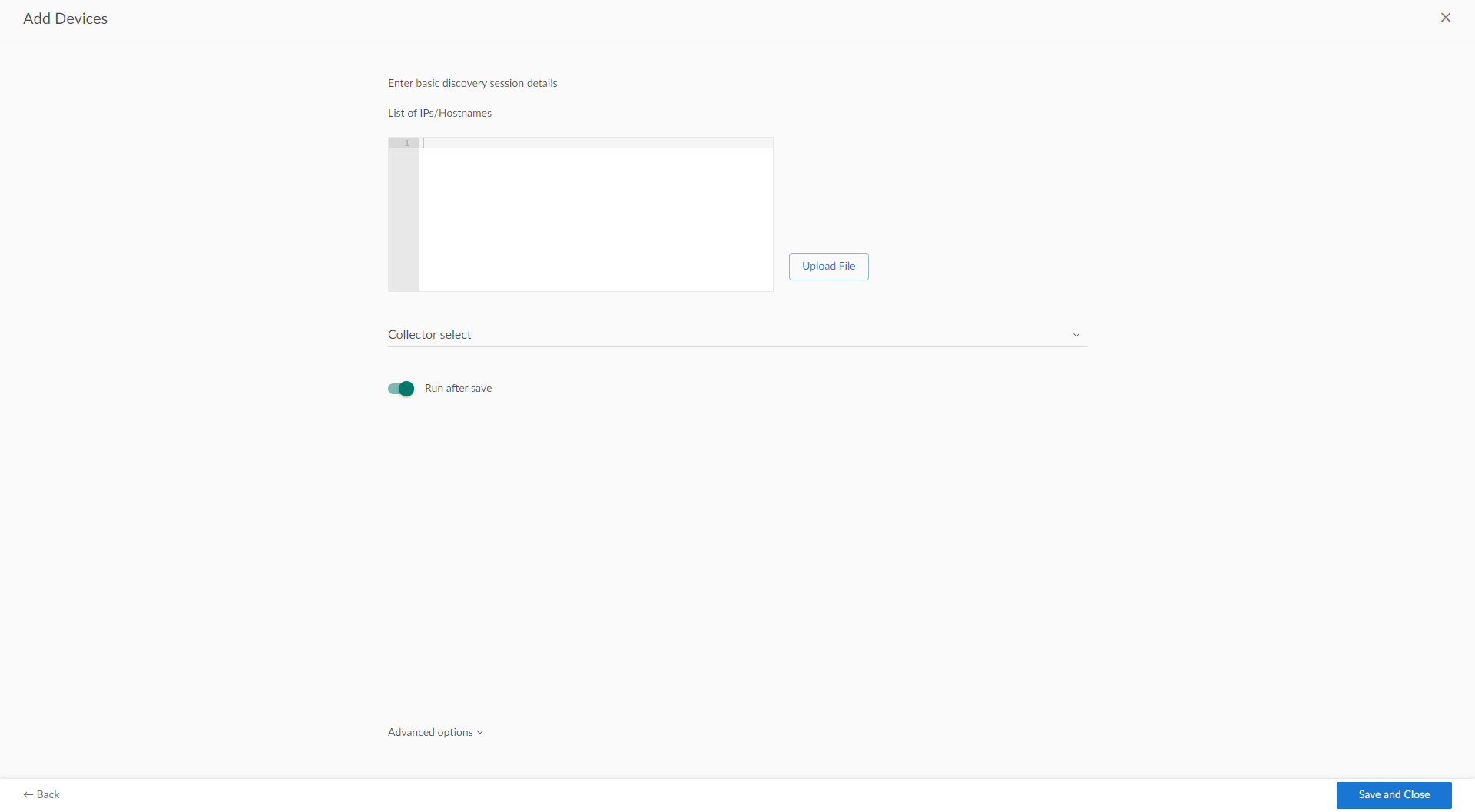

Click Next. The Discovery Session Details page of the Add Devices wizard appears:

Complete the following fields:

List of IPs/Hostnames. Type the IP address for the server that is hosting your Oracle Database.

Which collector will monitor these devices?. Select an existing collector to monitor the discovered devices. Required.
Run after save. Select this option to run this discovery session as soon as you click Save and Close.

In the Advanced options section, click the down arrow icon () to complete the following fields:

Discover Non-SNMP. Enable this setting.

Model Devices. Enable this setting.

Click Save and Close to save the discovery session. The Discovery Sessions page (Devices > Discovery Sessions) displays the new discovery session.
If you selected the Run after save option on this page, the discovery session runs, and the Discovery Logs page displays any relevant log messages. If the discovery session locates and adds any devices, the Discovery Logs page includes a link to the Device Investigator page for the discovered device.

Discovering Oracle Database Instances in the SL1 Classic User Interface

To model and monitor your Oracle Database instances, you must run a discovery session. To create and run a discovery session that will discover your Oracle Database instances, perform the following steps:

Go to the Discovery Control Panel page (System > Manage > Classic Discovery).

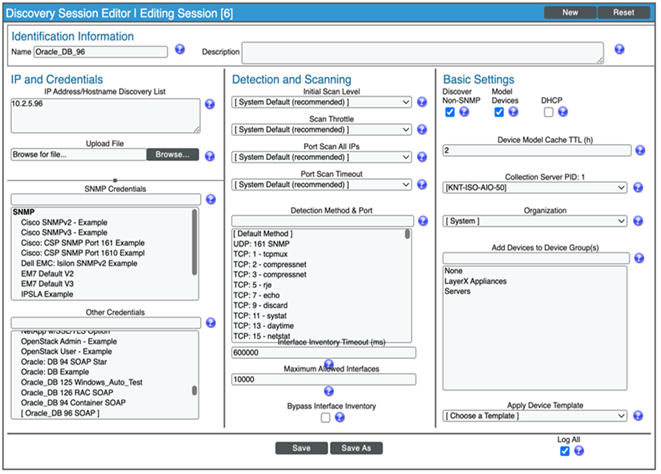

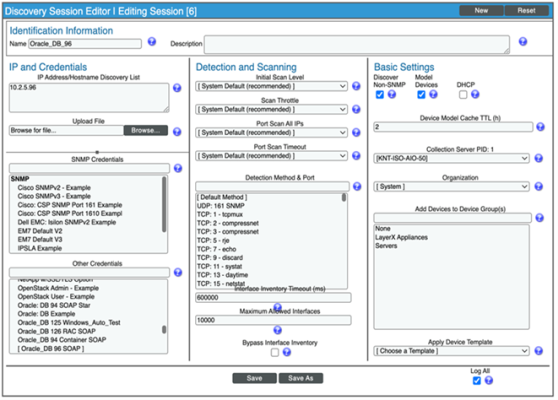

Click the Create button to create a new discovery session. The Discovery Session Editor window appears:

Enter values in the following fields:

IP Address Discovery List. Type the IP address for the server that is hosting your Oracle Database. One discovery session per server is supported. The IP address can be assigned to a different IP address than the server.

Other Credentials. Select the SOAP/XML credential that you configured in the previous section.
Discover Non-SNMP. Select this checkbox.
Model Devices. Select this checkbox.

You can enter values in the other fields on this page, but are not required to and can simply accept the default values. For more information about the other fields on this page, see the Discovery & Credentials section.
Click the Save button and then close the Discovery Session Editor window.
The discovery session you created will appear at the top of the Discovery Control Panel page. Click its lightning-bolt icon () to run the discovery session.
The Discovery Session window will be displayed.
When the server that is hosting the Oracle Database is discovered, click its device icon () to view the Device Properties page for that device.

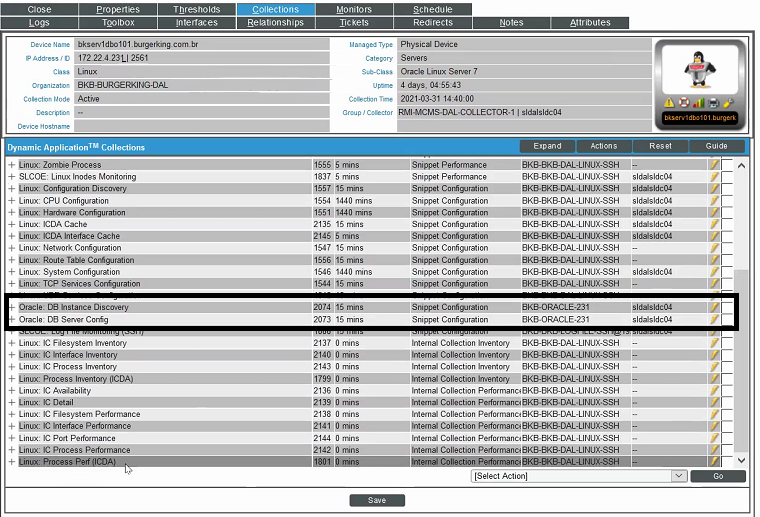

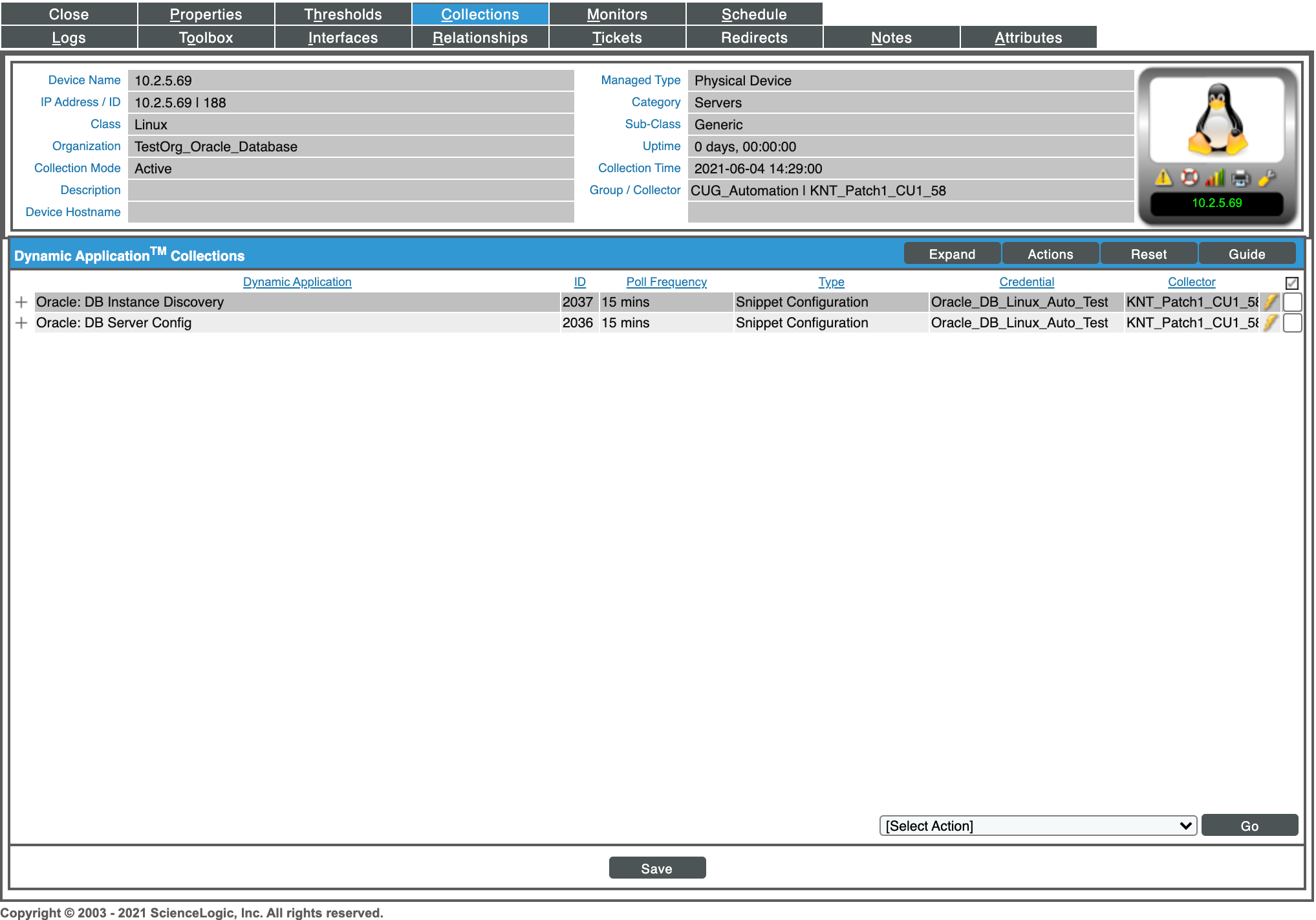

After the server hosting the Oracle Database is discovered, the "Oracle: DB Instance Discovery" Dynamic Application will automatically be aligned. This Dynamic Application will discover the Oracle Database instances which will appear in the Device Manager page.

NOTE: If you are on a Windows system and are having issues with discovery, please see the Monitoring Windows Systems with PowerShell section.

Verifying Discovery and Dynamic Application Alignment

During discovery, SL1 will discover the root device then the Database instance. All applicable Dynamic Applications will be aligned to the component.

To verify alignment of the Oracle Database Dynamic Applications:

After discovery has completed, click the device icon for the Oracle device (). From the Device Properties page for the Oracle device, click the Collections tab. The Dynamic Application Collections page appears.

It can take two to three polling cycles after the discovery session has completed for Dynamic Applications to appear in the Dynamic Application Collections page.

All applicable Dynamic Applications are automatically aligned to the root device and component devices during discovery:

You should see the following Dynamic Applications aligned to the root device:

Oracle: DB Instance Discovery
Oracle: DB Server Config

Using an Oracle PP on an existing Linux device will not interfere with the historical data on the device. Instead, the Oracle will align at the root with the other Linux Dynamic Applications.

You should see the following Dynamic Applications aligned to non-CDB Oracle Database instances:

Oracle: DB Archived File System Stats
Oracle: DB Blocking Session
Oracle: DB Chained Rows Stats
Oracle: DB Components Status Config
Oracle: DB Data Guard Gap Stats
Oracle: DB Database Size Stats
Oracle: DB Instance Config
Oracle: DB Instance Invalid Object Stats
Oracle: DB Integrity Metrics Stats

NOTE: The Oracle: DB Integrity Metrics Stats Dynamic Application uses the prior() function which requires SL1 version 8.14.2 or newer.

Oracle: DB Log Alerts Config

NOTE: The Oracle: DB Log Alerts Config Dynamic Application requires that the database administrator grant SELECT privileges in the v$diag_alert_text to the monitoring user.

Oracle: DB Logswitch Rate Stats
Oracle: DB Long Running Session
Oracle: DB Non-Archived File System Stats
Oracle: DB Open Cursors per Session Stats
Oracle: DB Performance Stats

Oracle: DB Resource Stats
Oracle: DB RMAN Backup Status Config
Oracle: DB Session Stats
Oracle: DB Tablespace Stats
Oracle: DB Tablespace Temp Stats
Oracle: DB Tablespaces and Datafiles Status Config

NOTE: If you discovered a non-CDB in a Windows instance, the "Oracle: DB Archived File System Stats" and "Oracle:DB Non-Archived File System Stats" Dynamic Applications will not be aligned.

You should see the following Dynamic Applications aligned to Non-CDB RAC Oracle Database instances on Linux and Solaris Systems:

Oracle: DB Archived File System Stats
Oracle: DB Chained Rows Stats
Oracle: DB Components Status Config
Oracle: DB Data Guard Gap Stats
Oracle: DB Database Size Stats
Oracle: DB Instance Invalid Object Stats
Oracle: DB Instance Config
Oracle: DB Integrity Metrics Stats

NOTE: The Oracle: DB Integrity Metrics Stats Dynamic Application uses the prior() function which requires SL1 version 8.14.2 or newer.

Oracle: DB Log Alerts Config

NOTE: The Oracle: DB Log Alerts Config Dynamic Application requires that the database administrator grant SELECT privileges in the v$diag_alert_text to the monitoring user.

Oracle: DB Logswitch Rate Stats
Oracle: DB Non-Archived File System Stats
Oracle: DB Open Cursors per Session Stats
Oracle: DB Performance Stats

Oracle: DB RAC Disk Group Space Stats
Oracle: DB RAC Flash Recovery Stats
Oracle: DB RAC Global Cache Stats

NOTE: The Oracle RAC Dynamic Applications will only be aligned on RAC systems.

Oracle: DB Resource Stats
Oracle: DB RMAN Backup Status Config
Oracle: DB Session Stats
Oracle: DB Tablespace Stats
Oracle: DB Tablespace Temp Stats
Oracle: DB Tablespaces and Datafiles Status Config

You should see the following Dynamic Applications aligned to Non-CDB RAC Oracle Database instances on Windows Systems:

Oracle: DB Chained Rows Stats
Oracle: DB Components Status Config
Oracle: DB Data Guard Gap Stats
Oracle: DB Database Size Stats
Oracle: DB Instance Config
Oracle: DB Instance Invalid Object Stats
Oracle: DB Integrity Metrics Stats

NOTE: The Oracle: DB Integrity Metrics Stats Dynamic Application uses the prior() function which requires SL1 version 8.14.2 or newer.

Oracle: DB Log Alerts Config

NOTE: The Oracle: DB Log Alerts Config Dynamic Application requires that the database administrator grant SELECT privileges in the v$diag_alert_text to the monitoring user.

Oracle: DB Logswitch Rate Stats
Oracle: DB Open Cursors per Session Stats
Oracle: DB Performance Stats

Oracle: DB RAC Disk Group Space Stats
Oracle: DB RAC Flash Recovery Stats
Oracle: DB RAC Global Cache Stats

NOTE: The Oracle RAC Dynamic Applications will only be aligned on RAC systems.

Oracle: DB Resource Stats
Oracle: DB RMAN Backup Status Config
Oracle: DB Session Stats
Oracle: DB Tablespace Stats
Oracle: DB Tablespace Temp Stats
Oracle: DB Tablespaces and Datafiles Status Config

You should see the following Dynamic Applications aligned to CDB root device (non-RAC) instances:

Oracle: DB Archived File System Stats
Oracle: DB Non-Archived File System Stats
Oracle: DB Instance Config
Oracle: DB RMAN Backup Status Config
Oracle: DB PDB Discovery

You should see thee following Dynamic Applications aligned to CDB with RAC instances:

Oracle: DB Archived File System Stats
Oracle: DB Non-Archived File System Stats
Oracle: DB Instance Config
Oracle: DB RAC Disk Group Space Stats
Oracle: DB RAC Flash Recovery Stats
Oracle: DB RAC Global Cache Stats
Oracle: DB RMAN Backup Status Config
Oracle: DB PDB Discovery

You should see the following Dynamic Applications aligned to ASM Oracle Database instances:

Oracle: DB ASM Diskgroup Config
Oracle: DB ASM Instance Config
Oracle: DB Instance Config
Oracle: DB RMAN Backup Status Config

You should see the following Dynamic Applications aligned to PDB Oracle Database instances:

Oracle: DB Archived File System Stats
Oracle: DB Blocking Session
Oracle: DB Non-Archived File System Stats
Oracle: DB Instance Config
Oracle: DB Chained Row Stats
Oracle: DB Data Guard Gap Stats
Oracle: DB Database Size Stats
Oracle: DB Instance Invalid Object Stats
Oracle: DB Integrity Metrics Stats
Oracle: DB Logswitch Rate Stats
Oracle: DB Long Running Session
Oracle: DB Open Cursors per Session Stats
Oracle: DB Performance Stats
Oracle: DB Resource Stats
Oracle: DB Session Stats
Oracle: DB Tablespace Stats
Oracle: DB Tablespace Temp Stats
Oracle: DB Components Status Config
Oracle: DB Log Alerts Config
Oracle: DB Tablespaces and Datafiles Status Config

Snippet and Snippet Argument Configuration for New Oracle Dynamic Applications

You can configure snippets and snippet arguments in Oracle: Database Dynamic Applications to run SQL queries.

Snippet arguments can be used for simple queries consisting of only SELECT and WHERE. Complex queries must be defined in the snippet.

Running SQL Queries from Snippet Arguments

In the Collections tab of the a Dynamic Application, you can select a collection object in the Collection Object Registry and edit the argument in the Snippet Arguments field.

For example, using the collection objects from the "Oracle: DB Performance Stats" Dynamic Application:

Snippet argument without a filter:

oracle://&silo_args=column=<column_name>&table=<table_name>

Snippet argument with a filter:

oracle://&silo_args=column=<column_name>&table=<table_name>&filter=<where clause>

Example:

oracle://&silo_args=column=name&table=my_table&filter=name LIKE '%abc%' AND id != 0

NOTE: Spaces can be used in any of the arguments if necessary. Column should name a single column only.

Queries are consolidated into a single SQL query for each table. If you want to separate the queries, use the following format:

oracle://&silo_args=column=name&table=my_table a_names&filter=name LIKE 'a%'

oracle://&silo_args=column=name&table=my_table b_names&filter=name LIKE 'b%'

Running Raw SQL Queries from the Snippet

You can run raw SQL queries in the snippets in Dynamic Applications by going to the Snippets tab and selecting the snippet from the Snippet Registry:

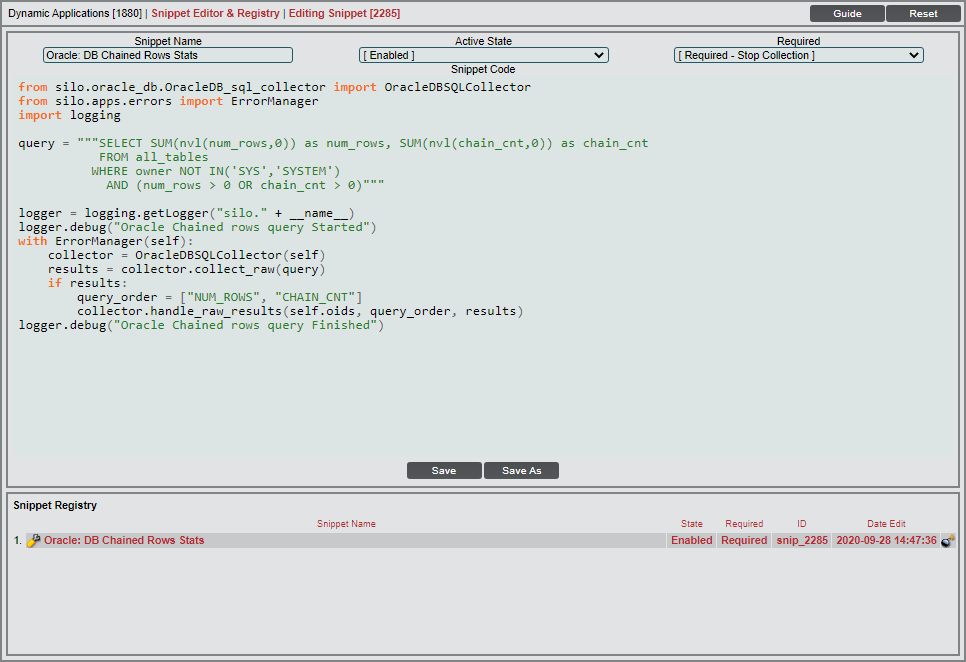

In the "Oracle: DB Chained Rows Stats" Dynamic Application, you can edit the snippet to include a raw SQL query in the following way:

from silo.oracle_db.OracleDB_sql_collector import OracleDBSQLCollector

from silo.apps.errors import ErrorManager

import logging

query = """SELECT X, Y FROM table"""

with ErrorManager(self):

collector = OracleDBSQLCollector(self)

results = collector.collect_raw(query)

if results:

query_order = ["X", "Y"] #

collector.handle_raw_results(self.oids, query_order, results)

X and Y are collection object OIDs, in the order corresponding to the query column names.

Indexed Raw SQL Query

You can run indexed SQL queries in the snippets in Dynamic Applications by going to the Snippets tab and selecting the snippet from the Snippet Registry.

For example, in the "Oracle: DB Tablespaces and Datafiles Status Config" Dynamic Application, you can edit the snippet to include an indexed SQL query in the following way:

from silo.oracle_db.OracleDB_sql_collector import OracleDBSQLCollector

from silo.apps.errors import ErrorManager

import logging

query = """SELECT x, x, y FROM table""" #<-The first column is the index; it is ok to repeat a column

with ErrorManager(self):

collector = OracleDBSQLCollector(self)

results = collector.collect_raw(query)

if results:

query_order = ["X", "Y"]

collector.handle_raw_results(self.oids, query_order, results, indexed=True)

X and Y are collection object OIDs, in the order corresponding to the query column names, not including the index column.

Running Combined Raw SQL Queries and Snippet Arguments

If snippet arguments and raw queries are combined in a single Dynamic Application, the snippet argument code must be executed first. The following example was added to the snippet in the "Oracle: DB Session Stats" Dynamic Application:

with ErrorManager(self):

collector = OracleDBSQLCollector(self)

# Collect snippet arg results

collector.collect()

collector.handle_results()

# Collect raw query results

results = collector.collect_raw(query)

if results:

collector.handle_raw_results(self.oids, query_order, results)

Running SSH Commands from a Snippet

You can run SSH commands the snippets in Dynamic Applications by going to the Snippets tab and selecting the snippet from the Snippet Registry.

For example, in the "Oracle: DB Non-Archived File System Stats" Dynamic Application, you can edit the snippet to include an SSH command in the following way:

ssh.append("your_ssh_command")

ssh_results = ssh_collector.run_commands(ssh)

Viewing Oracle Component Devices

In addition to the Devices page, you can view the Oracle Database and all associated component devices in the following places in the user interface:

The Device Investigator Map page (click Map in the Device Investigator page) displays a map of a particular device and all of the devices with which it has parent-child relationships. Double-clicking any of the listed devices reloads the page to make the selected device the primary device.

The Device Components page (Devices > Device Components) displays a list of all root devices and component devices discovered by SL1. The Device Components page displays all root devices and component devices in an indented view, so you can easily view the hierarchy and relationships between child devices, parent devices, and root devices. To view the component devices associated with an Oracle Database, find the Oracle Database and click its plus icon (+).

The Component Map page (Classic Maps > Device Maps > Components) allows you to view devices by root node and view the relationships between root nodes, parent components, and child components in a map. This makes it easy to visualize and manage root nodes and their components. SL1 automatically updates the Component Map as new component devices are discovered. The platform also updates each map with the latest status and event information. To view the map for an Oracle Database, go to the Component Map page and select the map from the list in the left NavBar. To learn more about the Component Map page, see the section on Views.

Viewing Oracle Component Devices in the Classic SL1 User Interface

In addition to the Device Manager page (Registry > Devices > Device Manager), you can view the Oracle Database instances and all associated component devices in the following places in the user interface:

The Device View modal page (click the bar-graph icon [] for a device, then click the Topology tab) displays a map of a particular device and all of the devices with which it has parent-child relationships. Double-clicking any of the devices listed reloads the page to make the selected device the primary device.

The Device Components page (Registry > Devices > Device Components) displays a list of all root devices and component devices discovered by SL1 in an indented view, so you can easily view the hierarchy and relationships between child devices, parent devices, and root devices. To view the component devices associated with an Oracle Database instance, find the Oracle device and click its plus icon (+).

The Component Map page (Classic Maps > Device Maps > Components) allows you to view devices by root node and view the relationships between root nodes, parent components, and child components in a map. This makes it easy to visualize and manage root nodes and their components. SL1 automatically updates the Component Map as new component devices are discovered. The platform also updates each map with the latest status and event information. To view the map for an Oracle Database instance, go to the Component Map page and select the map from the list in the left NavBar. To learn more about the Component Map page, see the section on Views.
