Installing and Configuring SL1 PowerFlow



This section describes how to install, upgrade, and configure PowerFlow, and also how to set up security for PowerFlow.

PowerFlow Architecture

This topic describes the different aspects of PowerFlow architecture.

PowerFlow Container Architecture

PowerFlow is a collection of purpose-built containers that are charged to pass information to and from SL1. Building PowerFlow architecture in containers allows you to add more processes to handle the workload as needed.

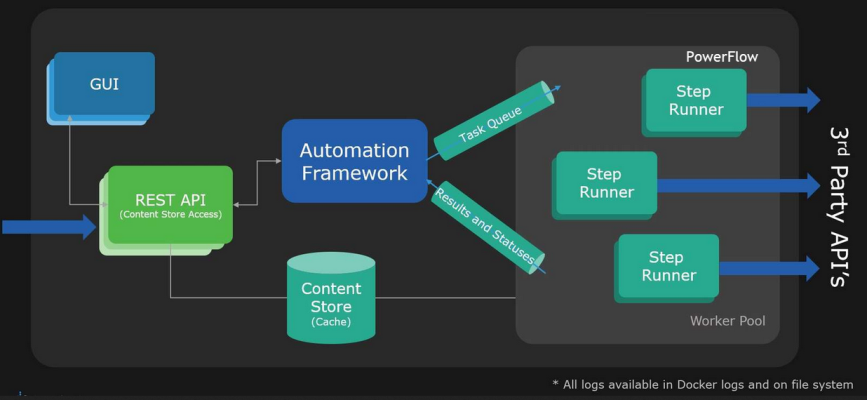

The following diagram describes the container architecture for PowerFlow:

PowerFlow includes the following containers:

• GUI. The GUI container provides the user interface for PowerFlow.
• REST API. The REST API container provides access to the Content Store on the PowerFlow instance.
• Content Store. The Content Store container is basically a database service that contains all the reusable steps, applications, and containers in the PowerFlow instance.
• Step Runners. Step Runner containers execute steps independently of other Step Runners. All Step Runners belong to a Worker Pool and can run steps in order, based on the instructions in the applications. By default there are five Step Runners (worker nodes) include in the PowerFlow platform. PowerFlow users can scale up or scale down the number of worker nodes, based on the workload requirements.

You can use the Control Tower page in the PowerFlow user interface to monitor the health of these containers and workers. For more information, see Using the SL1 PowerFlow Control Tower Page.

Integration Workflow

The following high-level diagram for a ServiceNow Integration provides an example of how PowerFlow communicates with both the SL1 Central Database and the third-party (ServiceNow) APIs:

The workflow includes the following components and their communication methods:

• SL1 Central Database. PowerFlow communicates with the SL1 database over port 7706.
• SL1 REST API. PowerFlow communicates with the SL1 REST API over port 443.
• GraphQL. PowerFlow communicates with GraphQL over port 443.
• ServiceNow Base PowerPack. In this example, the Run Book Automations from the ServiceNow Base PowerPack (and other SL1 PowerPacks) communicate with PowerFlow over port 443.
• PowerFlow. PowerFlow communicates with both the SL1 Central Database and an external endpoint.
• ServiceNow API. In this example, the ServiceNow applications in PowerFlow communicate with the ServiceNow API over port 443.

PowerFlow both pulls data from SL1 and has data pushed to it from SL1. PowerFlow both sends and retrieves information to and from ServiceNow, but PowerFlow is originating the requests.

High-Availability, Off-site Backup, and Proxy Architecture

You can deploy PowerFlow as a High Availability cluster, which requires at least three nodes to achieve automatic failover. While PowerFlow can be deployed as a single node, the single-node option does not provide redundancy through High Availability. PowerFlow also supports off-site backup and connection through a proxy server.

The following diagram describes these different configurations:

• High Availability for PowerFlow is a cluster of PowerFlow nodes with a Load Balancer managing the workload. In the above scenario, if one PowerFlow node fails, the workload will be redistributed to the remaining PowerFlow nodes. High Availability provides local redundancy. For more information, see Appendix A: Configuring PowerFlow for High Availability.
• Off-site Backup can be configured by using PowerFlow to back up and recover data in the Couchbase database. The backup process creates a backup file and sends that file using Secure Copy Protocol (SCP) to a user-defined, off-site destination system. You can then use the backup file from the remote system and restore its content. For more information, see Creating a Backup.
• A Proxy Server is a dedicated computer or software system running as an intermediary. The proxy server in the above scenario handles the requests between PowerFlow and the third-party application. For more information, see Configuring a Proxy Server.

In addition, you can deploy PowerFlow in a multi-tenant environment that supports multiple customers in a highly available fashion. After the initial High Availability (HA) core services are deployed, the multi-tenant environment differs in the deployment and placement of workers and use of custom queues. For more information, see Appendix B: Configuring PowerFlow for Multi-tenant Environments.

There is no support for active or passive Disaster Recovery. ScienceLogic recommends that your PowerFlow Disaster Recovery plans include regular backups and restoring from backup. For more information, see Creating a Backup.

Reviewing Your Deployment Architecture

Review the following aspects of your architecture before deploying PowerFlow:

1. How many SL1 stacks will you use to integrate with the third-party platform (such as ServiceNow, Cherwell, or Restorepoint)?
2. What is a good estimate of the number of devices across all of your SL1 stacks?
3. How many data centers will you use?
4. Specify the location of each data center.
5. What is the latency between each data center? (Latency must be less than 80 ms.)
6. How many SL1 stacks are in each data center?
7. Are there any restrictions on data replication across regions?
8. What is the location of the third-party platform (if applicable)?
9. What is the VIP for Cluster Node Management?

Based on the above list, ScienceLogic recommends the following deployment paths:

• For question A, if you answered three or fewer SL1 stacks, consider a standard High-Availability deployment. For more information, see Appendix A: Configuring PowerFlow for High Availability.
• For question A, if you answered more than three SL1 stacks to question A, consider configuring PowerFlow in a multi-tenant configuration. For more information, see Appendix B: Configuring PowerFlow for Multi-tenant Environments.
• For question G, if you answered "Yes" to data replication restrictions, consider the following deployment options:

• Deploy separate PowerFlow clusters per region. This deployment requires more management of PowerFlow clusters, but it ensures that the data is completely separated between regions. This deployment also ensures that if a single region goes down, you only lose operations for that region.
• Deploy a single PowerFlow cluster in the restrictive region. This deployment is easier to manage, as you are only dealing with a single PowerFlow cluster. As an example, if Europe has a law that requires that data in Europe cannot be replicated to the United States, but that law does not prevent data from the United States from coming into Europe, you can deploy a single PowerFlow cluster in Europe to satisfy the law requirements.

• If you are deploying a multi-tenant configuration, check to see if your environment meets one the following:

• You have three or more data centers and the latency between each data center is less than 80 ms (question E), consider deploying a multi-tenant PowerFlow where each node is in a separate data center to ensure data center resiliency. This deployment ensures that if a single data center goes down, PowerFlow will remain operational.
• You have only two data centers and the latency between data centers is less than 80 ms, consider deploying a multi-tenant PowerFlow where two nodes are in one data center and the other node is in the other data center. This deployment does not ensure data center resiliency, but it does provide standard High Availability if a single node goes down. If the data center with one node goes down, PowerFlow will remain operational. However, if the data center with two nodes goes down, PowerFlow will no longer remain operational.
• You have only two data centers but the latency between data centers is more than 80 ms. In this situation, you can still deploy a multi-tenant PowerFlow, but all nodes must be located in a single data center. This deployment still provides standard High Availability so that, if a single node goes down, the other two nodes ensure PowerFlow operations. If you require more resiliency than a single-node failure, you can deploy five nodes, which will ensure resiliency with two down nodes. However, if the data center goes down, PowerFlow will not be operational.
• You only have one data center, you can still deploy a multi-tenant PowerFlow, but all nodes are located in a single data center. This deployment still provides standard High Availability so that, if a single node goes down, the other two nodes ensure PowerFlow operations. If you require more resiliency than a single-node failure, you can deploy five nodes, which will ensure resiliency with two down nodes. However, if the data center goes down, PowerFlow will not be operational.

System Requirements

PowerFlow itself does not have specific minimum required versions for SL1 or AP2. However, certain PowerFlow SyncPacks have minimum version dependencies, which are listed on the Dependencies for SL1 PowerFlow SyncPacks page.

Ports

The following table lists the PowerFlow ingress requirements:

Source	Port	Purpose
SL1 host	443	SL1 run book actions and connections to PowerFlow
User client	3141	Devpi access
User client	443	PowerFlow API
User client	5556	Dex Server: enable authentication for PowerFlow
User client	8091	Couchbase Dashboard
User client	15672	RabbitMQ Dashboard
User client	22	SSH access

The following table lists the PowerFlow egress requirements:

Destination	Port	Purpose
SL1 host	7706	Connecting PowerFlow to SL1 Database Server
SL1 host	443	Connecting PowerFlow to SL1 API

Additional Considerations

Review the following list of considerations and settings before installing PowerFlow:

• ScienceLogic highly recommends that you disable all firewall session-limiting policies. Firewalls will drop HTTPS requests, which results in data loss.
• Starting with PowerFlow version 3.0.0, the minimum storage size for the initial partitions is 75 GB. Anything less will cause the automated installation to stop and wait for user input. You can use the tmux application to navigate to the other panes and view the logs. In addition, at 100 GB and above, PowerFlow will no longer allocate all of the storage space, so you will need to allocate the rest of the space based on your specific needs.
• PowerFlow clusters do not support vMotion or snapshots while the cluster is running. Performing a vMotion or snapshot on a running PowerFlow cluster will cause network interrupts between nodes, and will render clusters inoperable.
• The site administrator is responsible for configuring the host, hardware, and virtualization configuration for the PowerFlow server or cluster. If you are running a cluster in a VMware environment, be sure to install open-vm-tools and disable vMotion.
• You can configure one or more SL1 systems to use PowerFlow to sync with a single instance of a third-party application like ServiceNow or Cherwell. You cannot configure one SL1 system to use PowerFlow to sync with multiple instances of a third-party application like ServiceNow or Cherwell. The relationship between SL1 and the third-party application can be either one-to-one or many-to-one, but not one-to-many.
• The default internal network used by PowerFlow services is 172.21.0.1/16. Please ensure that this range does not conflict with any other IP addresses on your network. If needed, you can change this subnet in the docker-compose.yml file.

For more information about system requirements for your PowerFlow environment, see the System Requirements page at the ScienceLogic Support site at https://support.sciencelogic.com/s/system-requirements.

Hardened Operating System

The operating system for PowerFlow is pre-hardened by default, with firewalls configured only for essential port access and all services and processes running inside Docker containers, communicating on a secure, encrypted overlay network between nodes. Please refer to the table, above, for more information on essential ports.

You can apply additional Linux hardening policies or package updates as long as Docker and its network communications are operational.

The PowerFlow operating system is an Oracle Linux distribution, and all patches are provided within the standard Oracle Linux repositories. The patches are not provided by ScienceLogic.

Additional Prerequisites for PowerFlow

To work with PowerFlow, ScienceLogic recommends that you have knowledge of the following:

• Linux and vi (or another text editor).
• Python.
• Postman or another API tool for interacting with the PowerFlow API.
• Couchbase (Community Edition). For more information, see Helpful Couchbase Commands.
• Docker. For more information, see Helpful Docker Commands and https://docs.docker.com/engine/reference/commandline/cli/.

The most direct way of accessing the most recent containers of PowerFlow is by downloading the latest RPM file from the ScienceLogic Support Portal. As a separate option, you can also access the PowerFlow containers directly through Docker Hub. To access the containers through Docker Hub, you must have a Docker Hub ID and enable permissions to pull the containers from Docker Hub. To get permissions, contact your ScienceLogic Customer Success Manager.

Installing PowerFlow

Starting with version 2.3.0, all (Undefined variable: ApplianceNames.IS4) platform releases are suitable for both MUD and non-MUD systems.

Due to the upcoming end of support for Oracle Linux 7, ScienceLogic strongly urges users to upgrade to Oracle Linux 8 (OL8). As such, only the OL8-based package and upgrade path is defined and provided. If you have extenuating circumstances and want to obtain an OL7-based install for PowerFlow 3.0.0, please contact your CSM or ScienceLogic support.

Installing PowerFlow for the First Time

You can install PowerFlow for the first time in the following ways:

• Via ISO to a server on your network
• Via RPM to a cloud-based server

If you are installing PowerFlow in a clustered environment, see Configuring the PowerFlow System for High Availability.

Upgrading an Existing PowerFlow System

• If you are upgrading an existing version of PowerFlow to version 3.0.0 or later, the steps are slightly different, because you will need to convert the operating system to Oracle Linux 8. For more information, see Converting PowerFlow to Oracle Linux 8 (OL8).
• If you are upgrading an existing version of PowerFlow to a version before version 3.0.0, see Upgrading PowerFlow.

The site administrator is responsible for configuring the host, hardware, and virtualization configuration for the PowerFlow server or cluster. If you are running a cluster in a VMware environment, be sure to install open-vm-tools and disable vMotion.

Installing PowerFlow via ISO

Due to the upcoming end of support for Oracle Linux 7, ScienceLogic strongly urges users to upgrade to Oracle Linux 8 (OL8). As such, only the OL8-based package and upgrade path is defined and provided. If you have extenuating circumstances and want to obtain an OL7-based install for PowerFlow 3.0.0, please contact your CSM or ScienceLogic support.

Locating the ISO Image

To locate the PowerFlow ISO image:

1. Go to the ScienceLogic Support site at https://support.sciencelogic.com/s/.
2. Click the Product Downloads tab and select PowerFlow Platform. The PowerFlow page appears.
3. Click the link to the current release. The Release Version page appears.
4. In the Release Files section, click the ISO link for the PowerFlow image. A Release File page appears.
5. Click Download File at the bottom of the Release File page.

Installing from the ISO Image

When installing PowerFlow from an ISO, you can now install open-vm-tools by selecting Yes to "Installing Into a VMware Environment" option during the installation wizard.

To install PowerFlow via ISO image:

1. Download the latest PowerFlow ISO file to your computer or a virtual machine center.

2. Using your hypervisor or bare-metal (single-tenant) server of choice, mount and boot from the PowerFlow ISO. The PowerFlow Installation window appears:

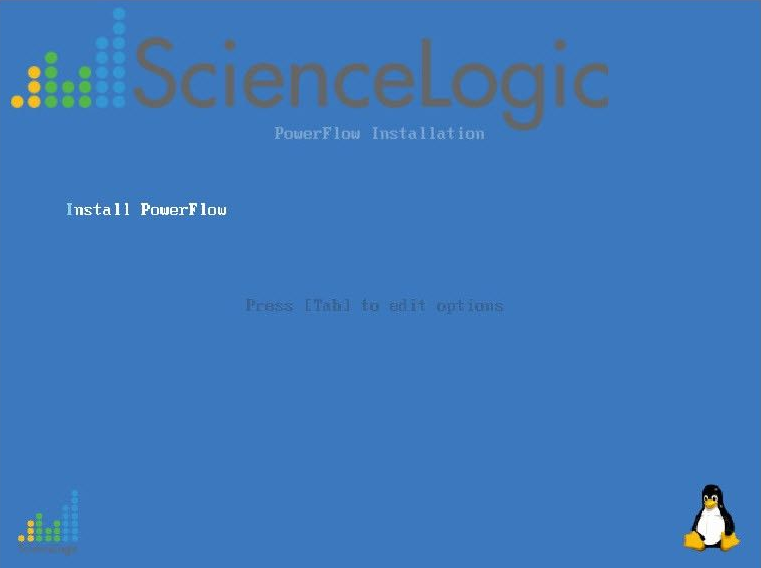

3. Select Install PowerFlow. The Military Unique Deployment window appears.

4. Select Yes only if you require a Military Unique Deployment (MUD) of the PowerFlow system. In most situations, you would select the default option of No. After the installer loads, the Network Configuration window appears.

5. Complete the following fields:

   • IP Address. Type the primary IP address of the PowerFlow server.
   • Netmask. Type the netmask for the primary IP address of the PowerFlow server.
   • Gateway. Type the IP address for the network gateway.
   • DNS Server. Type the IP address for the primary nameserver.
   • Hostname. Type the hostname for PowerFlow.

5. Press Continue. The Root Password window appears.

6. Type the password you want to set for the root user on the PowerFlow host (and the service account password) and press Enter. The password must be at least six characters and no more than 24 characters, and all special characters are supported except the dollar sign ($) character.

   You use this password to log into the PowerFlow user interface, to SSH to the PowerFlow server, and to verify API requests and database actions. This password is set as both the "Linux host isadmin" user and in the /etc/iservices/is_pass file that is mounted into the PowerFlow stack as a "Docker secret". Because it is mounted as a secret, all necessary containers are aware of this password in a secure manner. For more information, see Changing the PowerFlow Password.

   To avoid authentication issues, do not use the dollar sign ($) character as the first character in any of the passwords related to PowerFlow. You can use the $ character elsewhere in the password if needed.

7. Type the password for the root user again and press Enter. The PowerFlow installer runs, and the system reboots automatically. This process will take a few minutes.

8. After the installation scripts run and the system reboots, SSH into your system using PuTTY or a similar application. The default username for the system is isadmin.

9. To start the Docker services, change directory to run the following commands:

   cd /opt/iservices/scripts

   ./pull_start_iservices.sh



   This process will take a few minutes to complete.

10. To validate that iservices is running, run the following command to view each service and the service versions for services throughout the whole stack:

    docker service ls

11. Navigate to the PowerFlow user interface using your browser. The address of the PowerFlow user interface is:

    https://<IP address entered during installation>


12. Log in with the default username of isadmin and the password you specified in step 6.

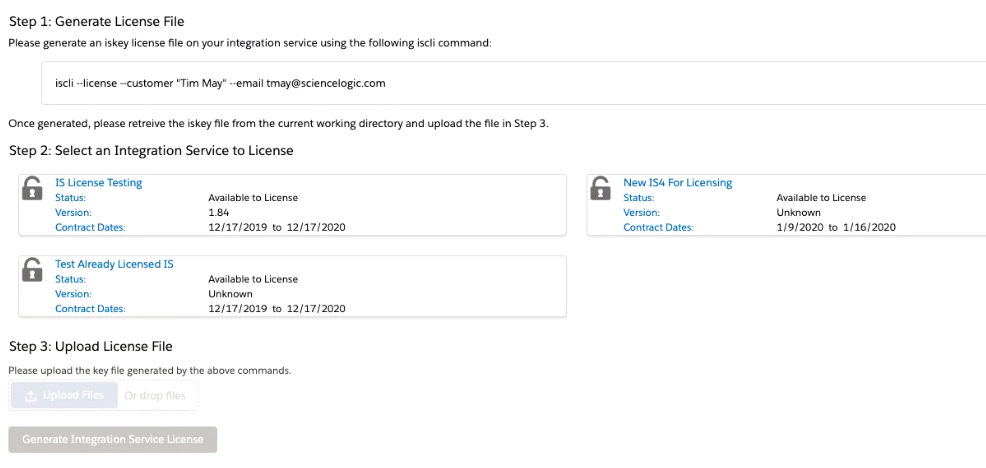

13. After installation, you must license your PowerFlow system if you want to enable all of the features. For more information, see Licensing PowerFlow.

    If you are licensing a PowerFlow High Availability cluster, you can run the licensing process on any node in the cluster once the cluster is ready. The node does not have to be the leader, and the licensing process does not have to be run on all nodes in the Swarm. If you are setting up High Availability for the PowerFlow on a multiple-node cluster, see Preparing the PowerFlow System for High Availability.

    The HOST_ADDRESS value in the /etc/iservices/isconfig.yml file should be the fully qualified domain name (FQDN) of either the host if there is no load balancer, or the FQDN of the load balancer if one exists. If you change the HOST_ADDRESS value, you will need to restart the PowerFlow stack.

Troubleshooting the ISO Installation

To verify that your stack is deployed, view your Couchbase logs by executing the following command:

docker service logs --follow iservices_couchbase

If no services are found to be running, run the following command to start them:

docker stack deploy -c docker-compose.yml iservices

To add or remove additional workers, run the following command:

docker service scale iservices_steprunner=10



Installing PowerFlow via RPM to a Cloud-based Environment

Due to the upcoming end of support for Oracle Linux 7, ScienceLogic strongly urges users to upgrade to Oracle Linux 8 (OL8). As such, only the OL8-based package and upgrade path is defined and provided. If you have extenuating circumstances and want to obtain an OL7-based install for PowerFlow PowerFlow 3.0.0 and later, please contact your CSM or ScienceLogic support.

Considerations for the RPM Installation

• The PowerFlow version 3.0.0 and later RPM is OL8-based. As a result, you cannot install the PowerFlow PowerFlow 3.0.0 and later RPM in an OL7 environment.
• If you install the PowerFlow PowerFlow 3.0.0 and later RPM on any operating system other than Oracle Linux 8, ScienceLogic will only support the running application and associated containers. ScienceLogic will not assist with issues related to host configuration for operating systems other than Oracle Linux 8 (or Oracle Linux 7 for systems before PowerFlow version PowerFlow 3.0.0 and later).
• If you are deploying PowerFlow without a load balancer, you can only use the deployed IP address as the management user interface. If you use another node to log in to the PowerFlow system, you will get an internal server error. Also, if the deployed node is down, you must redeploy the system using the IP address for another active node to access the management user interface.
• The HOST_ADDRESS value in the /etc/iservices/isconfig.yml file should be the fully qualified domain name (FQDN) of either the host if there is no load balancer, or the FQDN of the load balancer if one exists. If you change the HOST_ADDRESS value, you will need to restart the PowerFlow stack.
• If you are installing the RPM in a cluster configuration, and you want to distribute traffic between the nodes, a load balancer is required.
• If you install the PowerFlow system in a cloud-based environment using a method other than an ISO install, you are responsible for setting up and configuring the requirements of the cloud-based environment.

Locating the RPM file

To locate the PowerFlow RPM file:

1. Go to the ScienceLogic Support site at https://support.sciencelogic.com/s/.
2. Click the Product Downloads tab and select PowerFlow. The PowerFlow page appears.
3. Click the link to the current release. The Release Version page appears.
4. In the Release Files section, click the RPM link for the PowerFlow image. A Release File page appears.
5. Click Download File at the bottom of the Release File page.

Installing from the RPM File

You can also install PowerFlow on other cloud-based environments, such as Microsoft Azure. For other cloud-based deployments, the process is essentially the same as the following steps: PowerFlow provides the containers, and the cloud-based environment provides the operating system and server.

You can install PowerFlow version 3.0.0 or later on any Oracle Linux 8 (OL8) operating system, even in the cloud, as long as you meet all of the operating system requirements. These requirements include CPU, memory, Docker and a docker-compose file installed, and open firewall settings. When these requirements are met, you can install the RPM and begin to deploy the stack as usual.

PowerFlow version 3.0.0 and later RPM is OL8-based. As a result, you cannot install the PowerFlow PowerFlow 3.0.0 and later RPM in an OL7 environment. Previous versions of PowerFlow before version PowerFlow 3.0.0 and later can use Oracle Linux 7.x, but ScienceLogic strongly recommends that you convert the operating system to OL8 as soon as possible. The steps below are specific for PowerFlow version 3.0.0 or later. For more information, see Converting PowerFlow to Oracle Linux 8 (OL8).

XFS is the default file system for Oracle operating systems, and OverlayFS is the default storage driver for Docker. For them to be compatible, the d_type=true option must be enabled. You can validate that setting with the xfs_info command, which is documented https://docs.docker.com/storage/storagedriver/overlayfs-driver/.

For a clustered PowerFlow environment, you must install the PowerFlow RPM on every server that you plan to cluster into PowerFlow. You can load the Docker images for the services onto each server locally by running /opt/iservices/scripts/pull_start_iservices.sh. Installing the RPM onto each server ensures that the PowerFlow containers and necessary data are available on all servers in the cluster. For a High Availability PowerFlow system, run the steps below to install PowerFlow on three different nodes, and then run the steps in Automating the Configuration of a Three-Node Cluster.

The following procedure describes how to install PowerFlow via RPM to Amazon Web Service (AWS) EC2. The ec2-user must belong to the iservices group.

To install a single-node PowerFlow version 3.0.0 via RPM to a cloud-based environment (using AWS as an example):

1. In Amazon Web Service (AWS) EC2, click Launch instance. The Launch an instance page appears.

   If you are installing PowerFlow to another cloud-based environment, such as Microsoft Azure, set up the operating system and server, and then go to step 7.

2. Deploy a new Oracle Linux 8.0 virtual machine by searching for 131827586825 (the Oracle AWS Owner ID) in the Search our full catalog field in the Application and OS Images section.

3. Press Enter. The Choose an Amazon Machine Image (AMI) page appears.

4. Click the Community AMIs tab and click Select for the AMI file. The AMI used should be the latest available OL8 AMI published by Owner ID 131827586825.

5. From the Choose an Instance Type page, select at least a t2.xlarge AMI instance, depending on your configuration:

• Single-node deployments. The minimum is t2.xlarge (four CPUs with 16 GB memory), and ScienceLogic recommends t2.2xlarge (8 CPUs with 32 GB memory).
• Cluster deployments. Cluster deployments depend on the type of node you are deploying. Refer to the separate multi-tenant environment guide for more sizing information. ScienceLogic recommends that you allocate at least 50 GB or more for storage.

6. Go to the Step 6: Configure Security Group page and define the security group:

• Inbound port 443 needs to be exposed to any of the systems that you intend to integrate.

• For access to the PowerFlow user interface, add the following ports to the security group:

  • 15672 TCP for RabbitMQ
  • 5556 for Dex Server authentication
  • 3141 for Devpi access

  For more information about ports, see the System Requirements.

• Port 8091 is exposed through https. ScienceLogic recommends that you make port 8091 available externally to help with troubleshooting:



7. Upload the sl1-powerflow-3.x.x-1.el8.x86_64.rpm file to the PowerFlow server using SFTP or SCP.

8. Enable the necessary repositories by running the following commands on the PowerFlow system:

   Be sure to remove old OL7 repositories configuration from the /etc/yum.repos.d directory as they can cause errors while running the dnf update in step 9.

   sudo dnf install yum-utils

   sudo dnf config-manager --enable ol8_baseos_latest

   sudo dnf config-manager --enable ol8_appstream

   sudo dnf config-manager --enable ol8_addons

9. Run the following commands on the server instance to upgrade to Python 3.11 and install the cffi package:

   If proxies are used, be sure to export the environment variables with the corresponding proxy information (http_proxy, https_proxy) so python packages can be installed

   Do not change the version of pip from 21.3.1 This version is required for PowerFlow.

   sudo dnf update

   sudo dnf remove -y python3 python3-pip python3-setuptools

   sudo dnf install python3.11-pip

   sudo dnf install python3.11-cffi

   sudo pip3 install --upgrade pip==21.3.1

10. Ensure that the latest required packages are installed by running the following commands on the server instance:

    sudo dnf install wget

    wget --no-check-certificate https://download.docker.com/linux/centos/8/x86_64/stable/Packages/containerd.io-1.6.32-3.1.el8.x86_64.rpm

    wget --no-check-certificate https://download.docker.com/linux/centos/8/x86_64/stable/Packages/docker-ce-26.1.3-1.el8.x86_64.rpm

    wget --no-check-certificate https://download.docker.com/linux/centos/8/x86_64/stable/Packages/docker-ce-cli-26.1.3-1.el8.x86_64.rpm

    wget --no-check-certificate https://download.docker.com/linux/centos/8/x86_64/stable/Packages/docker-ce-rootless-extras-26.1.3-1.el8.x86_64.rpm

    wget --no-check-certificate https://download.docker.com/linux/centos/8/x86_64/stable/Packages/docker-compose-plugin-2.27.0-1.el8.x86_64.rpm

    sudo dnf install -y containerd.io-1.6.32-3.1.el8.x86_64.rpm docker-ce-26.1.3-1.el8.x86_64.rpm docker-ce-cli-26.1.3-1.el8.x86_64.rpm docker-ce-rootless-extras-26.1.3-1.el8.x86_64.rpm docker-compose-plugin-2.27.0-1.el8.x86_64.rpm

You might need to remove spaces from the code that you copy and paste from this manual. For example, in instances such as the wget command, above, line breaks were added to long lines of code to ensure proper pagination in the document.

You will need to update both instances of the Docker version in this command if there is a more recent version of Docker CE on the Docker Download page: https://download.docker.com/linux/centos/7/x86_64/stable/Packages/.

11. Create the Docker group:

    sudo groupadd docker

12. Add your admin user to the Docker group and the wheel group:

    sudo usermod -aG docker $USER

    sudo usermod -aG wheel $USER

    where $USER is the isadmin user name or the ec2-user in AWS. The ec2-user should belong to the iservices group, which is created as part of this RPM installation process.

13. Log out and log back in to ensure that your group membership is re-evaluated.

14. Run the following commands for the configuration updates. If selinux is already disabled skip this step.

    sudo setenforce 0

    sudo vi /etc/selinux/config

    SELINUX=permissive

    If changing the SELINUX=permissive configuration does not work, replace it with SELINUX=disabled.

15. Run the following firewall commands as "sudo" Be sure the firewalld service is up and running using sudo systemctl status firewalld:

    For Microsoft Azure environments, the firewalld service may be down and masked. Unmask it using sudo systemctl unmask firewalld, enable and start it.

    sudo firewall-cmd --add-port=2376/tcp --permanent

    sudo firewall-cmd --add-port=2377/tcp --permanent

    sudo firewall-cmd --add-port=7946/tcp --permanent

    sudo firewall-cmd --add-port=7946/udp --permanent

    sudo firewall-cmd --add-port=4789/udp --permanent

    sudo firewall-cmd --add-protocol=esp --permanent

    sudo firewall-cmd --reload

    To view a list of all ports, run the following command: firewall-cmd --list-all.

    If you copy and paste any of the commands with a --, make sure the two hyphens are entered as hyphens and not special characters.

16. Install the remaining Python packages needed for the PowerFlow RPM file:

    sudo dnf update

    sudo rpm -qa|grep python3-pyyaml

    sudo dnf remove python3-pyyaml

    sudo pip3 install --no-build-isolation wheel

    sudo pip3 install requests==2.27.1

    sudo pip3 install --no-build-isolation pyyaml==5.4.1

    sudo pip3 install --no-build-isolation MarkupSafe

    sudo pip3 install --no-build-isolation docker-compose==1.27.4

17. Copy the PowerFlow RPM to the instance of installation and install the RPM. Use the complete location of the RPM file if you are located in another directory.

    If proxies are used be sure to export the environment variables with the corresponding proxy information http_proxy, https_proxy so python packages can be installed.

    sudo dnf install sl1-powerflow-3.X.X-1.el8.x86_64.rpm

    sudo systemctl restart docker

    If an OL8 (hardened) image was used, the /tmp mount point might have been mounted using the noexec flag. If that is the case, run the following steps to install the RPM:

    mkdir -p $HOME/tmp
    sudo TMPDIR=$HOME/tmp dnf install sl1-powerflow-3.X.X-1.el8.x86_64.rpm
    sudo systemctl restart docker

18. Add the user to the iservices group. Then, log out and log back in to ensure that your group membership is re-evaluated and the user was added to the iservices group using groups.

    sudo usermod -aG iservices $USER

19. Create a password for PowerFlow. Be sure the group of that file is iservices.

    printf '<password>' > /etc/iservices/is_pass

    sudo chown root:iservices /etc/iservices/is_pass

    where <password> is a new, secure password.

20. Before starting the PowerFlow application, make sure the HOST_ADDRESS in the isconfig.yml file is set as expected. The public IP or DNS should be used.

21. Pull and start iservices to start PowerFlow:

    If an error related to installing syncpacks is displayed at the end, please wait a few moments and rerun 'pfctl init-sps', or manually install the syncpacks through the PowerFlow user interface.

    sudo /opt/iservices/scripts/pull_start_iservices.sh

For an AWS deployment, ScienceLogic recommends that you switch to an Amazon EC2 user as soon as possible instead of running all the commands on root.

After installation, you must license your PowerFlow system to enable all of the features. Licensing is required for production systems only, not for test systems. For more information, see Licensing PowerFlow.

Troubleshooting a Cloud Deployment of PowerFlow

After completing the AWS setup instructions, if none of the services start and you see the following error during troubleshooting, you will need to restart Docker after installing the RPM installation.

sudo docker service ps iservices_couchbase --no-trunc

"error creating external connectivity network: Failed to Setup IP tables: Unable to enable SKIP DNAT rule: (iptables failed: iptables --wait -t nat -I DOCKER -i docker_gwbridge -j RETURN: iptables: No chain/target/match by that name."

Installing PowerFlow on AWS

There are two options to install PowerFlow on AWS:

• Follow the instructions for installing the RPM in cloud environments

Or

• Use the PowerFlow AMI (Amazon Machine Image)

What are the ScienceLogic AMIs?

An instance is a virtual server that resides in the AWS cloud. An Amazon Machine Image (AMI) is the collection of files and information that AWS uses to create an instance. A single AMI can launch multiple instances.

For details on AMIs, see http://docs.aws.amazon.com/AWSEC2/latest/UserGuide/AMIs.html.

The ScienceLogic AMIs are defined by ScienceLogic. ScienceLogic has created an AMI for each type of ScienceLogic appliance. You can use a ScienceLogic AMI to create Elastic Compute Cloud (EC2) instances for each type of ScienceLogic appliance.

NOTE: Elastic Compute Cloud (EC2) instances are virtual servers that come in a variety of configurations and can be easily changed as your computing needs change. For more information on EC2, see http://docs.aws.amazon.com/AWSEC2/latest/UserGuide/concepts.html.

The ScienceLogic AMIs are private and are for ScienceLogic customers only. After you collect specific information about your AWS account, you can send a request (and the collected information) to ScienceLogic, and ScienceLogic will share the ScienceLogic AMIs with you.

Getting the PowerFlow AMI

To get access to the PowerFlow AMIs:

1. Contact ScienceLogic Support to obtain the PowerFlow AMIs.
2. To view the ScienceLogic AMIs in your AWS account, go to the AWS Management Console page. Under the heading Compute, click EC2.
3. In the EC2 Dashboard page, go to the left navigation bar. Under the heading Images, click AMIs.
4. In the main pane, under Filters, click Owned by me and then select Private images.
5. You should see AMIs with names that begin with "ScienceLogic PowerFlow" and end with the current release number for PowerFlow.
6. If you do not see AMIs with names that begin with "ScienceLogic PowerFlow", your EC2 Dashboard might have a default region that does not match the region for the ScienceLogic PowerFlow AMIs. To change the current region in the EC2 dashboard, click the region pull-down in the upper right and choose another region. Do this until you find the ScienceLogic PowerFlow AMIs.

A region is a geographic location. AWS has data centers that include multiple regions. You can specify that an instance reside in a specific region. For more details on regions, see http://docs.aws.amazon.com/AWSEC2/latest/UserGuide/using-regions-availability-zones.html.

Launching the New Instance

To launch the new EC2 instance from the ScienceLogic AMI:

1. Go to the EC2 Dashboard.

2. Select the PowerFlow AMI. Click the Launch button.

3. In the Choose Instance Type page, select at least a t2.xlarge AMI instance, depending on your configuration.

   • For single-node deployments, the minimum is t2.xlarge (four CPUs with 16 GB memory), however ScienceLogic recommends t2.2xlarge (8 CPUs with 32 GB memory).

   • For cluster deployments, the instance type depends on the type of node you are deploying. ScienceLogic recommends allocating at least 100 GB or more for storage.

4. Click the Next: Configure Security Group button.

5. A security group is a reusable set of firewall rules. In the Configure Security Group page, do the following:

   • Assign a security group. Select Create a new security group.

   • Security group name. Enter a name or accept the default name.

   • Description. Accept the default value in this field.

6. Use the table below to create security rules for each type of PowerFlow appliance. After completing each row, click the Add Rule button.

Type	Protocol	Port Range	Source	Description
Custom UDP Rule	UDP	8091	If you will always log in from a single IP address, select My IP. If you will log in to the instance from multiple IP addresses, enter those IP addresses, separated by commas, in this field.	Couchbase Administrator Dashboard
SSH (edit the default SSH rule)	TCP	22	If you will always log in from a single IP address, select My IP. If you will log in to the instance from multiple IP addresses, enter those IP addresses, separated by commas, in this field.	SSH. For SSH sessions from the user workstation to the appliance.
Custom TCP Rule	TCP	8091	If you will always log in from a single IP address, select My IP. If you will log in to the instance from multiple IP addresses, enter those IP addresses, separated by commas, in this field.	Couchbase Administrator Dashboard
HTTPS	TCP	443	If you will always log in from a single IP address, select My IP. If you will log in to the instance from multiple IP addresses, enter those IP addresses, separated by commas, in this field.	PowerFlow HTTPS access

7. Click the Next: Add Storage button.
8. In the Add Storage page, select the checkbox in the Delete on Termination column.
9. In the Add Storage page, set the disk space as needed. For more information about resource recommendations, see CPU and Memory Requirements for PowerFlow.
10. In the Add Storage page, select gp3 for the Volume Type.

11. Click the Next: Configure Instance Details button.

12. In the Configure Instance Details page, define the following:

• Number of Instances. Enter "1".
• Request Spot Instances. Do not select.
• Network. For VPC-enabled accounts, specify the network where the instance will reside. If you are unsure of the network, accept the default.
• Subnet. For VPC-enabled accounts, specify the subnet where the instance will reside. If you are unsure of the subnet, accept the default.
• Auto-assign Public IP. If you select Enable, AWS will assign an IP address from the public pool to this instance. If you select Disable, you must assign an Elastic IP Address (EIP) to the instance.

NOTE: If you select Enable in the Auto-assign Public IP field, the IP address will change each time the instance is stopped or terminated. For All-In-One Appliances and for Administration Portals, you might want to use an Elastic IP address (EIP), which is a persistent IP address. See the section on Elastic IP Addresses (EIP) for details.

NOTE: For more information on Elastic IP Addresses, see http://docs.aws.amazon.com/AWSEC2/latest/UserGuide/elastic-ip-addresses-eip.html.

• IAM role. If your organization uses IAM roles, select the appropriate role.

13. Configure the remaining settings according to your organization's requirements, or leave them with the default values.

14. Click the Review and Launch button and review the details of the new instance. Fix any problems to meet the requirements of your organization.
15. Click the Launch button.

Because the root user is disabled for SSH access, you must reset the password for isadmin before using any SSH key.

Accessing the Appliance Using SSH

Before following the steps below, you should have already received the ScienceLogic PowerFlow AMIs and created an EC2 instance based on the ScienceLogic PowerFlow AMI. You also need access to SSH on the command line (for UNIX users) or have installed PuTTY (for Windows users).

Gathering Information Required for Accessing the Appliance Using SSH

To gather the required information:

1. Navigate to the EC2 Dashboard.

2. Select Instances from the lefthand navigation menu.

3. Click the row that contains the PowerFlow appliance instance.

4. The lower pane contains information about the instance. Take note of the Public DNS and Public IP, as you will need them later.

If you are using AWS instances to create a PowerFlow Cluster, perform the steps above for each AWS instance you want to include in the PowerFlow Cluster.

Configuring SSH

You can connect to your PowerFlow instance using the SSH command line (for UNIX users) or PuTTY (for Windows users).

1. Use the following credentials the first time you attempt to access the PowerFlow appliance instance. The system will immediately prompt you to change the password after accessing the system.

   • username: isadmin

   • password: isadminisadminisadmin

2. If you need to use an SSH key, you can add it after resetting the password. For information on adding or replacing a public key on your Linux instance, see Amazon's documentation at docs.aws.amazon.com.

   1. Enter the following to get the public key: ssh-keygen -y -f /path_to_key_pair/my-key-pair.pem

   2. Set the file ~/.ssh/authorized_keys with the expected permissions chmod 700 ~/.ssh/ and chmod 600 ~/.ssh/authorized_keys.

Deploying the PowerFlow Application

Once you have access to the EC2 Instance follow the steps below to deploy the PowerFlow application.

1. Update the hostname as needed. The default hostname is powerflow. For more information about updating the hostname, see Oracle's documentation at docs.oracle.com.

2. Create the password file. Execute these commands as a superuser (sudo -i) for MUD environments.

printf "<newpassword>" > /etc/iservices/is_pass

chmod 660 /etc/iservices/is_pass

3. Create isconfig.yml and encryption_key by executing the following command as a superuser.

/opt/iservices/scripts/system_updates/recreate_configs.sh

For MUD environments only, execute the following:

echo 'MUD_ENABLED: true' >> /etc/iservices/isconfig.yml

Be sure to set the correct value for the HOST_ADDRESS in the /etc/iservices/isconfig.yml file. If this doesn't have the public IP set, the PowerFlow application user interface will not be accessible.

4. Restart Docker.

systemctl restart docker

docker info

5. Deploy the PowerFlow system. If the stack needs to be configured as a cluster environment, please follow the steps for Configuring PowerFlow for High Availability.

/opt/iservices/scripts/pull_start_iservices.sh

Additional Configuration Steps

The minimum size of the EBS volume used for the PowerFlow deployment is 100 GB. If a bigger size is used, the partition can be resized and the LVM can be extended as needed.

The following is an example to extend the root file system with 10 extra GB, if the EBS volume size was ~110GB.

lsblk # To check the real disk size and the partition that needs to be resized. It would be xvda2, as it should not be the boot partition

parted /dev/xvda

(parted) print

(parted) resizepart 2 100%

(parted) quit

pvresize /dev/xvda2

vgs # This will show you how much storage is left for allocation

lvextend -L +10G /dev/isvg/root

xfs_growfs /dev/mapper/isvg-root

df -h # To see the final result

Converting PowerFlow to Oracle Linux 8 (OL8)

Starting with version 3.0.0 of PowerFlow, you can convert your PowerFlow system to Oracle Linux 8. ScienceLogic strongly recommends you make the conversion to OL8 as soon as possible, as OL7 is End of Life (EOL) as of the end of 2024.

The Oracle Linux automated scripts for converting PowerFlow from OL7 to OL8 have been deprecated as of version 3.2.0 of PowerFlow. You must run a backup, install, and restore using a separate system.

Complete the upgrade steps in the following order:

1. If needed (see the tables, below), back up the PowerFlow system.
2. Install PowerFlow version 3.0.0 or later using the .iso file.
3. If needed, restore the PowerFlow system.

Upgrade Options for Converting from PowerFlow 2.x (OL7) to PowerFlow 3.x or Later (OL8)

Select one of the following options to upgrade from an older version of PowerFlow running OL7 to PowerFlow version 3.0.0 or later running OL8:

Upgrade Option	Requirements	Implications, Downtime, Other Considerations
Backup, install, and restore, using a separate system	Identical, secondary environment for installing the PowerFlow 3.0.0 .iso file	This approach allows for the existing PowerFlow system to continue running while you deploy and configure a new OL8 based system. Once data is fully restored on the new system, you may switch the load balancer configuration to point to the new system, virtually eliminating downtime. This approach also allows you to use the old PowerFlow system as a fallback or rollback option.
Backup, re-install, and restore, using the same system	A separate file store where backup and configuration files can be stored temporarily	This approach will incur downtime as your existing system will be re-installed to PowerFlow 3.0.0 and restored with the data from the previous version. This approach does not allow you to roll back or switch back over to the older version of PowerFlow.

Upgrade Paths Based on PowerFlow Environments

Your upgrade options depend on your PowerFlow environment, so review the following table before beginning the upgrade and conversion process.

Environment Type	Upgrade Options	Recommended Option	Additional Notes
Internet-connected, on-premises	Run a back up, re-install, and restore.	Run a back up, re-install, and restore.	None
Offline on-premises	Run a back up, re-install, and restore.	Run a back up, re-install, and restore.	None
MUD installation (FIPS-enforced)	Run a back up, re-install, and restore.	Run a back up, re-install, and restore.	None.
AWS-based cloud installation	Run a back up, re-install, and restore.	Run a back up, re-install, and restore.	None
Azure-based cloud installation	Run a backup, install, and restore using a separate system.	Run a backup, install, and restore using a separate system.	None

Back Up, Re-install, and Restore Your PowerFlow System

If you are backing up, installing, and restoring using the same system, you will need a separate file store where backup and configuration files can be stored temporarily. This approach will incur downtime as your existing system will be re-installed to 3.0.0 and restored with the data from previous. This approach does not allow you to roll back or switch back over to the older version.

If you are backing up, installing, and restoring using a separate system, you will need an identical, secondary environment for installing the PowerFlow 3.0.0 .iso file. This approach allows for the existing PF system to continue running/operating while you deploy and configure a new OL8 based system. Once data is fully restored on the new system, you may switch load balancer config to point to the new system, virtually eliminating downtime. This approach also allows you to use the old system as a fallback/rollback option

Use the following steps to back up your current PowerFlow configuration after you have converted the operating system to OL8, but before you upgrade to PowerFlow version 3.0.0 or later:

1. Use the "PowerFlow Backup" application in the PowerFlow user interface to create a backup file and send that file using secure copy protocol (SCP) to a destination system. For more information, see Backing up and Restoring PowerFlow Data.

   The backup and restore applications are application-level backup and restore tools. For full-system backups, you will need to do a filesystem-level backup to ensure that you get the encryption key that was used to encrypt configuration objects as well as other files used to describe the environment, including the /etc/iservices directory, the docker-compose.yml file and the docker-compose-override.yml file.

2. Install a "fresh" version of PowerFlow using the .iso file. For more information, see Installing PowerFlow via ISO.

   After installing the ISO, but before deploying PowerFlow using the script /opt/iservices/scripts/pull_start_iservices.sh or using pfctl autocluster, you must copy the old system encryption_key and is_pass files to the new nodes.

3. Use the "PowerFlow Restore" application in the PowerFlow user interface to retrieve your backup file (from step 1, above) from the remote system and restore its content. For more information, see Restoring PowerFlow Data.

Upgrading to Couchbase Version 6.6.0

This section contains a set of upgrade considerations for moving to Couchbase version 6.6.0 (Community Edition). Version 2.6.0 of the PowerFlow Platform includes Couchbase version 6.6.0 (Community Edition).

PowerFlow Supported Upgrade Paths

The following constraints are based on the Couchbase version used by the different versions of PowerFlow. For more information, see Couchbase Supported community upgrade paths.

Starting Versions	Path to Current Versions
PowerFlow 2.0.x (Couchbase 5.1.1)	2.0.x (Couchbase 5.1.1) -> 2.1.x to 2.5.x (Couchbase 6.0.2) -> 2.6.0(Couchbase 6.6.0)
PowerFlow 2.1.x (Couchbase 6.0.2)	2.1.x (Couchbase 6.0.2) -> 2.6.0 (Couchbase 6.6.0)

Logs Buckets

When upgrading to Couchbase version 6.6.0, the number of documents in the logs bucket could make the upgrade take longer, as a namespace upgrade is needed.

ScienceLogic recommends that you flush the logs bucket if there are more than 300,000 documents that are taking up close to 2 GB of space in every node. Flushing the logs bucket will speed up the upgrade process. Otherwise, migrating a logs bucket of that size would take two to three minutes per node.

Do not interrupt the upgrade process, as that can corrupt documents. Please wait until the upgrade finishes running.

Run the following command to flush the logs bucket after the PowerFlow version 2.6.0 RPM was installed, but before redeploying the PowerFlow Stack:

pfctl --host <hostname><host_password>:<password> node-action --action flush_logs_bucket

Alternately, you can flush the logs bucket manually using the Couchbase user interface.

Downgrading

Downgrades from Couchbase 6.6.x are not supported because the namespace is upgraded.

Upgrading from PowerFlow 3.x to the latest 3.x Version

This topic is only relevant for users that are upgrading an existing version of PowerFlow 3.x.x to the latest 3.x.x version.

ScienceLogic releases a major update to PowerFlow every six months. ScienceLogic also releases a monthly maintenance release (MMR) as needed to address major customer-facing bugs. If there are no major bugs to be addressed via MMR, the MMR will not be produced for the month. Security updates are included in an MMR only if an MMR is planned to be released.

You should always upgrade to the most recent release of PowerFlow.

If you need the most recent, stable version of the Oracle Linux 8 operating system (OS) packages, you can upgrade them either using dnf update or by mounting the latest ISO to an existing PowerFlow system. For more information, see Upgrading OS Packages.

Deploying PowerFlow as a MUD System (Optional)

Starting with PowerFlow version 2.3.0, you can deploy PowerFlow as a Military Unique Deployment (MUD) system. Please note the following criteria:

• You cannot convert a non-MUD PowerFlow system to a MUD system.
• If you want to upgrade from an older (non-MUD) PowerFlow system to a MUD system, you will need to run a backup and restore to the new deployment.
• If you want to upgrade from an older 2.x MUD system to the latest 3.x line, you will need to run a backup and restore to the new deployment.
• Upgrading from a 3.x MUD system to the latest 3.x system is fully supported.

Considerations for Upgrading from PowerFlow 3.x

• PowerFlow version 3.1.x brings Python3.11 inside its containers. Upgrading SyncPack virtual environments from Python3.8 to Python3.11 is done automatically by the syncpacks_steprunner service after re-deploying the PowerFlow stack. This upgrade could take a moment. While upgrading, the steprunners could fail to execute some tasks because the SyncPack virtual environments won't be in place immediately. To avoid this, the steprunners replicas can be set to 0 temporarily in the docker-compose.yml file.

• If you made any modifications to the nginx configuration or to other service configuration files outside of the docker-compose.ymlfile, you will need to modify those custom configurations before upgrading, or contact ScienceLogic Support to prevent the loss of those modifications.

• If you are deploying PowerFlow without a load balancer, you can only use the deployed IP address as the management user interface. If you use another node to log in to the PowerFlow system, you will get an internal server error. Also, if the main deployed node is down, you must redeploy the system using the IP address for another active node to access the management user interface.

• For Military Unique Deployment (MUD) systems, ScienceLogic recommends using the --resolve-image=never argument when deploying the stack for a faster deployment:

• docker stack deploy --resolve-image never -c /opt/iservices/scripts/docker-compose.yml iservices

• If PoweFlow 3.0.0 was installed using the official PowerFlow ISO, the free space on the isvg-root(/) filesystem may need to be increased for installing the PowerFlow 3.1.x RPM, as this RPM requires approximately 9GB for its installation. When checking the current free space on the isvg-root filesystem use df -h . If the free space is less than 9GB use one or both of the following options to make space for the RPM installation.

Option 1: Increase the size of the isvg-root(/) filesystem

1. Run the command sudo vgs. This will show you how much storage is left for allocation.

2. If VFree is not more than 10Gg, you can do the following:

   • Increase the size of the physical disk. This depends on the virtualization solution you are using.

   • Run commands for Option 2 instead.

3. Run the command sudo lvextend -L +10G /dev/isvg/root.

4. Run the command sudo xfs_growfs /dev/mapper/isvg-root.

5. Verify that there is at least 9G of storage for the isvg-root filesystem with the command df -h.

Option 2: Remove the Old PowerFlow Images from the /opt/iservices/images directory

1. Remove the old compressed images from the /opt/iservices/images directory.

2. Verify that you have at least 9G storage for the new images with the command df -h.

3. If there is not enough storage, you will have to find other directories and files to remove to free up space.

Pre-Upgrade Steps

Before upgrading a PowerFlow system, check to ensure the system is up and healthy.

1. Be sure that the gui service is constrained to, and is running the nodes that are expected to receive traffic.

2. Run the powerflowcontrol(pfctl) healthcheck and autoheal actions to make sure the system is healthy.

3. For cluster environments, verify that there are three nodes in the Couchbase and RabbitMQ user interfaces.

4. If you have made custom changes, ensure they have been added to the docker-compose-override.yml file. Otherwise, they will be lost during the upgrade process. For more information, see the Configuring PowerFlow Services section.

   • If you enabled the broker_load_from_backend setting, make sure it is present in the docker-compose-override.yml file. After upgrading, make sure the setting is still enabled.

   • When upgrading from PowerFlow version 3.0.0 to the latest version, the steprunners docker healthcheck in the docker-compose-override.yml file must be updated to the following, which is compatible with PowerFlow version 3.0.0 and later:

     • ["CMD-SHELL", "celery -A ipaascommon.celeryapp:app inspect ping -d celery@$${HOSTNAME}"]

   • Be sure to run the powerflowcontrol(pfctl) autoheal action to copy the compose files to all nodes in cluster environments.

5. Create the following backups:

   • Use the "Backup" application. For more information, see the Backing up and Restoring PowerFlow Data section.

   • Make backups of the /etc/iservices/, /opt/iservices/scripts/docker-compose.yml, and /opt/iservices/scripts/docker-compose-override.yml files.

Locating the RPM or ISO File for Upgrading

As a best practice, you should always upgrade to the most recent version of PowerFlow that is currently available at https://support.sciencelogic.com/s/.

To locate and download the PowerFlow RPM file:

1. Go to the ScienceLogic Support site at https://support.sciencelogic.com/s/.
2. Click the Product Downloads tab and select PowerFlow. The PowerFlow page appears.
3. Click the link to the current release. The Release Version page appears.
4. In the Release Files section, click the RPM or ISO link. A Release File page appears.
5. Click Download File at the bottom of the Release File page.

Upgrading OS Packages

If you need the most recent, stable versions of the Oracle Linux 8 operating system (OS) packages, you can upgrade them either using the dnf update command or by mounting the latest PowerFlow ISO to an existing PowerFlow system. For more information, see the section on Upgrading OS Packages (for Offline Deployments Only).

When a dnf update is performed, there is no risk of PowerFlow operations being affected as long as Docker or networking services are not included in the updates. If these packages are updated, you must restart Docker in all nodes.

Upgrading OS Packages (for Offline Deployments Only)

Upgrading OS packages for an offline deployment requires you to mount the ISO and update the packages that are shipped with the ISO.

1. Mount the PowerFlow ISO onto the system:

   mkdir /mnt/tmp_install_mount

   mount -o loop /dev/cdrom /mnt/tmp_install_mount

2. After you mount the ISO, add a new repository file to access the ISO as if it were a yum repository. Create a /etc/yum.repos.d/localiso.repo file with the following contents:

   [ol8_baseos_latest_offline]
   name=Oracle Linux 8 BaseOS Latest PF ISO
   gpgkey=file:///etc/pki/rpm-gpg/RPM-GPG-KEY-oracle
   baseurl=file:///mnt/tmp_install_mount/BaseOS
   gpgcheck=0
   enabled=1

   [ol8_appstream_offline]
   name=Oracle Linux 8 Application Stream PF ISO
   gpgkey=file:///etc/pki/rpm-gpg/RPM-GPG-KEY-oracle
   baseurl=file:///mnt/tmp_install_mount/AppStream
   gpgcheck=0
   enabled=1

   After you create and save this file, the Linux system can install packages from the PowerFlow ISO.

3. To disable other repos except the local ISO mount repo, run the following command:

   dnf --disablerepo="*" --enablerepo="ol8_baseos_latest_offline,ol8_appstream_offline" update

4. Run the following command to update and install the host-level packages:

   dnf update

Upgrading from Version 3.x.x to 3.2.0

Depending on your PowerFlow environment and your company's requirements, select one of the following upgrade options:

• Single-node Upgrade

• Cluster Upgrade with Short Downtime

• Rolling Cluster Upgrade with No Downtime

Perform the steps in the following procedure in the order listed below to ensure a proper upgrade.

Single-node Upgrade

To upgrade a single-node PowerFlow system from 3.x.x:

1. Make a copy of the docker-compose file that you used to deploy PowerFlow (in case you need to roll back to the previous version). Follow the pre-upgrade steps.

2. Either go to the console of the PowerFlow system or use SSH to access the server.

3. Log in as isadmin with the appropriate (root) password. You must be root to upgrade using the RPM file.

4. Download the PowerFlow RPM and copy the RPM file to the PowerFlow system.

5. Type the following in the command line, where <full_path_of_rpm> is the name and path of the RPM file, such as /home/isadmin/sl1-powerflow-3.x.x-1.x86_64:

sudo dnf upgrade <full_path_of_rpm>

If the disk space to install the new RPM is not enough in the root partition, try removing the old images from the directory /opt/iservices/images or increase the size of the isvg-root(/) filesystem. For more information, see the section on Considerations for Upgrading from 3.x

6. After the RPM is installed, run the following Docker command:

docker stack rm iservices

After running this command, the stack is no longer running.

If you want to upgrade your services in place, without bringing them down, you may skip this step. Please note that skipping this step might cause the services to take longer to update. For MUD environments, you must remove the stack, as there are temporal volumes that need to be recreated.

7. If the upgrade process recommends restarting Docker, run the following command:

   systemctl restart docker

   If you restart Docker for this step, you should skip step 10, below.

8. Re-deploy the Docker stack to update the containers:

   docker stack deploy -c /opt/iservices/scripts/docker-compose.yml iservices

9. After you re-deploy the Docker stack, the services automatically update themselves. Wait a few minutes to ensure that all services are updated and running before using the system.

10. If the upgrade process recommends restarting Docker, run the following command:

    systemctl restart docker

11. To view updates to each service and the service versions for services throughout the whole stack, type the following at the command line:

    docker service ls

    Each service now uses the new version of PowerFlow. Make sure to run the pfctl healthcheck and autoheal actions to finish the upgrade process.

Cluster Upgrade with Short Downtime

If you are running PowerFlow in a clustered environment, you should install the RPM on all nodes in the cluster for the upgrade. The order in which you install the RPM on the nodes does not matter. Installing the RPM on each node makes the latest PowerFlow container images and scripts available to the system.

Please note that installing the RPM on the nodes does not change the version of the currently running PowerFlow application stack. The new version of PowerFlow is only deployed when you run the docker stack deploy command on the new docker-compose file that is generated after you install the RPM.

The following upgrade procedure for a clustered PowerFlow environment results in only five to ten minutes of downtime.

For more information, including extensive examples, seePowerFlow Multi-tenant Upgrade Process in Appendix B: Configuring the PowerFlow System for Multi-tenant Environments.

To perform a cluster upgrade with short downtime:

1. Make a copy of the docker-compose file that you used to deploy PowerFlow (in case you need to roll back to the previous version). Follow the pre-upgrade steps.

2. Use SSH to access the node.

3. Log in as isadmin with the appropriate (root) password. You must be root to upgrade using the RPM file.

4. Copy the RPM file to each node.

5. Install the RPM on all nodes in the cluster by typing the following command at the command line for each node:

   sudo yum upgrade <full_path_of_rpm>

   where full_path_of_rpm is the name and path of the RPM file, such as /home/isadmin/sl1-powerflow-3.x.x-1.x86_64. For more information, see Installing the PowerFlow RPM. If there is not enough space to install the new RPM in the root partition, try removing the tar images from the directory /opt/iservices/images.

   Installing the RPM on all the nodes makes the containers available and updates the docker-compose file on each node, but the existing PowerFlow version will continue running.

6. After you have installed the RPM on all of the nodes, open the new docker-compose.yml file at /opt/iservices/scripts/ and confirm that the versions of Couchbase, RabbitMQ, and any custom workers are using the latest, updated version numbers.

7. After the RPM is installed on the nodes, run the following Docker command:

   docker stack rm iservices

   After you run this command, the stack is no longer running.

   If you want to upgrade your services in place, without bringing them down, you may skip this step. Please note that skipping this step might cause the services to take longer to update.

8. If the upgrade process recommends restarting Docker, run the following command:

   systemctl restart docker

   If you restart Docker for this step, you should skip step 11, below.

9. Re-deploy the Docker stack with the docker-compose file you reviewed in step 6:

   docker stack deploy -c /opt/iservices/scripts/docker-compose.yml iservices

   The time between removing the old version of the stack and deploying the new version of the stack is the only period of down time.

10. After you re-deploy the Docker stack, the services automatically update themselves. Wait a few minutes to ensure that all services are updated and running before using the system.

11. If the upgrade process recommends restarting Docker, run the following command:

    systemctl restart docker

12. To view updates to each service and the service versions for services throughout the whole stack, type the following at the command line:

    docker service ls

    Each service now uses the new version of PowerFlow.

Rolling Cluster Upgrade with No Downtime

For a clustered PowerFlow environment, the following rolling cluster update results in no downtime, but the process requires intermediate compose updates.

For more information, including extensive examples, see PowerFlow Multi-tenant Upgrade Process in Appendix B: Configuring the PowerFlow System for Multi-tenant Environments.

To perform a rolling cluster upgrade with no downtime:

1. Make a copy of the docker-compose file that you used to deploy PowerFlow (in case you need to roll back to the previous version). Follow the pre-upgrade steps.

2. Use SSH to access the node.

3. Log in as isadmin with the appropriate (root) password. You must be root to upgrade using the RPM file.

4. Copy the RPM file to each node.

5. Install the RPM on all nodes in the cluster by typing the following command at the command line for each node:

   sudo yum upgrade <full_path_of_rpm>

   where full_path_of_rpm is the name and path of the RPM file, such as /home/isadmin/sl1-powerflow-3.x.x-1.x86_64. For more information, see Installing the PowerFlow RPM.

   Installing the RPM on all the nodes makes the containers available and updates the docker-compose file on each node, but the existing PowerFlow version will continue running.

6. After the RPM is installed on the nodes, remove the "core nodes" one by one to cause a failover, and then re-add a new version of the same node without taking down the stack:

   1. Access the Couchbase user interface at https://<IP of PowerFlow>:8091.

   2. On the Servers tab, select a single database node and click Failover. Select Graceful Failover. Manually failing over before updating ensures that the system is still operational when the container comes down.

   3. Modify the /opt/iservices/scripts/docker-compose.yml file at that you used to deploy PowerFlow, and change just one of the Couchbase services and RabbitMQ services to use the new version (the same Couchbase server you previously failed over).

   4. Deploy the docker-compose file with the new updated Couchbase server.

   5. Wait for the new instance of Couchbase to join the existing cluster as the latest version. When it has joined, that core node is updated.

7. Continue failing over nodes and re-deploying them with the new PowerFlow version until all core nodes are updated.
8. After the core nodes are updated, you can proceed similarly with each individual worker nodes. You can update these nodes in groups if that is faster. You do not need to fail over the worker nodes; you can just change the services and images.
9. At the end of the node-by-node upgrade, your existing docker-compose should contain all of the new versions specified by the latest docker-compose file shipped with the RPM.

Validating the PowerFlow System Post-Upgrade

Perform the following tasks to ensure the cluster configuration is valid for this version of PowerFlow:

1. Be sure that the gui service is accessible.

2. Run the powerflowcontrol(pfctl) healthcheck and autoheal actions to make sure the system is healthy.

3. Restart the contentapi service if the powerflowcontrol(pfctl)autoheal action suggests to do so.

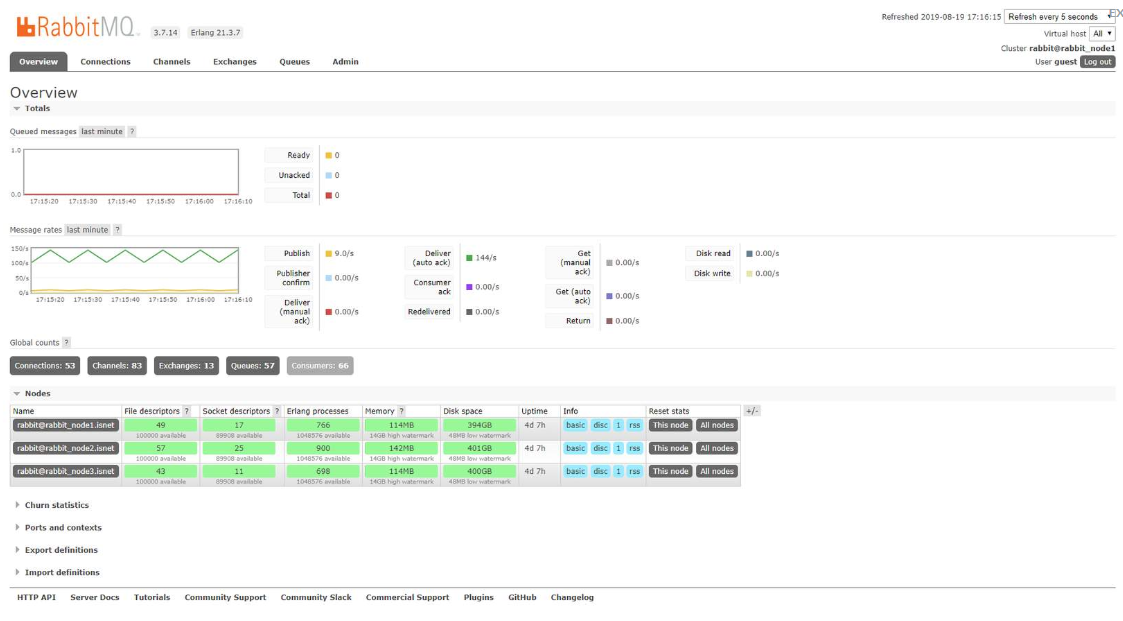

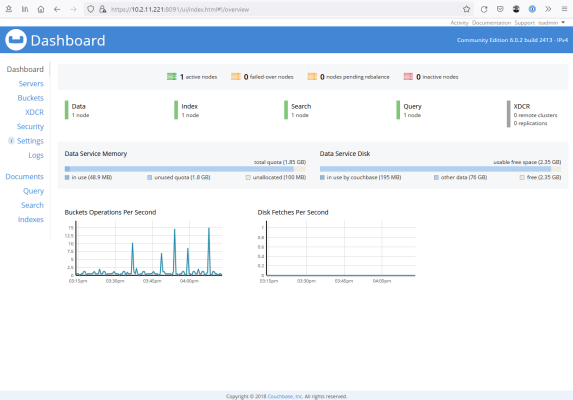

4. Check that you can access the Couchbase(8091) and RabbitMQ(15672) services, and the expected nodes are there. For cluster environments 3 nodes should be present.

5. Check the Couchbase logs. If there are errors with the load powerflow content command, execute the following command:

• pfctl --host <host_IP_1> user:host_password node-action --action upload_syncpack_default_content
  OR
  docker exec -it $(docker ps -q -n 1 --filter name=iservices_couchbase) couchcontrol load powerflow-content

6. Check the RabbitMQ logs. If they are not present in the user interface, restart node one by executing the following command:

• docker service update --force iservices_rabbitmq

7. ScienceLogic recommends installing the latest version of the base SyncPacks that were uploaded during the upgrade:

   • Base Steps SyncPack

   • SL1 PowerFlow System Utils SyncPack

   • SL1 PowerFlow powerflowcontrol (pfctl) Command-Line Utility SyncPack

Troubleshooting Upgrade Issues

The following topics describe issues that might occur after the upgrade to version 2.2.0 or later, and how to address those issues.

After upgrading, the syncpacks_steprunner service fails to run

This error flow tends to happen when the syncpacks_steprunner service is deployed, but the database is not yet updated with the indexes necessary for the SyncPack processes to query the database. In most deployments, the index should be automatically created. If the index is not automatically created, which it might do in a clusterd configuration, you can resolve this issue by manually creating the indexes.

In this situation, if you check the logs, you will most likely see the following message:

couchbase.exceptions.HTTPError: <RC=0x3B[HTTP Operation failed. Inspect status code for details], HTTP Request failed. Examine 'objextra' for full result, Results=1, C Source=(src/http.c,144), OBJ=ViewResult<rc=0x3B[HTTP Operation failed. Inspect status code for details], value={'requestID': '57ad959d-bafb-46a1-9ede-f80f692b0dd7', 'errors': [{'code': 4000, 'msg': 'No index available on keyspace content that matches your query. Use CREATE INDEX or CREATE PRIMARY INDEX to create an index, or check that your expected index is online.'}], 'status': 'fatal', 'metrics': {'elapsedTime': '5.423085ms', 'executionTime': '5.344487ms', 'resultCount': 0, 'resultSize': 0, 'errorCount': 1}}, http_status=404, tracing_context=0, tracing_output=None>, Tracing Output={":nokey:0": null}>

To address this issue, wait a few minutes for the index to be populated. If you are still getting an error after the database has been running for a few minutes, you can manually update the indexes by running the following command inside the couchbase container:

couchcontrol index update-secondary --file /tmp/scripts/couchbase_index.json

Creating a primary index is only for troubleshooting, and primary indexes should not be left on the system.

SyncPack virtual environments were not recreated

This error can occur if the database was up when the SyncPack steprunners were starting. This is likely to occur after restoring a backup. In this situation, if you check the logs for steprunners, you will likely see the following errors:

ipaascommon.ipaas_exceptions.MissingModule: Step requires module system_utils_syncpack but it's not available in the environment

Execute the following commands to restart the syncpacks_steprunner so that the SyncPack virtual environments can be recreated:

docker service rm iservices_syncpacks_steprunner

docker stack deploy -c /opt/iservices/scripts/docker-compose.yml iservices --resolve-image=never

SyncPacks cannot be installed after upgrading from PowerFlow version 3.0.0

In environments where network latency is high, the database may not be able to initialize and apply the new content updates needed for installing SyncPacks. You will see the following error in the steprunners logs when trying to install a SyncPack using the user interface:

|   File "InstallSyncpack", line 181, in install_syncpack
|   File "/usr/local/lib/python3.11/site-packages/couchbase/logic/wrappers.py", line 102, in wrapped_fn
|            ^^^
|   File "InstallSyncpack", line 181, in install_syncpack
|     raise excptn from None
| couchbase.exceptions.InternalSDKException: InternalSDKException(<message='SubDocOp' object is not subscriptable>)
|   File "/usr/local/lib/python3.11/site-packages/couchbase/logic/wrappers.py", line 102, in wrapped_fn
|     raise excptn from None
| couchbase.exceptions.InternalSDKException: InternalSDKException(<message='SubDocOp' object is not subscriptable>)

Execute the following command in the main node to upload the content, or run the powerflowcontrol(pfctl) autoheal action if you are using pfctl version 2.8.0:

docker exec -it $(docker ps -q -n 1 --filter name=iservices_couchbase) couchcontrol load powerflow-content

Validate that the content was uploaded successfully by executing the following command:

pfctl --host <host_IP_1> user:host_password node-action --action verify_install_syncpack_content

The PowerFlow user interface displays an unauthorized user error

The Content API service may have started before the database started. You can run the powerflowcontrol(pfctl) autoheal actions and restart the API service.

Licensing PowerFlow

Before users can access all of the features of PowerFlow, the Administrator user must license the PowerFlow instance through the ScienceLogic Support site. For more information about accessing PowerFlow files at the ScienceLogic Support site, see the following Knowledge Base article: SL1 PowerFlow Download and Licensing.

When you log in to the PowerFlow system, a notification appears at the bottom right of the screen that states how much time is left in your PowerFlow license. The notification displays with a green background if your license is current, yellow if you have ten days or less in your license, and red if your license has expired. You need to click the Close icon () to close this notification.

You can also track your licensing information on the About page (username menu > About). You can still log into a system with an expired license, but you cannot create or schedule PowerFlow applications.

The administrator and all users cannot access certain production-level capabilities until the administrator licenses the instance. For example, users cannot create schedules or upload PowerFlow applications and steps that are not part of a SyncPack until PowerFlow has been licensed.

If you are not deploying PowerFlow on a production or pre-production environment, you can skip the licensing process.

If you are licensing a PowerFlow High Availability cluster, you can run the following licensing process on any node in the cluster. The node does not have to be the leader, and the licensing process does not have to be run on all nodes in the Swarm.

Licensing a PowerFlow System

To license a PowerFlow system:

1. Run the following command on your PowerFlow system to generate the .iskey license file:

   iscli --license --customer "<user_name>" --email <user_email>

   where <user_name> is the first and last name of the user, and <user_email> is the user's email address. For example:

   iscli --license --customer "John Doe" --email jdoe@sciencelogic.com

2. Run an ls command to locate the new license file: customer_key.iskey.

3. Using WinSCP or another utility, copy the .iskey license file to your local machine.

4. Go to the PowerFlow License Request page at the ScienceLogic Support site: https://support.sciencelogic.com/s/integration-service-license-request:



5. For Step 2 of the "Generate License File" process, select the PowerFlow record you want to license.

   You already covered Step 1 of the "Generate License File" process in steps 1-3 of this procedure.

6. Scroll down to Step 3 of the "Generate License File" process and upload the .iskey license file you created in steps 1-3 of this procedure.

7. Click Upload Files.

8. After uploading the license file, click Generate PowerFlow License. A new Licensing page appears:



9. Click the .crt file in the Files pane to download the new .crt license file.

10. Using WinSCP or another file-transfer utility, copy the .crt license file to your PowerFlow system.

11. Upload the .crt license file to the PowerFlow server by running the following command on that server:

    iscli -l -u -f ./<license_name>.crt -H <IP_address> -U <user_name> -p <user_password>

    where <license_name> is the system-generated name for the .crt file, <IP_address> is the IP address of the PowerFlow system, <user_name> is the user name, and <user_password> is the user password. For example:

    iscli -l -u -f ./aCx0x000000CabNCAS.crt -H 10.2.33.1 -U isadmin -p passw0rd

ScienceLogic determines the duration of the license key, not the customer.

If you have any issues licensing your PowerFlow system, please contact your ScienceLogic Customer Success Manager (CSM) or open a new Service Request case under the "Integration Service" category.

Licensing Solution Types

The licensing for the PowerFlow platform was separated into three solution types:

• Standard: This solution lets you import and install SyncPacks published by ScienceLogic and ScienceLogic Professional Services, and to run and schedule PowerFlow applications from those SyncPacks. You cannot customize or create PowerFlow applications or steps with this solution type. Features that are not available display in gray text in the user interface.

• Advanced: This solution contains all of the Standard features, and you can also build your own SyncPacks and upload custom applications and steps using the command-line interface. You can create PowerFlow applications using the PowerFlow command-line interface, but you cannot create and edit applications or steps using the PowerFlow builder in the user interface.

• Premium: This solution contains all of the Advanced features, and you can also use the PowerFlow builder, the low-code/no-code, drag-and-drop interface, to create and edit PowerFlow applications and steps.

A yellow text box appears in the PowerFlow user interface when the license is close to expiring, displaying how many days are left before the license expires. The license status and expiration date also displays on the About page in the PowerFlow user interface.

An unlicensed system will not be able to create PowerFlow applications, steps, or schedules. Unlicensed systems will only be able to run applications that are installed manually through SyncPacks.

Features that are locked by licensing solution type are grayed out. If you click on a grayed-out feature, the user interface will display a notification prompting you to upgrade your license.

Configuring PowerFlow Services

PowerFlow systems use docker-compose and docker-compose-override files to deploy the Docker swarm with PowerFlow services. The default compose and override files are available when the PowerFlow ISO or RPM is installed, and are located in the /opt/iservices/scripts directory.

PowerFlow uses the docker-compose-override.yml file to persistently store user-specific configurations for containers, such as proxy, replica, and additional node settings, as well as deployment constraints. User-specifc changes are kept in this file so that they can be reapplied when the /opt/iservices/scripts/docker-compose.yml file is completely replaced during an RPM upgrade, ensuring that no user-specific configurations are lost. By default, only core services are included in the docker-compose-override.yml file. If extra services need to be added, they should be included as needed.

Applying User-Specific Configurations

To apply user-specific configurations:

1. Either go to the console for the PowerFlow system, or use SSH to access the PowerFlow server.

2. Log in as an isadmin using the appropriate password.

3. Using a text editor, edit the /opt/iservices/scripts/docker-compose-override.yml file. For information about editing the compose-override file, see the Updating the docker-compose-override File section.

4. Save the settings in the file, and then run the /opt/iservices/scripts/compose_override.sh script.

5. Redeploy the updated services by executing the following commands. For example, if the steprunner service was updated:

• docker service rm iservices_steprunner

• docker stack deploy -c /opt/iservices/scripts/docker-compose.yml iservices

Updating the docker-compose-override File

When creating a cluster using the powerflowcontrol (pfctl) autocluster action, configurations for a three node cluster deployment are added to the compose-override file, so that configurations are not lost during an upgrade. The pfctl autoheal action also applies some other configurations as needed.

Adding User-Specific Configurations

Check the docker-compose file for the syntax of the services being used. Also check the official Docker documentation to be familiar with the syntax used.

Scenario 1

To add configurations to services that already exist in the compose-override file, edit the file, go to the service, and add the configuration. For example, when adding an extra environment variable to the contentapi service:

services:
  contentapi:
    environment:
      db_host: couchbase.isnet,couchbase-worker.isnet,couchbase-worker2.isnet
      broker_load_from_backend: 'true'
    deploy:
      replicas: 3

Scenario 2

If the service to which the new configuration needs to be added is not in the compose-override file, add it as a new service, and add the configuration needed. Be sure the tree level is set as expected. For example, when adding the syncpacks_steprunner with an environment variable:

services:
  syncpacks_steprunner:
    environment:
      db_host: couchbase.isnet,couchbase-worker2.isnet,couchbase-worker.isnet

Scenario 3

To add a new service recommended by PowerFlow, such as custom steprunners, use the steprunner service as a base and edit configurations, such as user_queues. The custom service name must start with the prefix steprunner_, and the image name must be set as '{{ services.steprunner.image }}' so the correct image version is used. For example, when adding the steprunner_custom service using a custom queue called custom_queue that has 15 replicas:

  steprunner_custom:
    deploy:
      placement:
        max_replicas_per_node: 5
      replicas: 15
      resources:
        limits:
          memory: 2G
    environment:
      PIP_CONFIG_FILE: /usr/tmp/pip.conf
      additional_worker_args: ' --max-tasks-per-child 1 '
      broker_url: pyamqp://guest@rabbit//
      db_host: couchbase.isnet,couchbase-worker2.isnet,couchbase-worker.isnet
      logdir: /var/log/iservices
      result_backend: redis://redis:6379/0
      user_queues: custom_queue
    image: '{{ services.steprunner.image }}'
    networks:
      isnet: {}
    read_only: true
    secrets:
    - source: encryption_key
    - source: is_pass
    volumes:
    - /var/log/iservices:/var/log/contentapi:rw
    - /var/log/iservices:/var/log/iservices:rw
    - read_only: true
      source: syncpacks_virtualenvs
      target: /var/syncpacks_virtualenvs
      type: volume

The examples above use Jinja2 syntax for the image, which allows the file to be flexible and prevents mismatches during future upgrades. For more complex examples of how to use Jinja2 in the docker-compose-override.yml file, see the Using Jinja2 in the compose-override File section.

To add a new service that is not present in the PowerFlow documentation, you must specify the name of the image and a unique service name for all needed configurations.

Using Jinja2 in the compose-override File

For detailed information on Jinja2 syntax, see the official Jinja2 documentation. Before using Jinja2 syntax in the compose-override file, be aware of the following points:

• The docker-compose.yml file serves as data that the Jinja2 template uses for rendering information.

• Only the docker-compose-override.yml file can include Jinja2 syntax.

• Basic Jinja2 syntax, such as replacing strings, arrays, and numbers will work as expected, but more complex configurations should be tested before use. You can test configuration updates by running the /opt/iservices/scripts/compose_override.sh script, which will show an error if the configuration did not work.

An example using Jinja syntax

The docker-compose.yml file, acting as the data file:

  steprunner:
    .... ....
    image: registry.scilo.tools/sciencelogic/pf-worker:rhel3.2.0
    healthcheck:
      interval: 1m
      retries: 5
      start_period: 2m
      test:
      - CMD-SHELL
      - celery -A ipaascommon.celeryapp:app inspect ping -d celery@$${HOSTNAME}
      timeout: 20s

The docker-compose-override.yml file, acting as the template file. It will render the image and healthcheck configuration for the new steprunner_custom service:

  steprunner_custom:
    ... .. ..
    healthcheck: {{ services.steprunner.healthcheck }}
    image: '{{ services.steprunner.image }}'

The resulting docker-compose.yml file, after running the /opt/iservices/scripts/compose_override.sh script:

  steprunner_custom:
    .......
    healthcheck:
      interval: 1m
      retries: 5
      start_period: 2m
      test:
      - CMD-SHELL
      - celery -A ipaascommon.celeryapp:app inspect ping -d celery@$${HOSTNAME}
      timeout: 20s
    image: registry.scilo.tools/sciencelogic/pf-worker:rhel3.2.0

Configuring a Proxy Server

To configure PowerFlow to use a proxy server:

1. Either go to the console of the PowerFlow system or use SSH to access the PowerFlow server.

2. Log in as isadmin with the appropriate password.

3. Using a text editor like vi, edit the file /opt/iservices/scripts/docker-compose-override.yml.

   PowerFlow uses a docker-compose-override.yml file to persistently store user-specific configurations for containers, such as proxy settings, replica settings, additional node settings, and deploy constraints. The user-specific changes are kept in this file so that they can be re-applied when the /opt/iservices/scripts/docker-compose.yml file is completely replaced on an RPM upgrade, ensuring that no user-specific configurations are lost. By default only main core services are included in the docker-compose-override.yml file, if extra services need to be added they should be included as needed.

4. In the environment section of the steprunner service, add the following lines:

   services:
     steprunner:
       environment:
   	https_proxy: "<proxy_host>"
   	http_proxy: "<proxy_host>"
   	no_proxy: ".isnet"

   If your proxy appears to only use HTTP and not HTTPS, you will need to use http in both https_proxy environment variables.

   If you do not want to use more than one proxy location, you can use the no_proxy setting to specify all of the locations, separated by commas and surrounds by quotation marks. For example: no_proxy: ".isnet,10.1.1.100,10.1.1.101"


   If you want to access external pypi packages while using a proxy, be sure to include pypi.org and files.pythonhosted.org to this section to ensure the proxy enables those locations.

5. In the environment section of the syncpacks_steprunner service, add the following lines. Add the syncpacks_steprunner service to the docker-compose-override.yml file if it's not present there::

   services:
     syncpacks_steprunner:
       environment:
   	https_proxy: "<proxy_host>"
   	http_proxy: "<proxy_host>"
   	no_proxy: ".isnet"

   If your proxy appears to only use HTTP and not HTTPS, you will need to use http in both https_proxy environment variables.

   If you want to access external pypi packages while using a proxy, be sure to include pypi.org and files.pythonhosted.org to this section to ensure the proxy enables those locations.

6. Save the settings in the file and then run the /opt/iservices/scripts/compose_override.sh script.

   The compose_override.sh script validates that the configured docker-compose.yml and docker-compose-override.yml files are syntactically correct. If the settings are correct, the script applies the settings to your existing docker-compose.yml file that is used to actually deploy.

7. Re-deploy the steprunners to use this change by typing the following commands:

   docker service rm iservices_steprunner

   docker stack deploy -c /opt/iservices/scripts/docker-compose.yml iservices

Changing the PowerFlow System Password

The PowerFlow system uses two primary passwords. For consistency, both passwords are the same after you install PowerFlow, but you can change them to separate passwords as needed.

To avoid authentication issues, do not use the dollar sign ($) character in any of the passwords related to PowerFlow.

PowerFlow uses the following passwords:

• The PowerFlow Administrator (isadmin) user password. This is the password that you set during the PowerFlow ISO installation process, and it is only used by the default local Administrator user (isadmin). You use this password to log in to the PowerFlow user interface and to verify API requests and database actions.
  This password is set as both the "Linux host isadmin" user and in the /etc/iservices/is_pass file that is mounted into the PowerFlow stack as a "Docker secret". Because it is mounted as a secret, all necessary containers are aware of this password in a secure manner.
  Alternatively, you can enable third-party authentication, such as LDAP or AD, and authenticate with credentials other than isadmin. However, you will need to set the user policies for those LDAP users first with the default isadmin user. For more information, see Managing Users in PowerFlow.

• The Linux Host OS SSH password. This is the password you use to SSH and to log in to isadmin. You can change this password using the standard Linux passwd command or another credential management application to manage this user.
  You can also disable this Linux user and add your own user if you want. The PowerFlow containers and applications do not use or know this Linux login password, and this password does not need to be the same between nodes in a cluster. This is a standard Linux Host OS password.

Updating the PowerFlow Administrator (isadmin) user password

There are two ways to update the PowerFlow Administrator (isadmin) user password. ScienceLogic recommends using the powerflowcontrol (pfctl) tool if possible.

Starting in PowerFlow version 3.0.0, you can use the following command to update the PowerFlow Administrator (isadmin) user password:

pfctl --host pf_node_ip '<isadmin:host_password>' password set -p '<new_password>'

The old application (UI) password for the PowerFlow Administrator (isadmin) does not need to be provided in the command.

You can use the following command to update the PowerFlow Administrator (isadmin) user password in cluster environments. Use all of the PowerFlow nodes in the command.

For example, if you have 3 nodes, provide the hosts, users, and passwords of the 3 nodes .

pfctl ---host node1_ip '<isadmin:host_password>' ---host node2_ip '<isadmin:host_password>' ---host node3_ip '<isadmin:host_password>' password set -p '<new_password>'

After the password is correctly updated, make sure the stack is removed and redeployed:

1. Remove the stack using the following command:

   docker stack rm iservices

2. Wait until the services are down. Check with the following command:

   watch docker ps

3. Redeploy the stack using the following command:

   docker stack deploy --resolve-image=never -c /opt/iservices/scripts/docker-compose.yml iservices

Next, run the powerflowcontrol (pfctl) healthcheck and autoheal node or cluster actions to make sure the application is healthy.

Updating the PowerFlow Administrator (isadmin) User Password with the ipasswd Script

To change the PowerFlow Administrator (isadmin) user password using the ispasswd script:

1. You can change the mounted isadmin password secret (which is used to authenticate via API by default) and the Couchbase credentials on the PowerFlow stack by running the ispasswd script on any node running PowerFlow in the stack:

   /opt/iservices/scripts/ispasswd

2. Follow the prompts to reset the password. The password must be at least six characters and no more than 24 characters, and all special characters are supported except the dollar sign ($) character.

   Running the ispasswd script automatically changes the password for all PowerFlow application actions that require credentials for the isadmin user.

3. If you have multiple nodes, copy /etc/iservices/is_pass file, which was just updated by the ispasswd script, to all other manager nodes in the cluster. You need to copy this password file across all nodes in case you deploy from a different node than the node where you changed the password. The need to manually copy the password to all nodes will be removed in a future release of PowerFlow.

Configuring Security Settings

This topic explains how to change the HTTPS certificate used by PowerFlow, and it also describes password and encryption key security.

Changing the HTTPS Certificate

The PowerFlow user interface only accepts communications over HTTPS. By default, HTTPS is configured using an internal, self-signed certificate.

You can specify the HTTPS certificate to use in your environment by mounting the following two files in the user interface (gui) service:

• /etc/iservices/is_key.pem
• /etc/iservices/is_cert.pem

The SSL certificate for the PowerFlow system only requires the HOST_ADDRESS field to be defined in the certificate. That certificate and key must be identical across all nodes. If needed, you can also add non-HOST_ADDRESS IPs to the Subject Alternative Name field to prevent an insecure warning when visiting the non-HOST_ADDRESS IP.

If you are using a load balancer, the certificates installed on the load balancer should use and provide the hostname for the load balancer, not the PowerFlow nodes. The SSL certificates should always match the IP or hostname that exists in the HOST_ADDRESS setting in /etc/iservices/isconfig.yml. If you are using a load balancer, the HOST_ADDRESS must also be the IP address for the load balancer.

If you are using a clustered configuration for PowerFlow, you will need to copy the key and certificate to the same location on the node.

To specify the HTTPS certificate to use in your environment:

1. Copy the key and certificate files to all PowerFlow hosts that are part of the cluster.

2. Ensure the ownership of the key and certificate files are set to UID 998 and GID 996, as required inside the gui container, and modify the permissions to 640 to grant access to the specified user and group. Execute the following command in the PowerFlow host:

sudo chown 998:996 key_file_path cert_file_path

sudo chmod 640 key_file_path cert_file_path

3. Modify the /opt/iservices/scripts/docker-compose-override.yml file and mount a volume to the gui service. The following code is an example of the volume specification:

   volumes:
     - "<path to IS key>:/etc/iservices/is_key.pem"
     - "<path to IS certificate>:/etc/iservices/is_cert.pem"

   where:

   • <path to IS key> is the path to the key in the PowerFlow host

   • <path to IS certificate> is the path to the certificate in the PowerFlow host

   Do not change the text after the colons (:/etc/iservices/is_key.pem and :/etc/iservices/is_cert.pem), which are the paths to the key and certificate within the container.

   The location of the key and certificate files in the PowerFlow host does not need to be the same as within the container. It can be in a different location, such as /home/isadmin.

4. Run the following script to validate and apply the change to the /opt/iservices/scripts/docker-compose.yml file:

   /opt/iservices/scripts/compose_override.sh

   The compose_override.sh script validates that the configured docker-compose.yml and docker-compose-override.yml files are syntactically correct. If the settings are correct, the script applies the settings to your existing docker-compose.yml file that is used to actually deploy.

5. Review the /opt/iservices/scripts/docker-compose.yml file and make sure the new volume is set for the gui service.

6. Re-deploy the gui service by running the following commands:

   docker service rm iservices_gui

   docker stack deploy --resolve-image=never -c /opt/iservices/scripts/docker-compose.yml iservices

Using Password and Encryption Key Security

When you install the PowerFlow platform, you specified the PowerFlow root password. This root password is also the default isadmin password:

• The root/admin password is saved in a root read-only file here: /etc/iservices/is_pass
• A backup password file is also saved in a root read-only file here: /opt/iservices/backup/is_pass

The user-created root password is also the default PowerFlow password for couchbase (:8091) and all API communications. The PowerFlow platform generates a unique encryption key for every platform installation:

• The encryption key exists in a root read-only file here: /etc/iservices/encryption_key
• A backup encryption key file is also saved in a root read-only file here: /opt/iservices/backup/encryption_key

This encryption key is different from the HTTPS certificate key discussed in the previous topic.

You can use the encryption key to encrypt all internal passwords and user-specified data. You can encrypt any value in a configuration by specifying "encrypted": true, when you POST that configuration setting to the API. There is also an option in the PowerFlow user interface to select encrypted. Encrypted values use the same randomly-generated encryption key.

User-created passwords and encryption keys are securely exposed in the Docker containers using Docker secrets at https://docs.docker.com/engine/swarm/secrets/ to ensure secure handling of information between containers.

The encryption key must be identical between two PowerFlow systems if you plan to migrate from one to another. The encryption key must be identical between High Availability or Disaster Recovery systems as well.

PowerFlow supports all special characters in passwords.

NOTE: For detailed security information about the configuration of Docker Enterprise, see the SL1 PowerFlow: System Security Plan for Docker Enterprise document.

Configuring Additional Elements of PowerFlow

If you have multiple workers running on the same PowerFlow system, you might want to limit the amount of memory allocated for each worker. This helps prevent memory leaks, and also prevents one worker using too many resources and starving other workers. You can apply these limits in two ways:

• Set a hard memory limit in Docker (this is the default)
• Set a soft memory limit in the worker environment

Setting a Hard Memory Limit in Docker

Setting a memory limit for the worker containers in your docker-compose.yml file sets a hard limit. If you set a memory limit for the workers in the docker-compose file and a worker exceeds the limit, the container is terminated via SIGKILL.

If the currently running task caused memory usage to go above the limit, that task might not be completed, and the worker container is terminated in favor of a new worker. This setting helps to prevent a worker from endlessly running and consuming all memory on the PowerFlow system.

You can configure the hard memory limit in the steprunner service of the docker-compose.yml file:

deploy:

resources:

limits:

memory: 2G

Setting a Soft Memory Limit in the Worker Environment

You can set the memory limit for a worker application, and not at the Docker level. Setting the memory limit at the application level differs from the hard memory limit in Docker in that if a worker exceeds the specified memory limit, that worker is not immediately terminated via SIGKILL.

Instead, if a worker exceeds the soft memory limit, the worker waits until the currently running task is completed to recycle itself and start a new process. As a result, tasks will complete if a worker crosses the memory limit, but if a task is running infinitely with a memory leak, that task might consume all memory on the host.

The soft memory limit is less safe from memory leaks than the hard memory limit.

You can configure the soft memory limit with the worker environment variables. The value is in KiB (1024 bytes). Also, each worker instance contains three processes for running tasks. The memory limit applies to each individual instance, and not the container as a whole. For example, a 2 GB memory limit for the container would translate to 2 GB divided by three, or about 700 MB for each worker:

steprunner:

image: repository.auto.sciencelogic.local:5000/is-worker:2.6.0

environment:

additional_worker_args: ' --max-memory-per-child 700000'

PowerFlow Task Processing and Memory Handling

Review the settings in this section to prevent an "Out of Memory" error, also called an "Oomkill" error or exit code 137. These errors occur when a container uses more memory than the container has been allotted.

This section will help you to recognize and diagnose these situations, and determine what additional configurations are available when working with a PowerFlow system that is running out of memory.

Background

By default steprunner containers have a 2 GB memory limit with three process threads by default. Limits for containers are set in the docker-compose file.

Use the docker stats command to see what the current memory usage of containers are in PowerFlow, along with current memory usage for those containers.

CPU and Memory Requirements for PowerFlow

The following table lists the CPU and memory requirements based on the number of synced objects for a PowerFlow system:

Minimum Number of Synced Objects	CPU Cores	Memory RAM (GB)	Hard Disk (GB)
30,000	8	24	100
65,000	8	32	100
100,000	8	64	200

Typical PowerFlow Deployments:

• Standard Single-node Deployment (1 Node): One node, 8 CPU, 24 GB memory minimum, preferably 34 GB to 56 GB memory, depending on workload sizes.

• Standard Three-node Cluster (3 Nodes): Three nodes, 8 CPU, 24 GB memory minimum, preferably 34 GB to 56 GB memory, depending on workload sizes.

• 3+ Node Cluster with Separate Workers (4 or More Nodes): Three nodes, 8 CPU, 24 GB memory minimum, preferably 34 GB to 56 GB memory, depending on workload sizes.

Recommended Memory Allocation of PowerFlow Nodes

The following sizings will automatically be applied if you run powerfcontrol (pfctl) actions such as apply 16GB overrides and apply 32GB overrides. These commands should only be run in a Software-as-a-Service (SaaS) environment. For more information about the pfctl actions, see apply_<n>GB_override, verify_<n>GB_override.

Template Size	Device Load
16 GB	25,000 to 30,000
32 GB	30,000 to 70,000
64 GB	70,0000 to 350,000
128 GB	350,000 and above

SaaS Deployments

The following settings are specifically for Software-as-a-Service (SaaS) environments, and they ensure full replication of all services in any failover scenario.

Example Code: docker-compose for SaaS

16 GB Deployments

The following settings support up to approximately 25,000-30,000 devices, depending on relationship depth.

Example Code: docker-compose for 16 GB Deployments

Allocations (per node):

• Swarm leader: between 2 to 4 GB left over on node
• Couchbase: reserves 1.5 GB memory, uses 1.5 to 4 GB, depending on operation
• Flower, pypiserver, dexserver, scheduler: no limit by default, never use more than 100 MB
• RabbitMQ: no limit, typically low usage (less than 100 MB), might spike with heavy loads
• Contentapi: 1 GB memory limit
• Redis: 3 GB soft limit, 5 GB hard limit; after 5 GB, Redis will automatically eject older data for new (reduced)
• 1x steprunners: 3 GB memory limit each (steprunner count decreased, memory limit increased)

Total limits/max expected memory usage: 4 GB + 4 GB + 500 MB + 1 GB + 3 GB +3 GB = 15.5GB/16GB

32 GB Deployments

The following settings support up to approximately 70,000 devices, depending on relationship depth.

Example Code: docker-compose for 32 GB Deployments

Allocations (per node):

• Swarm leader: between 2-4 GB left over on node
• Couchbase: reserves 1.5 GB memory, uses 1.5 to 4GB, depending on operation
• Flower, pypiserver, dexserver, scheduler: no limit by default, never uses more than 100 MB
• RabbitMQ: should anticipate for 1 GB at larger sizes
• Contentapi: 2 GB memory limit (in a healthy running environment, should be less than 100 MB)
• Redis: 3 GB soft limit, 5 GB hard limit; after 3 GB, Redis will automatically eject older data for new (reduced)
• 2x steprunners: 7 GB memory limit each (steprunner count decreased, memory limit increased)

Total limits/max expected memory usage: 4 GB + 4 GB + 200 MB + 1 GB + 2 GB + 4 GB +7(2) GB = 29.2/32GB

64 GB Deployments

The following settings support over 70,000 devices, depending on relationship depth.

Example Code: docker-compose for 64 GB Deployments

If you use the following format for the names of the custom steprunners, they will display on the PowerFlow Control Tower page: steprunner_<name>.

Other actions needed:

• Increase Couchbase Allocations: increase data bucket allocation by 5 GB, and increase index allocation by 5 GB
• Update the current Device Sync or Interface Sync applications, and specify them to run on the xlsync queue

Allocations (per node):

• Swarm leader: between 2 to 4 GB left over on node
• Couchbase: reserves 1.5 GB memory, uses 1.5 to 4 GB standard; add 10 GB for heavy scale readiness (5 GB to data bucket 5 to index), up to 14 GB
• Flower, pypiserver, dexserver, scheduler: no limit by default; never uses more than 100 MB
• RabbitMQ: anticipate for 4 GB at extremely larger sizes
• Contentapi. 2 GB memory limit (in a healthy running environment, should be less than 100 MB)
• Redis : 3 GB soft limit, 5 GB hard limit
• 4x steprunners: 2 GB memory limit each (steprunner count decreased, memory limit increased), 8 GB total
• 1x steprunner: 15 GB memory limit (xlqueue steprunner), 15 GB total

Total limits/max expected memory usage: 4GB + 14GB +100mb + 4gb + 2GB + 5GB + 8GB + 15GB = 52GB/64

There is still approximately 12 GB to be allocated to needed services. This configuration and allotment may change depending on future assessment of customer systems.

128 GB Deployments

This deployment template is only to be used for customers with a very large number of devices, such as over 350,000 devices. For a deployment this large, you will need append additional customizations and queues to the following template. This is just a baseline; discuss with ScienceLogic if you plan to use a 128 GB deployment.

Example Code: docker-compose for 128 GB Deployments

Differences from 64 GB Deployments

• The default queue worker count was tripled. These additional workers may be dedicated to any other queue as needed by your customizations.
• Increased redis limits to allow for more processing.

Allocations (per node)

• Swarm leader: Between 2-4 GB left over on node.
• Couchbase: Reserves 1.5 GB memory, uses 1.5 – 4 GB standard, +10 GB for heavy scale readiness (5 GB to data bucket, 5 GB to index): up to 14 GB
• Flower, pypiserver, dexserver, scheduler: No limit by default. Never uses more than 100 MB.
• Rabbitmq: Should anticipate 6 GB at extremely larger sizes.
• Contentapi: 2 GB memory limit. Iin a healthy running environment, should be less than 100 MB.
• Redis: 6 GB soft limit, 12 GB hard limit.
• 24x steprunners: 2 GB memory limit each (steprunner count decreased, memory limit increased): 48 GB
• 1x steprunner: 15 GB memory limit (xlqueue steprunner): 15 GB

Total limits/max expected memory usage:

4 GB + 14 GB +100 MB + 6 GB + 2 GB + 12 GB + 48 GB + 15GB = 101 GB/128

Identifying Oomkills

Typically Oomkills occur only on PowerFlow systems with over 8,000 devices with many relationships or 30,000 interfaces that are being synced.

To identify Oomkills:

1. Use the healthcheck action with the powerflowcontrol (pfctl) command-line utitlity to identify the occurrence. Sample feedback that shows an Oomkill situation:



2. Log in to the node where the container failed.

3. From the node where the container failed, run the following command:

   journalctl -k | grep -i -e memory -e oom

4. Check the result for any out of memory events that caused the container to stop. Such an event typically looks like the following:

   is-scale-03 kernel: Out of memory: Kill process 5946 (redis-server) score 575 or sacrifice child

Common Causes of High Memory and Oomkills

• Large-scale Device Sync, Attribute Sync, and Interface Syncs can cause out of memory events. The following situations might need more than the default limit allocation:

• Device Sync for about 9,000 to 12,000 devices, with large amounts of relationships
• A large-scale Attribute Sync with large numbers of devices
• An large-scale Interface Sync with about 10,000 or more interfaces

• Python can be very resource-intensive, especially when it comes to loading or dumping large JSON files. JSON dumps and JSON loads can be inefficient and use more memory than expected. To avoid Oomkill in these situations, instead of using JSON for serialization, you can "pickle" the dict() object from Python and then dump or load that.
• A cursor size issue can occur when GraphQL responses contain extremely large cursor sizes, increasing the amount of data returned by SL1 when making API requests. This issue was resolved in SL1 11.1.2 and later.

Questions to Ask when Experiencing Oomkills

• How many devices or interfaces are being synced?
• How often are the devices or interfaces being synced?
• What does the schedule look like? How many scheduled large integrations are running at the same time?
• What is the likelihood that those schedules are hitting double large syncs on one worker?
• If this is a custom SyncPack, should the workload be using this much memory? Can I optimize, or maybe paginate?

Avoiding Oomkills

The following table explains how to configure your PowerFlow system if you are encountering Oomkills:

Configuration	Steps	Requirements	Impact
Update scheduled applications	Review all scheduled application syncs and make sure you do not schedule two very large syncs to run at the same time of day.	None.	Separate timings of large-scale runs.
Increase the memory limit (SaaS only, not on-premises PowerFlow systems)	Increase the memory in the docker-compose file.	Host must have enough additional memory to allocate.	More rooms for tasks to run concurrently on one worker, increased memory allocation to host.
Reduce worker thread count	Set worker_threads=1 for the steprunner environment variable in the docker-compose file.	None.	More room for large tasks to run, but fewer concurrent tasks (throughput).
Dedicated worker nodes, dedicated queues	Create dedicated queues for certain workloads to run on only designated workers.	Additional nodes are needed.	Provides dedicated resources for specific workflows. Generally used for very environment-demanding workloads.

After making any of the above configuration changes, be sure to run the healthcheck and autoheal actions with thepowerflowcontrol (pfctl) command-line utility before you log out of PowerFlow and redeploy the PowerFlow stack. For more information, see healthcheck and autoheal.

Avoiding Node Exhaustion

Node exhaustion occurs when more memory is allocated to containers than is available on the host. If memory is exhausted on the Swarm leader node and the cluster operations cannot process, all containers will restart. You will see "context deadline exceeded" in docker logs if you run journalctl –-no-page |grep docker |grep err.

The following table explains how to configure you PowerFlow system to prevent node exhaustion from occurring again:

Configuration	Steps	Requirements	Impact
Reduce steprunner replica count	Reduce the replica count of the steprunner in the docker-compose file.	None.	Fewer concurrent processes, less memory usage on host.
Reduce redis memory limits	Set the MAXMEMORY environment variable in the docker-compose file for redis (soft limit), reduce memory limit in docker-compose (hard limit)	None.	Less possible room for cached data in very large syncs, less ability for heavy concurrent runs at the same time, less ability to view result data in the user interface.
Dedicated worker nodes, dedicated queues	Create dedicated queues for certain workloads to run on only designated workers	Additional nodes are needed.	Provides dedicated resources for specific workflows. Generally used for very environment-demanding workloads.
Drained manager	Similar to dedicated worker nodes. This offloads swarm management work to another node.	Additional (smaller) nodes are needed.	Eliminates possibility of cluster logic failure due to memory exhaustion. Alternatively, just make sure the existing nodes have enough room.

After making any of the above configuration changes, be sure to run the healthcheck and autoheal actions with thepowerflowcontrol (pfctl) command-line utility before you log out of PowerFlow and redeploy the PowerFlow stack. For more information, see healthcheck and autoheal.



Best Practices for Running PowerFlow with Production Workloads

If you are running PowerFlow in a Software-as-a-Service (SaaS) environment in the cloud, consider the following best practices to avoid failed PowerFlow Syncs and memory issues.

Avoid Debug Logging for Large-scale Runs

When you run a large-scale Device Sync or Interface Sync in Debug mode, PowerFlow logs all of the data that is requested, compared, and sen. Using Debug mode in this way moight cause the PowerFlow system to appear to be unresponsive for a period of time, or until the issue is identified and resolved by ScienceLogic Support.

If you need detailed logs for a large number of events, you should use the Info log level instead.

Additional Queues Might be Needed for Large-scale Runs

SaaS environments for PowerFlow are configured by default with a single queue. All Syncs and tasks run in a "first-in, first-out" (FIFO) manner. If an extremely large event spike occurs, or if a backlog of tasks are triggered, PowerFlow will backlog all tasks until the queue is processed. This default is more than sufficient for most PowerFlow environment, and it provides a consistent balance of throughput, scale, and replication for each of your Syncs.

If you want to separate workloads for large-scale environments, such as Device Sync and Incident Sync, you can allocate additional dedicated queues or nodes. To request additional dedicated queues, contact ScienceLogic Support.

Avoid Running Large-scale Syncs Simultaneously

ScienceLogic recommends that you do not simultaneously run multiple Device Syncs or Interface Syncs in large-scale environments (over 15,000 devices). Querying for all devices or interfaces in both ServiceNow and SL1 might have a large performance impact on the PowerFlow system and other systems involved.

If you want to ensure continually optimized performance, run only one large Sync at a time, and schedule the Syncs to run a different times.

For customers of a Managed Service Provider (MSP), ScienceLogic can provide a dedicated node for processing multiple Device Syncs. If you are interested in this deployment, contact ScienceLogic Support.

PowerFlow Management Endpoints

This section provides technical details about managing PowerFlow. The following information is also available in the PowerPacks in Using SL1 to Monitor SL1 PowerFlow.

Flower API

Celery Flower is a web-based tool for monitoring PowerFlow tasks and workers. You can access Flower at https://<IP of PowerFlow>/flower/workers.

Flower lets you see task progress, details, and worker status:

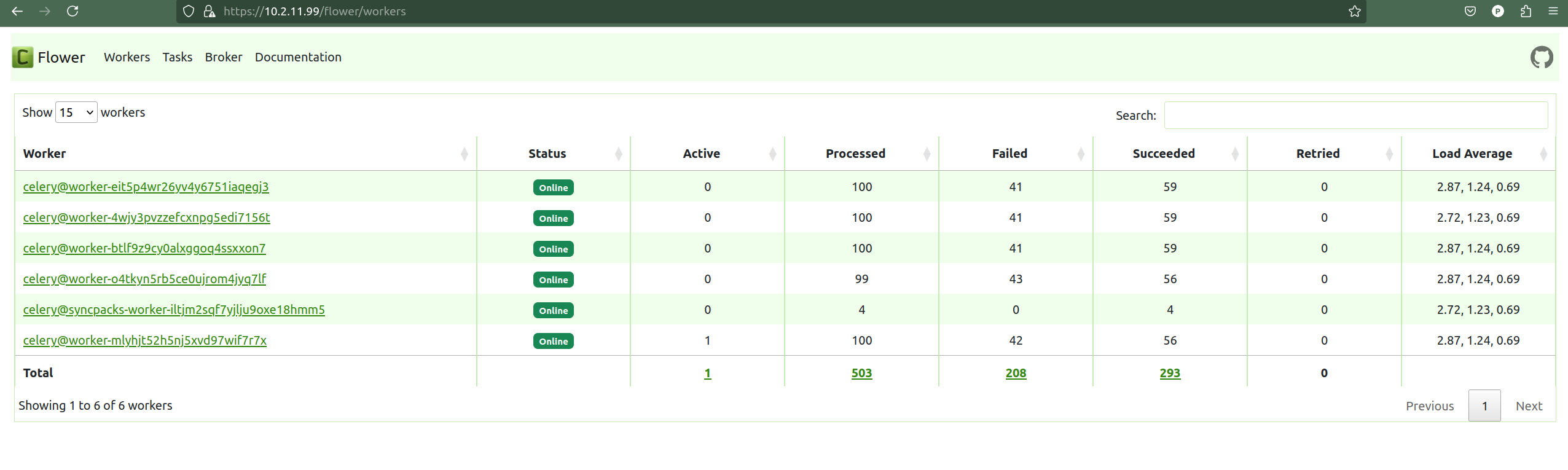

The following Flower API endpoints return data about the Flower tasks, queues, and workers. The tasks endpoint returns data about task status, runtime, exceptions, and application names. You can filter this endpoint to retrieve a subset of information, and you can combine filters to return a more specific data set.

/flower/api/tasks. Retrieve a list of all tasks.

/flower/api/tasks?app_id={app_id}. Retrieve a list of tasks filtered by app_id.

/flower/api/tasks?app_name={app_name}. Retrieve a list of tasks filtered by app_name.

/flower/api/tasks?started_start=1539808543&started_end=1539808544. Retrieve a list of all tasks received within a time range.

/flower/api/tasks?state=FAILURE|SUCCESS. Retrieve a list of tasks filtered by state.

/flower/api/workers. Retrieve a list of all queues and workers

For more information, see the Flower API Reference at https://flower.readthedocs.io/en/latest/api.html.

If you use the ScienceLogic: PowerFlow PowerPack to collect this task information, the PowerPack will create events in SL1 if a Flower task fails. For more information, see Using SL1 to Monitor PowerFlow.

Couchbase API

The Couchbase Server is an open-source database software that can be used for building scalable, interactive, and high-performance applications. Built using NoSQL technology, Couchbase Server can be used in either a standalone or cluster configuration.

The following image shows the CouchBase user interface, which you can access at port 8091, such as https://<IP of PowerFlow: 8091:

The following Couchbase API endpoints return data about the Couchbase service. The pools endpoint represents the Couchbase cluster. In the case of PowerFlow, each node is a Docker service, and buckets represent the document-based data containers. These endpoints return configuration and statistical data about each of their corresponding Couchbase components.

<hostname_of_PowerFlow_system>:8091/pools/default. Retrieve a list of pools and nodes.

<hostname_of_PowerFlow_system>:8091/pools/default/buckets. Retrieve a list of buckets.

For more information, see the Couchbase API Reference.

You can also use the Couchbase PowerPack to collect this information. For more information, see Using SL1 to Monitor PowerFlow.

RabbitMQ

RabbitMQ is an open-source message-broker software that originally implemented the Advanced Message Queuing Protocol and has since been extended with a plug-in architecture to support Streaming Text Oriented Messaging Protocol, Message Queuing Telemetry Transport, and other protocols.

The following image shows the RabbitMQ user interface, which you can access at port 15672, such as https://<IP of PowerFlow: 15672:

Docker Statistics

You can collect Docker information by using SSH to connect to the Docker socket. You cannot currently retrieve Docker information by using the API.

To collect Docker statistics:

1. Use SSH to connect to the PowerFlow instance.

2. Run the following command:

   curl --unix-socket /var/run/docker.sock http://docker<PATH>

   where <PATH> is one of the following values:

• /info
• /containers/json
• /images/json
• /swarm
• /nodes
• /tasks
• /services

You can also use the Docker PowerPack to collect this information. For more information, see Using SL1 to Monitor PowerFlow.
