Dashboards

Download this manual as a PDF file

The following sections describe the device dashboards that are included in the Cisco: Wireless PowerPack:

Device Dashboards

The Cisco: Wireless PowerPack includes device dashboards that provide summary information for Cisco WLC component devices. Each of the device dashboards in the Cisco: Wireless PowerPack is set as the default device dashboard for the equivalent device class.

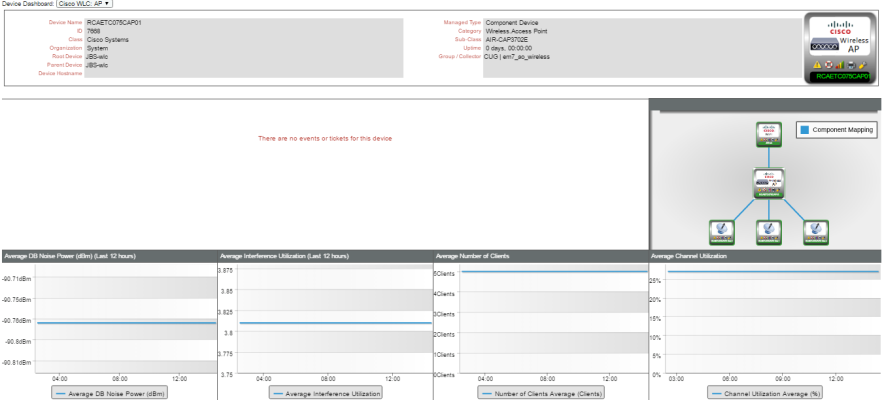

Cisco WLC: AP Dashboard

The Cisco WLC: AP device dashboard displays the following information about Cisco wireless access points:

  • Events and tickets on the device
  • A component map
  • Average decibel (dB) noise over the past 12 hours
  • Average interface utilization over the past 12 hours
  • Average number of clients across all interfaces on the access point for the most recent poll
  • Average channel utilization across all interfaces on the access point for the most recent poll

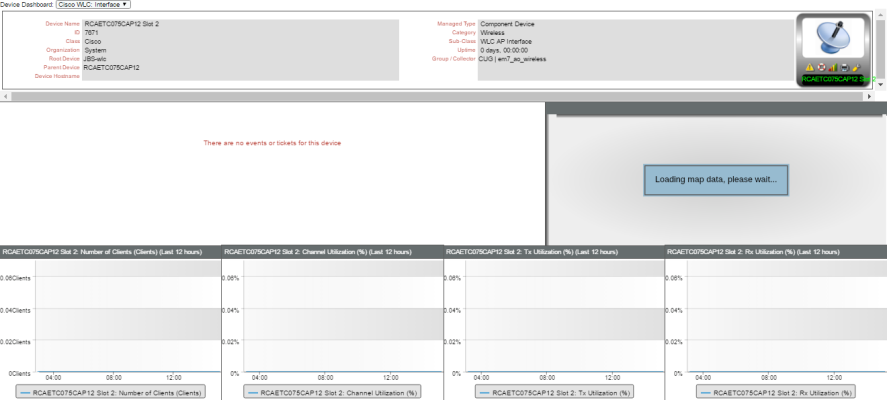

Cisco WLC: Interface Dashboard

The Cisco WLC: Interface dashboard displays the following information about Cisco wireless access point interfaces:

  • Events and tickets on the device
  • A component map
  • Number of clients over the past 12 hours
  • Channel utilization over the past 12 hours
  • Tx utilization over the past 12 hours
  • Rx utilization over the past 12 hours
