Overview Configuration and Discovery

Download this manual as a PDF file

The following sections describe how to configure and discover Dell EMC VMAX and PowerMax systems for monitoring by SL1 using the Dell EMC: VMAX and PowerMax Unisphere API PowerPack:

Prerequisites for Monitoring Dell EMC VMAX and PowerMax Systems

Before you can monitor Dell EMC VMAX and PowerMax systems using the Dell EMC: VMAX and PowerMax Unisphere API PowerPack, you must have the following information about the Unisphere API that has already been properly configured:

  • Username and password for a user with access to the Unisphere REST API
  • IP address and port for the Unisphere
  • PowerMax API version 8.4 or 9.2

Creating a SOAP/XML Credential for Dell EMC VMAX and PowerMax Systems

To configure SL1 to monitor Dell EMC VMAX and PowerMax storage systems, you must first create a SOAP/XML credential. This credential allows the Dynamic Applications in the "Dell EMC: VMAX and PowerMax Unisphere API" PowerPack to use the Unisphere REST API. An example SOAP/XML credential that you can edit for your own use is included in the PowerPack.

To create a SOAP/XML credential to access the Unisphere REST API:

  1. Go to the Credential Management page (Manage > Credentials).

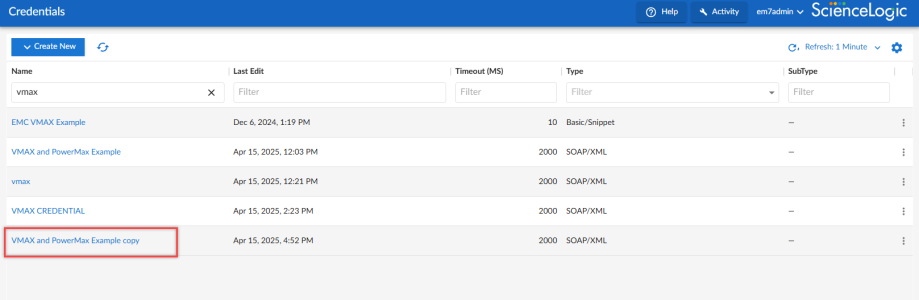

  2. Locate the VMAX and PowerMax Example credential, then click its Actions icon (). Select Duplicate from the dropdown field. The VMAX and PowerMax Example copy credential appears.

Copied credential on the guided discovery workflow.

  1. Click the Action icon () for the VMAX and PowerMax Example copy credential. Select Edit and the Edit Credential page appears.

    2. Creating a SOAP/XML credential for Dell VMAX and PowerMax

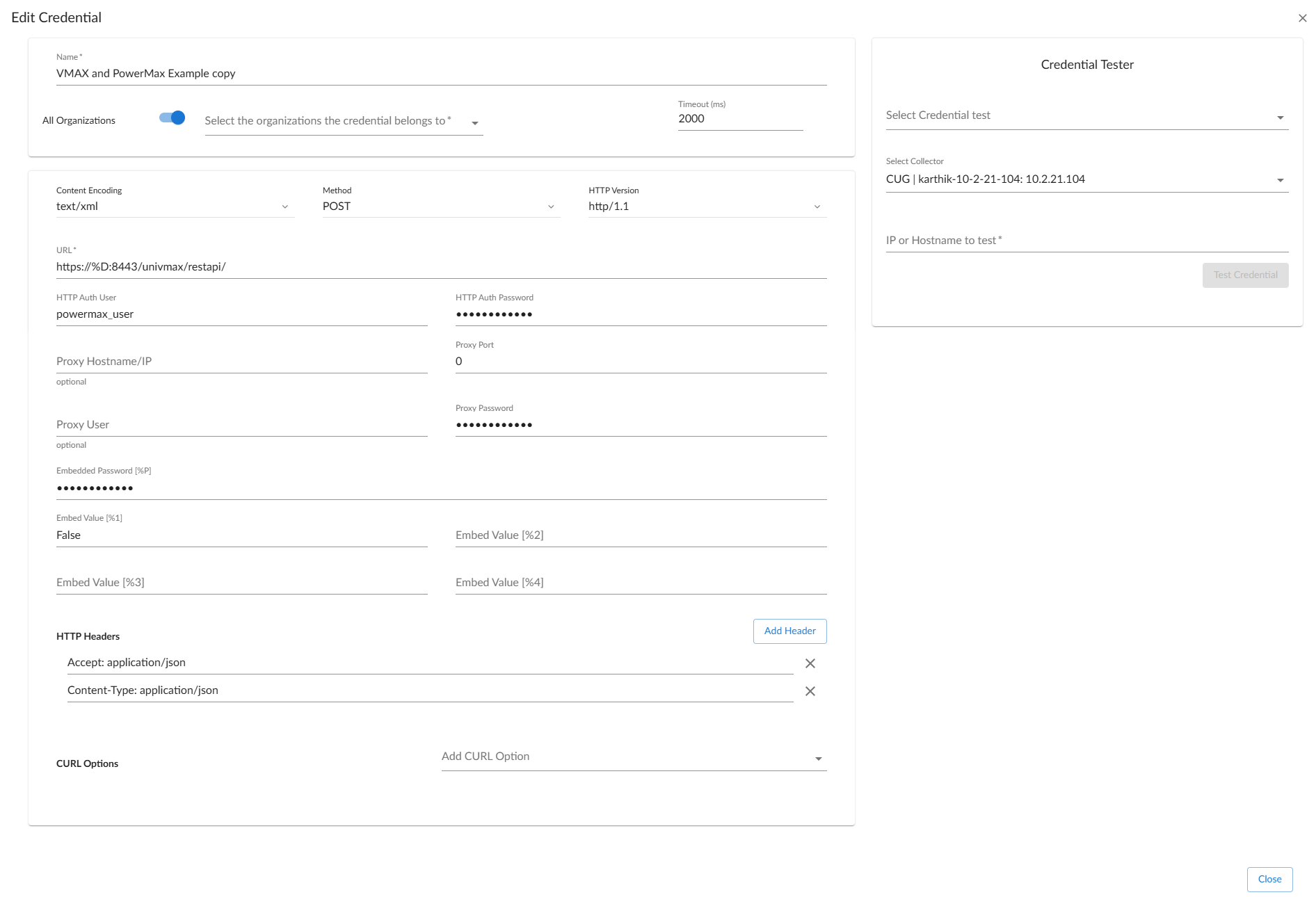

  2. Enter values in the following fields:
  • Name. Type a new name for the credential.
  • All Organizations. Toggle on (blue) to align the credential to all organizations, or toggle off (gray) and then select one or more specific organizations from the Select the organizations the credential belongs to drop-down field to align the credential with those specific organizations.
  • Timeout.
  • URL. Type the URL for the Dell EMC VMAX account controller.
  • HTTP Auth User. Type the username of an Dell EMC VMAX user account that is assigned the "Applications and Dashboard Viewer" role in the Dell EMC VMAX portal.
  • HTTP Auth Password. Type the Dell EMC VMAX user account password.
  • Embed Value [%2]. Type the PowerMax version you are using. Version 8.4 or 9.2 are acceptable.

NOTE: The HTTP Headers that are included in the example are required to receive a response from the Unisphere REST API. Do not delete or edit them.

  1. Click Save & Close to update your credential.

Discovering Dell EMC VMAX and PowerMax Systems Using Guided Discovery

To discover Dell EMC VMAX devices using the guided discovery workflow:

  1. Go to the Devices page () or the Discovery Session page (Devices > Discovery Sessions) and click the Add Devices button. The Guided Discovery Workflowpage appears.

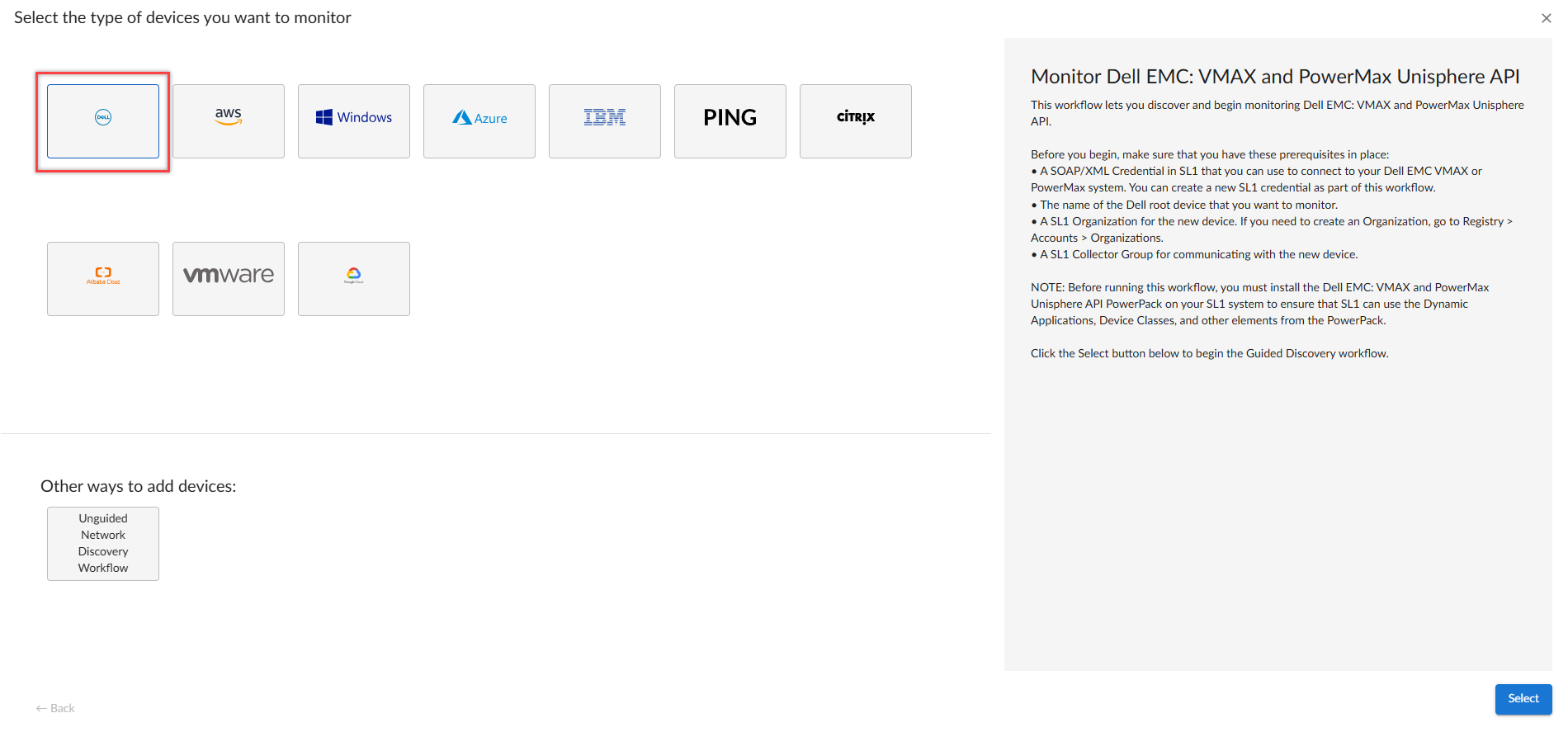

  2. Click on the Dell EMC VMAX button. Additional information about the requirements for discovery appears in the General Information pane to the right.

    3. Select page for Dell Guided Discovery Workflow.

  1. On the Credential Selection page of the guided discovery process, select the VMAX PowerMax credential radio button that you configured and then click Next. The Root Device Details page appears.

    2. Root Device Page for the guided discovery workflow

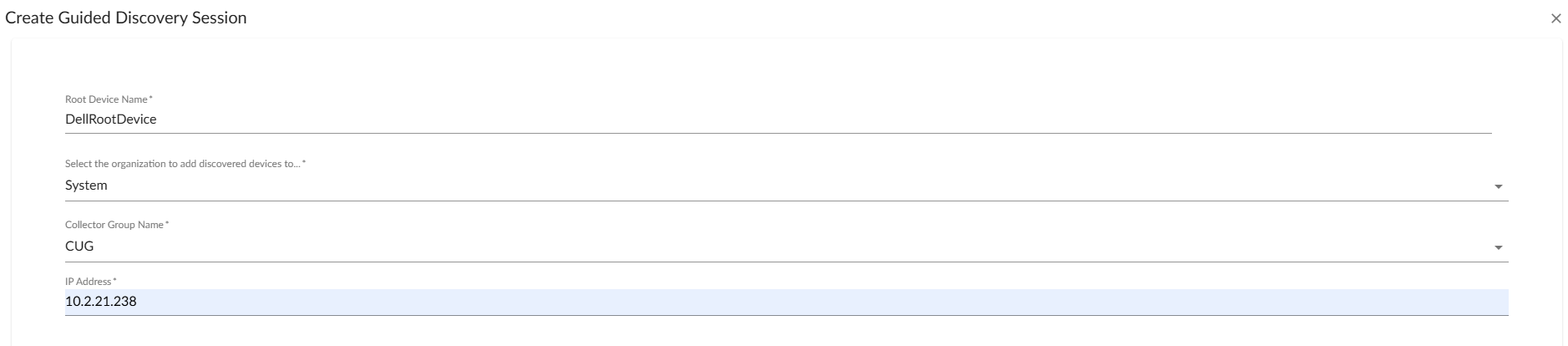

  2. Complete the following fields:
  • Root Device Name. Type the name of the cluster you want to monitor. Ensure you provide a unique cluster name to help identify the specific cluster being monitored, especially if you have multiple clusters. ScienceLogic does not recommend that you use the default name provided by the guided discovery.
  • Select the organization to add discovered devices. Select the name of the organization to which you want to add the discovered device.
  • Collector Group Name. Collector Group Name. Select an existing collector group to communicate with the discovered device.
  1. Click Next. SL1 creates the Dell EMC VMAX root device with the appropriate Device Class assigned to is and aligns the relevant Dynamic Applications. The Final Summary page appears.

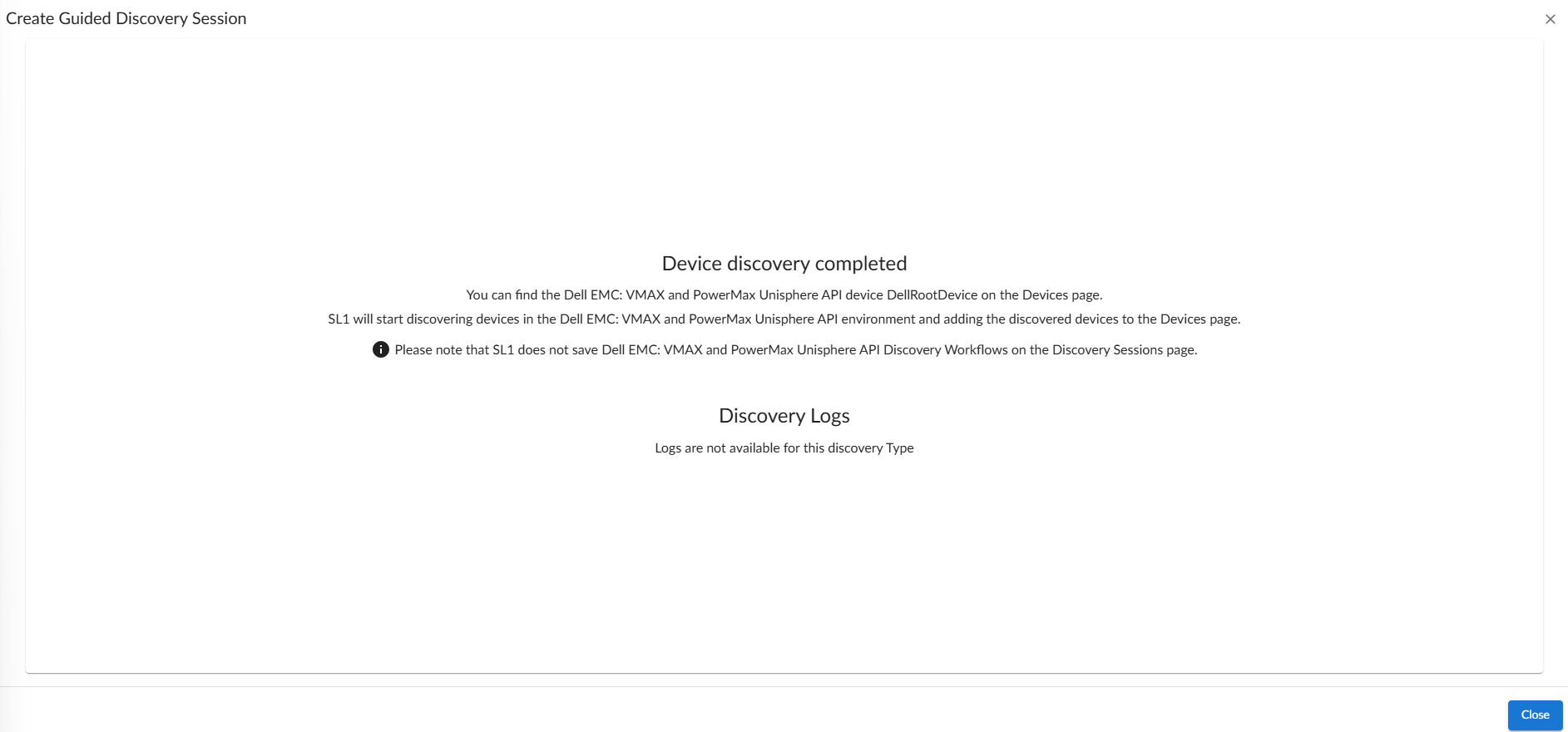

    2. Discovery complete message

  2. Click Close.

The results of a guided discovery do not display on the Discovery Sessions page (Devices > Discovery Sessions).

The guided discovery process can only be executed once for a specific device IP. If you run the guided discovery a second time for the same device IP, you will receive an error.

In some cases, you might have to remove the headers as they might prevent discovery. For more information, see the following Knowledge Base article https://support.sciencelogic.com/s/article/16579.

Viewing Dell EMC VMAX and PowerMax Devices

After discovering your Dell EMC VMAX or PowerMax system, SL1 will create component devices that represent each component in your system.

In addition to the Device Manager page, you can view the VMAX or PowerMax system and all associated component devices in the following places in the user interface:

  • The Device View modal page (click the bar-graph icon []for a device, then click the Topology tab) displays a map of the selected device and all of the devices with which it has parent-child relationships. Double-clicking any of the devices listed reloads the page to make the selected device the primary device:

  • The Device Components page (Devices > Device Components) displays a list of all root devices and component devices discovered by SL1 in an indented view, so you can easily view the hierarchy and relationships between child devices, parent devices, and root devices. To view the component devices associated with your VMAX or PowerMax system, find the root device and click its plus icon (+):

  • The Device Component Map page (Classic Maps > Device Maps > Components) allows you to view devices by root node and view the relationships between root nodes, parent components, and child components in a map. This makes it easy to visualize and manage root nodes and their components. SL1 automatically updates the Device Component Map page as new component devices are discovered. The platform also updates each map with the latest status and event information. To view the map for your VMAX or PowerMax system, go to the Device Component Map page and select the map from the list in the left NavBar. To learn more about the Device Component Map page, see the section on Views.
