Configuration and Discovery

Download this manual as a PDF file

The following sections describe how to configure and discover Cisco Viptela resources for monitoring by SL1 using the Cisco: Viptela PowerPack:

Prerequisite for Monitoring Cisco Viptela

To configure the SL1 system to monitor Cisco Viptela resources using the Cisco: Viptela PowerPack, you must first know the credentials (username and password) for a user account that has access to the Cisco Viptela system. The user account must have read-all access.

To discover vEdge devices with only "valid" statuses, modify the "Cisco: Viptela vEdge Discovery" Dynamic Application's snippet arguments to filter by "valid" by changing the [*] section to use [?validity=='valid']. For example, the serialNumber's snippet argument uses the following: rest://dataservice/system/device/vedges&silo_args=jpath=data[?validity=='valid'].serialNumber|serialNumber

Configuring a Credential for Cisco Viptela

To configure SL1 to monitor Cisco: Viptela devices, you must first create a credential. This credential allows the Dynamic Applications in the Cisco: Viptela PowerPack to use your Cisco: Viptela user account to retrieve information from the Cisco: Viptela devices.

Configuring a Universal Credential for Cisco Viptela

To define a universal credential to access Cisco Viptela:

  1. Go to the Credentials page (Manage > Credentials).
  2. Click Create New and select Create Cisco sdwan/viptela Credential. The Create Credential modal page appears.
  1. Supply values in the following fields:
  • Name. Type a name for your credential.
  • All Organizations. Toggle on (blue) to align the credential to all organizations, or toggle off (gray) and then select one or more specific organizations from the from the What organization manages this service? drop-down field to align the credential with those specific organizations.
  • Timeout (ms). Keep the default value of 1500.
  • Authentication type. Keep the default value (Token Authentication).
  • Authenticator Override. Keep the default value (AuthViptela).
  • Username. Type the Cisco: Viptela account username.
  • Password. Type the Cisco: Viptela account password.
  • URL. Type the URL and port for the Cisco: Viptela system, using the following format: https://URL:443. For example, https://my.viptela.system:443.

Proxy Settings

Toggle on this field if you are using a proxy server to communicate with your Cisco Viptela account, enter the values in the fields listed below:

  • Proxy scheme type. Select http or https from the drop-down field.
  • Proxy Hostname/IP. Enter the hostname or the IP address associated with your device.
  • Proxy Port. Enter the port number for the proxy server.
  • Proxy User. Enter the username for the proxy server.
  • Proxy Password. Enter the password for the proxy server.

The HTTPS proxy scheme is only available using the new universal credential . Existing SOAP/XML credentials do not support switching the scheme.

  1. Click Save & Close.

Configuring a SOAP/XML Credential for Cisco Viptela

The PowerPack includes an example SOAP/XML credential that you can edit for your own use.

To configure a SOAP/XML credential to access Cisco: Viptela:

  1. Go to the Credentials page (Manage > Credentials).

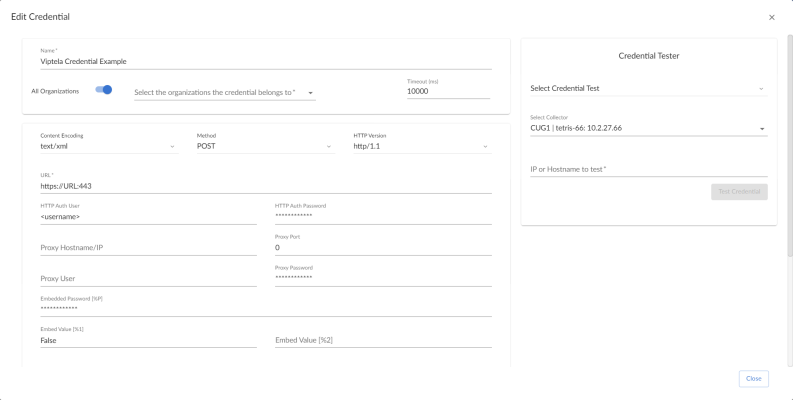

  2. Locate and then click the Viptela Credential Example - SOAP/XML credential. The Edit Credential modal page appears:

  1. Complete the following fields:
  • Name. Type a name for the Cisco: Viptela credential.
  • All Organizations. Toggle on (blue) to align the credential to all organizations, or toggle off (gray) and then select one or more specific organizations from the What organization manages this service? drop-down field to align the credential with those specific organizations.
  • Timeout (ms). Keep the default value.
  • Content Encoding. Select text/xml.
  • Method. Select POST.
  • HTTP Version. Select HTTP/1.1.
  • URL. Type the URL and port for the Cisco: Viptela system, using the following format: https://URL:443. For example, https://my.viptela.system:443.
  • HTTP Auth User. Type the Cisco: Viptela account username.
  • HTTP Auth Password. Type the Cisco: Viptela account password.
  1. For the remaining fields, use the default values, and then click the Save As button.

Configuring a Credential for Cisco Viptela in the SL1 Classic User Interface

To configure SL1 to monitor Cisco: Viptela devices, you must first create a SOAP/XML credential. This credential allows the Dynamic Applications in the Cisco: Viptela PowerPack) to use your Cisco: Viptela user account to retrieve information from the Cisco: Viptela devices.

The PowerPack includes an example SOAP/XML credential that you can edit for your own use.

To configure a SOAP/XML credential to access Cisco: Viptela:

  1. Go to the Credential Management page (System > Manage > Credentials).
  2. Locate the Viptela Credential Example - SOAP/XML credential, and then click its wrench icon (). The Edit SOAP/XML Credential modal page appears.

  1. Complete the following fields:
  • Profile Name. Type a name for the Cisco: Viptela credential.
  • Content Encoding. Select text/xml.
  • Method. Select POST.
  • HTTP Version. Select HTTP/1.1.
  • URL. Type the URL and port for the Cisco: Viptela system, using the following format: https://URL:443. For example, https://my.viptela.system:443.
  • HTTP Auth User. Type the Cisco: Viptela account username.
  • HTTP Auth Password. Type the Cisco: Viptela account password.
  • Timeout (seconds). Type "10".
  1. For the remaining fields, use the default values, and then click the Save As button.

Cisco Viptela Guided Discovery

You can use the Guided Discovery Framework process in SL1 to guide you through a variety of existing discovery types in addition to traditional SNMP discovery. This process, which is also called "guided discovery", lets you choose a discovery type based on the type of devices you want to monitor. The Guided Discovery workflow includes a button for Cisco Viptela.

To run a Guided Discovery:

  1. On the Devices page () or the Discovery Sessions page (Devices > Discovery Sessions), click the Add Devices button. The Select page appears.
  2. Select the Cisco button. Additional information about the requirements for device discovery appears in the General Information pane to the right.
  1. Click Select. The Credential Selection page appears.

During the guided discovery process, you cannot click Next until the required fields are filled on the page, nor can you skip to future steps. However, you can revisit previous steps that you have already completed.

  1. On the Credential Selection page of the guided discovery process, select the Cisco Viptela universal credential that you configured, and then click Next. The Root Device Details page appears.

  1. Complete the following fields:
  • Root Device Name. Type the name of the root device for the Cisco Viptela root device you want to monitor.
  • Select the organization to add discovered devices to. Select the name of the organization to which you want to add the discovered device.
  • Collector Group Name. Select an existing collector group to communicate with the discovered device. This field is required.

  1. Click Next. SL1 creates the Cisco Viptela root device with the appropriate Device Class assigned to it and aligns the relevant Dynamic Applications. The Final Summary page appears.
  1. Click Close.

This PowerPack uses the snippet framework in order to function. Not all values returned in an API call in a Dynamic Application may have a collection object. For more information about how collections can be modified, added, or deleted using the snippet framework, see the Snippet Framework documentation.

The results of a guided discovery do not display on the Discovery Sessions page (Devices > Discovery Sessions).

Creating a Cisco Viptela Virtual Device

Because the Cisco: Viptela service does not have a static IP address, you cannot discover a Cisco: Viptela device using discovery unless you use guided discovery. Instead, you must create a virtual device that represents the Cisco: Viptela service. A virtual device is a user-defined container that represents a device or service that cannot be discovered by SL1. You can use the virtual device to store information gathered by policies or Dynamic Applications.

To create a virtual device that represents your Cisco: Viptela service:

  1. Go to the Device Manager page (Devices > Classic Devices, or Registry > Devices > Device Manager in the classic SL1 user interface).

  1. Click the Actions button and select Create Virtual Device from the menu. The Virtual Device modal page appears.

  1. Complete the following fields:
  • Device Name. Type a name for the device.

  • Organization. Select the organization for this device. The organization you associate with the device limits the users that will be able to view and edit the device. Typically, only members of the organization will be able to view and edit the device.
  • Device Class. Select Cisco Systems Viptela | vManage.
  • Collector. Select the collector group that will monitor the device.
  1. Click Add to create the virtual device.

Aligning Dynamic Applications to the Virtual Device

A device template allows you to save a device configuration and apply it to multiple devices. The Cisco: Viptela PowerPack includes the "Cisco: Viptela vManage Template," which enables the SL1 to align all Dynamic Applications to the root component device.

Configuring the Device Template

Before you can use the "Cisco: Viptela vManage Template," you need to configure the template so that each dynamic application in the template aligns with the credential you created earlier.

To configure the Viptela device template:

  1. Go to the Configuration Templates page (Devices > Templates).
  2. Locate the "Cisco: Viptela vManage Template" and click its wrench icon (). The Device Template Editor modal page appears.
  3. Click the Dyn Apps tab. The Editing Dynamic Application Subtemplates page appears.
  1. In the Credentials drop-down list, select the credential that you created for Viptela.
  1. Click the next Dynamic Application listed in the Subtemplate Selection section on the left side of the page and then select the credential you created in the Credentials field.
  2. Repeat step 5 until you have selected that credential in the Credentials field for all of the Dynamic Applications listed in the Subtemplate Selection section.
  3. Click Save.

Using the Device Template to Align Dynamic Applications to the Component Device

After you have configured the "Cisco: Viptela vManage Template" so that each dynamic application in the template aligns with the credential you created, you can use that template to align the Dynamic Applications to the root component device for Cisco: Viptela.

To use the "Viptela vManage Template" to align Dynamic Applications:

  1. Go to the Device Manager page (Devices > Classic Devices, or Registry > Devices > Device Manager in the classic SL1 user interface).

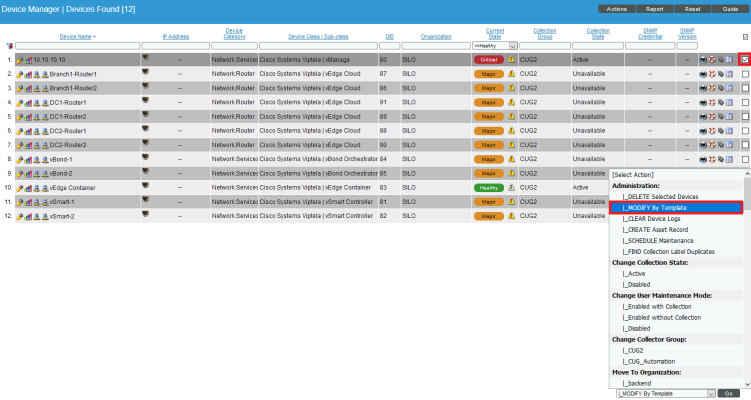

  2. On the Device Manager page, select the checkbox for the root component device.

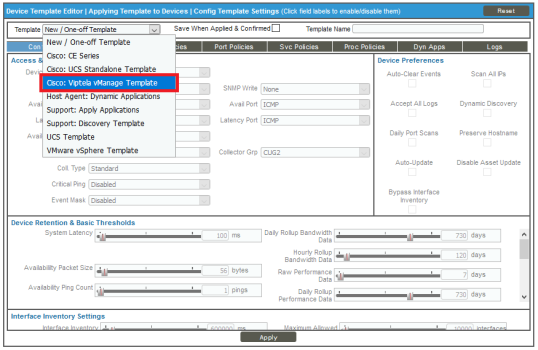

  1. In the Select Actions field, in the lower right, select the option MODIFY by Template and click the Go button. The Device Template Editor page appears:

  1. Complete the following fields:
  • In the Template drop-down list, select Cisco: Viptela vManage Template.
  • In the Credentials drop-down list, select the credential you created earlier.
  1. Click the Apply button, and then click Confirm to align the Dynamic Applications to the root component device.

Viewing Information About the Cisco Viptela System

You can view your Cisco Viptela devices in the following places in the user interface:

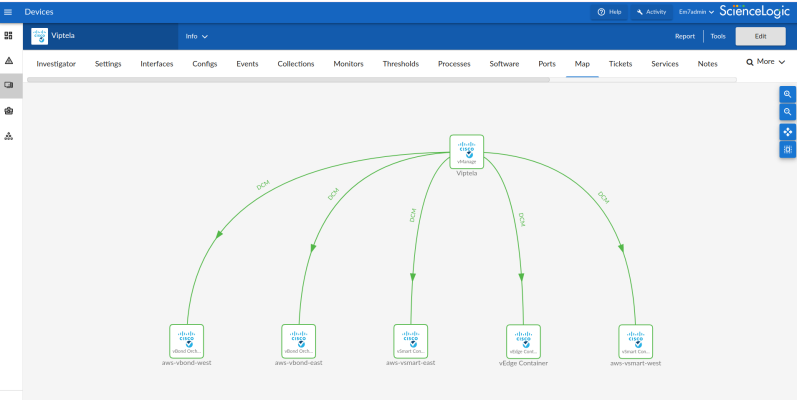

  • The Map tab of the Device Investigator for a selected device on the Devices page displays a map of that device and all of the devices with which it has parent-child relationships. Double-clicking any of the listed devices reloads the page to make the selected device the primary device.

  • The Device Components page (Devices > Device Components) displays a list of all root devices and component devices discovered by SL1. The Device Components page displays all root devices and component devices in an indented view, so you can easily view the hierarchy and relationships between child devices, parent devices, and root devices. To view the component devices associated with a Cisco Viptela device, find the device and click its plus icon (+).

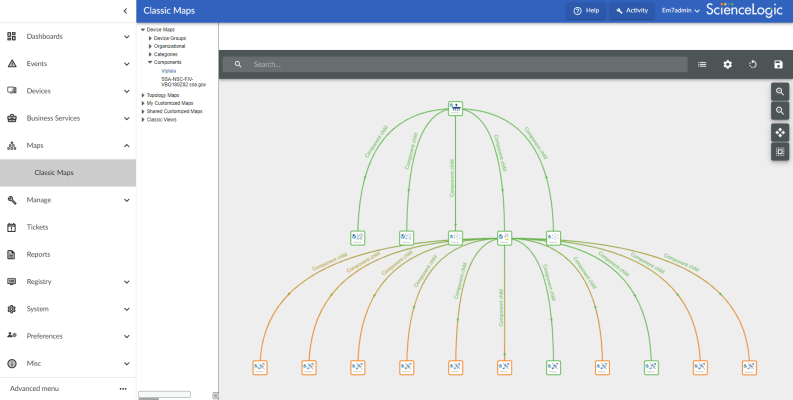

  • The Classic Maps page (Maps > Classic Maps) allows you to view devices by root node and view the relationships between root nodes, parent components, and child components in a map. From this page, go to Device Maps > Component to easily visualize and manage root nodes and their components. SL1 automatically updates the Classic Maps as new component devices are discovered. The platform also updates each map with the latest status and event information. To view the map for a Cisco Viptela device, go to the Classic Maps page and select the map from the list in the left NavBar. To learn more about the Classic Maps page, see the section on Maps.
