Dell EMC Unity Automation Policies

This section describes how to use the automation policies, run book actions, and custom action types found in the "Dell EMC Unity Automations" PowerPack.

Standard Automation Policies

The "Dell EMC Unity Automations" PowerPack includes two standard run book automation policies. Each policy triggers a run book action that collects diagnostic data from the Unisphere REST API and adds the output to the Skylar One event log or associated incident.

All of the standard automation policies are tied to included Skylar One events generated by the Dynamic Applications from the "Dell EMC: Unity" PowerPack.

The following table shows the standard automation policies, their aligned events, and the run book actions that run in response to the events.

The aligned events are included as part of this PowerPack and are not installed with the Skylar One platform. You must install the PowerPack to obtain these events.

Automation Policy Name	Aligned Events	Run Book Action
Dell EMC Unity: LUN Diagnostics	Dell EMC: Unity LUN Config health status is critical Dell EMC: Unity LUN Config health status is degraded	Dell EMC Unity LUN Info Collection Dell EMC Unity: HTML Output Formatter
Dell EMC Unity: Storage Pool Diagnostics	Dell EMC: Unity Storage Pool Capacity usage has exceeded initial threshold Dell EMC: Unity Storage Pool Config health status is critical Dell EMC: Unity Storage Pool Capacity usage has exceeded major threshold Dell EMC: Unity Storage Pool Config health status is degraded Dell EMC: Unity Storage Pool Capacity usage has exceeded minor threshold	Dell EMC Unity Storage Pool Info Collection Dell EMC Unity: HTML Output Formatter

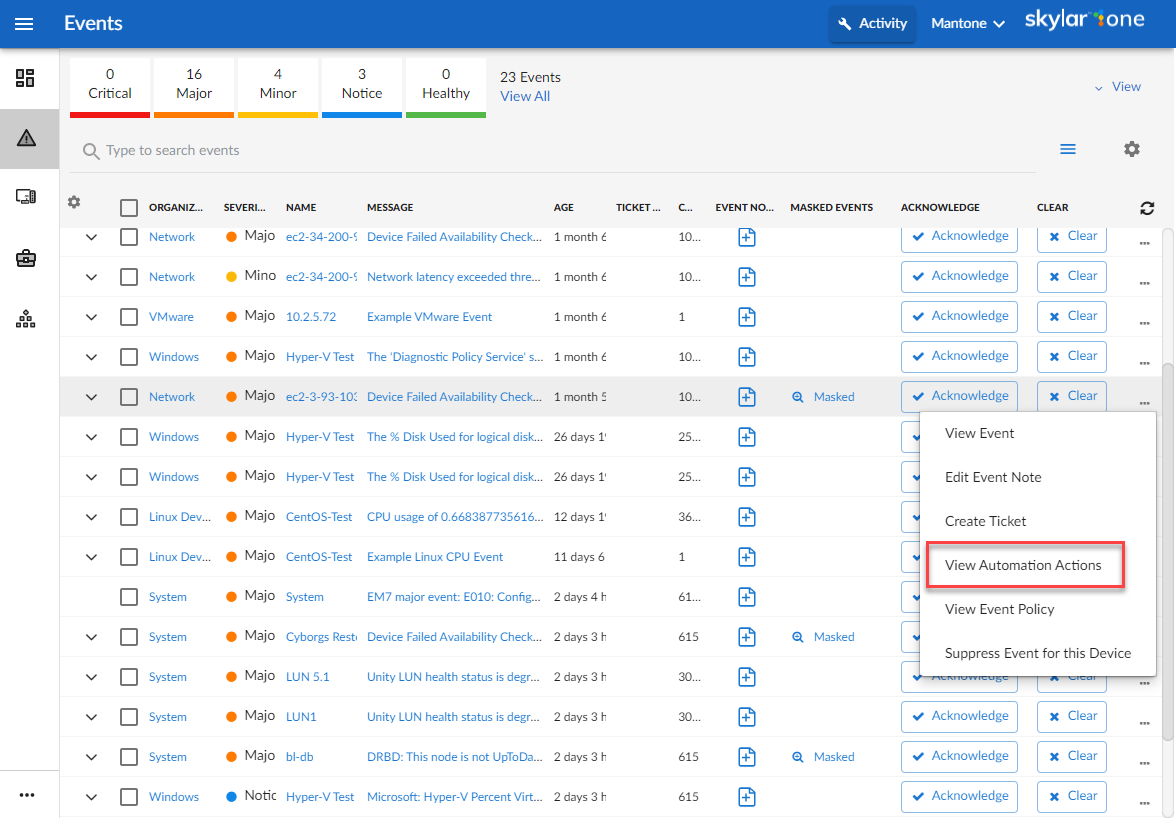

The following figure shows a file system usage threshold exceeded event with major criticality on the Events page. Click the [Actions] button () for an event, and select View Automation Actions to see the run book actions triggered by the events.

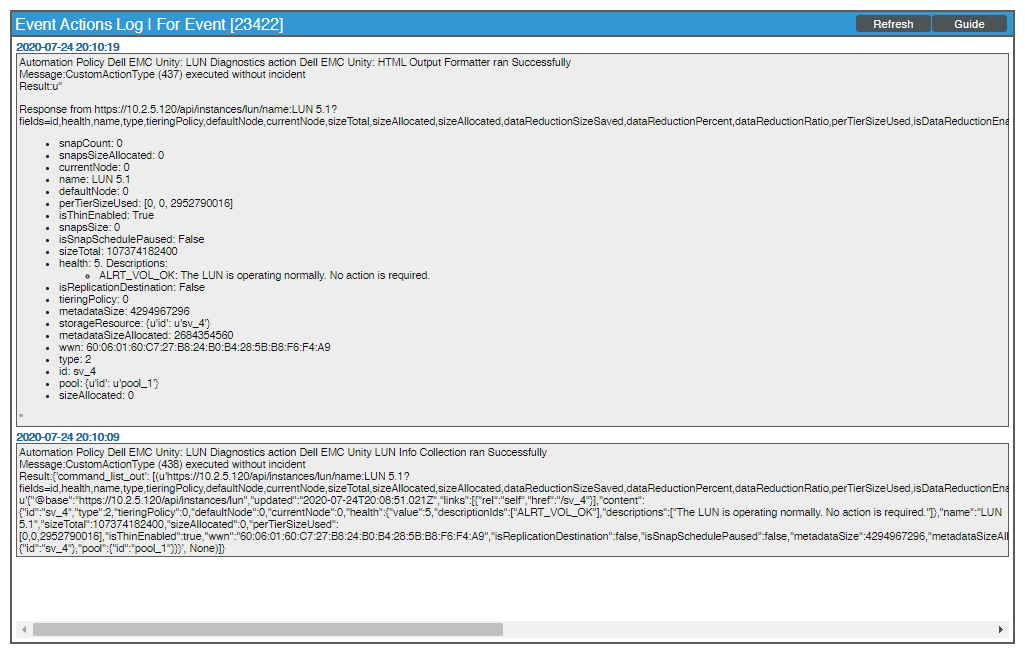

The results shown for this event, in the Event Actions Log modal, include the automation policy that ran (shown at the top of the following figure), along with the run book actions (commands) that ran. Results for each command are also displayed. The following figure shows an example of this output:

To learn more about which commands are executed by default for a given run book action, see Customizing Actions.

Although you can edit the automation policies described in this section, it is a best practice to use "Save As" to create a new automation policy, rather than to customize the standard automation policies.
