Viewing Global Business Services

Download this manual as a PDF file

This section describes how to view business services in an SL1 Global Manager system. You can view business services on the Business Services page, which you can access by clicking the Business Services icon (). From there, you can select a service from the list to view detailed data on the Service Investigator page for that service.

Use the following menu options to navigate the SL1 user interface:

  • To view a pop-out list of menu options, click the menu icon ().
  • To view a page containing all of the menu options, click the Advanced menu icon ().

Viewing the Global List of Business Services

The Business Services page displays a list of the business, IT, and device services that you have access to, as well as some basic info and the health, availability, and risk metrics for each service.

To navigate to the Business Services page, click the Business Services icon (), then click the name of the business service you would like to view details about:

The Global View button on the Business Services page is toggled on by default to display a list of business, IT, and device services across all of the stacks in your Global Manager system. You cannot toggle the Global View button off for business services.

If you are looking for a very specific set of services, click the gear icon () to the right of the Search field and select Advanced. In this mode you can create an advanced search using "AND" or "OR" for multiple search criteria. For more information, see Performing an Advanced Search.

For each service, the Business Services page displays the following information:

  • Name. The name of the service.
  • Description. A description of the service.
  • Service Type. Indicates the service type. Values include Business Service, IT Service, Device Service, or a custom service page.
  • Organization.The organization that owns the service.
  • Contact User.The user who should be contacted with any questions about the service.
  • Availability.The service's current availability value.
  • Health.The service's current health value.
  • Risk. The service's current risk value.
  • Policy.The service' policy associated with the service.
  • Stack ID. The numeric ID of the stack on which the service was discovered.
  • Stack Name. The name of the stack on which the service was discovered.
  • Last Updated By. The username of the user who last updated the service.
  • Date Updated. The date and time at which the service was last updated.
  • RCA Options. Indicates whether Root Cause Analysis is enabled or disabled for the service.
  • Contact Organization. The organization that should by contacted with any questions about the service.

To rearrange the columns in the list, click and drag the column name to a new location. You can adjust the width of a column by clicking and dragging the right edge of the column. For more information about editing and adding columns, see Editing the Settings for an Inventory Page.

You can configure your column fields by clicking the gear icon () below the Global View toggle, then by adding and removing different column fields by selecting and deselecting the checkboxes, respectively.

You can filter the items on this inventory page by typing filter text or selecting filter options in one or more of the filters found above the columns on the page. For more information, see Filtering Inventory Pages.

You can adjust the size of the rows and the size of the row text on this inventory page. For more information, see the section on Adjusting the Row Density.

Favoriting Business Services

In SL1, you can select one or more services so that they always display at the top of the list on the Business Services page. This process is called favoriting services or favorite service.

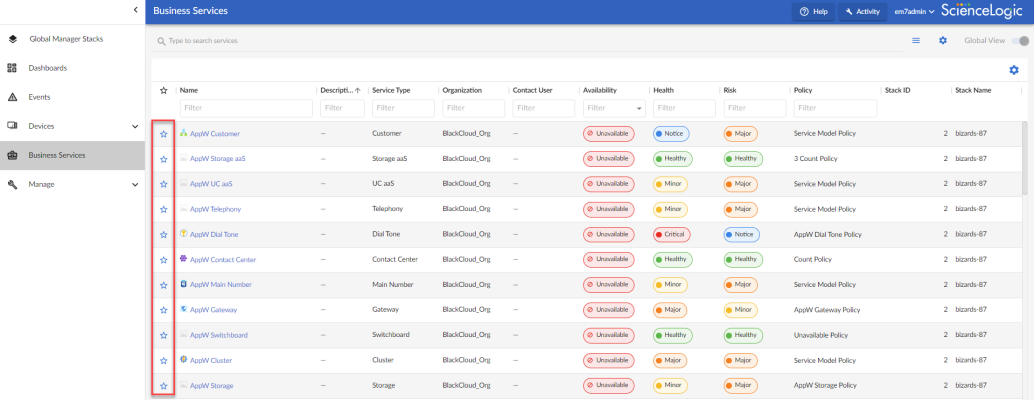

For example, on the Business Services page pictured below, click the Favorite Service star icon () to add or remove the service from your favorites list. Click the icon () again to remove the favorite status.

You can then sort your Business Services by their favorite status.

With favorite services, you can:

  • View your favorite service at the top of the Business Services page by default.
  • Include favorites in the multi-sort function.
  • Filter services by favorite.

Using the Service Investigator

You can view detailed data about a specific service by clicking the service name on the Business Services page to open the Service Investigator page.

The Service Investigator page contains the following tabs:

Each of these tabs is described in the following sections.

The Overview Tab

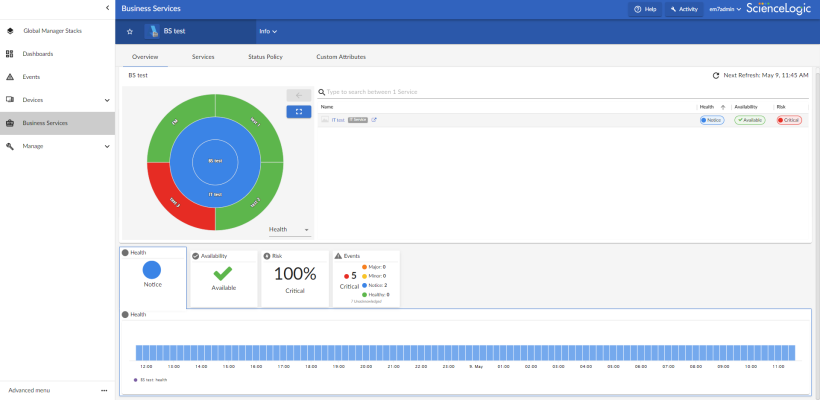

The Overview tab provides a single-page view of your services. This tab enables users to determine the behavioral correlation between a service's health, availability, and risk values and the events, anomalies, or other causes that might be impacting those values. This behavioral correlation feature provides users with a "big picture" view of the service and enables them to determine the root cause of any problems the service might be experiencing and then troubleshoot those problems.

The Overview tab consists of the following widgets:

Each of these widgets is described in the following sections.

Sunburst Widget

The top dashboard widget of the Overview tab displays either a Sunburst chart view or a Map view of your services. Use the drop-down menu in the top left corner of the widget to select which view you want to appear.

When you select the Sunburst view:

  • The left pane includes a sunburst chart that displays the current Health, Availability, and Risk values for the service, as well as for any constituent IT services or device services that belong to that top-level service. For device services, the sunburst includes the device name and Health values for any devices that belong to the service. Additionally, this pane indicates the maximum number of constituent services or devices that will be used for computing health, availability, and risk.
  • The right panel includes a list of constituent services or devices. Each service in this panel includes icons that represent that service's Availability, Health, and Risk metrics; devices include icons that represent each device's Health value. The right panel also includes a search bar at the top of the panel that enables you to search for specific constituent services or devices.

In the sunburst chart, the center circle represents the selected service. The selected service drives the context for the page title and Info drawer, as well as all the other panels and widgets on the Overview tab. This means that the right panel, widgets, and other elements on the page will all reflect the metrics for the service in the center circle of the sunburst.

You can navigate through services on the widget in the following ways:

  • In the left panel, you can click any of the constituent IT services or device services in the sunburst to select that service. To return to the parent IT service or business service, click the center circle or click the Back button.
  • In the right panel, you can click the service name of any of the constituent IT services or device services to select that service. To return to the parent IT service or business service, click the breadcrumb links that appear in the top-left corner of the widget.

By default, the sunburst displays the Health value for the selected service and its constituent services or devices. To view the current Availability or Risk value for the selected service, click the drop-down button in the lower-right corner of the left pane and select Availability or Risk.

To collapse the sunburst widget, click the up arrow icon () in the top-right corner of the widget. To reopen it, click the down arrow icon ().

Health, Availability, and Risk Widgets

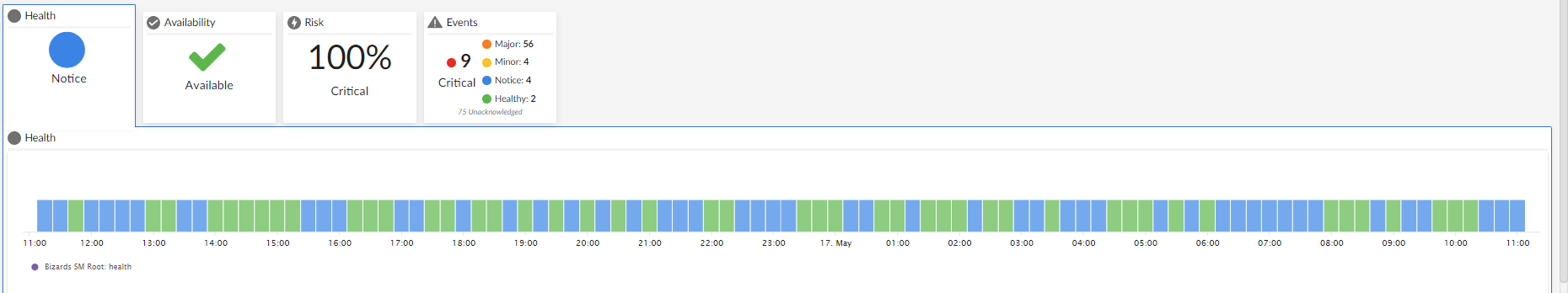

The Health, Availability, and Risk widgets display a time series chart with the historical values of those metrics for the selected service from each polling cycle over the previous 24 hours.

From these widgets, you can do the following:

  • Hover your mouse over the chart to view the value for each polling cycle from the previous 24 hours.
  • Click and drag your mouse over a series of bars in the chart to zoom in on that specific timespan. To return to the 24-hour view, click Reset zoom.
  • Click a specific polling cycle to view the historic Health, Availability, and Risk values for that polling cycle.

If the RCA Options field is enabled, you can also view Root Cause Analysis information for the service to help you troubleshoot the root cause of a particular Health, Availability, or Risk value for a specific polling cycle. To view Root Cause Analysis information, click one of the polling cycles in the time series chart. For more information, see Using the Root Cause Analysis Feature.

For more information about Health, Availability, and Risk, see the section Understanding Health, Availability, and Risk.

Changes Widget

The Changes widget appears only if it has been properly configured and enabled. For more information, see the Configuring and Enabling the Changes Widget section of the Business Services manual.

The Changes widget is available to customers who have purchased Configuration and Change Management as part of their SL1 Standard or Premium subscription. This widget displays a list of events that are created when PowerFlow pulls change data from ServiceNow or Restorepoint, including both active and cleared change events.

The Changes widget appears only if it has been properly configured and enabled.

The Changes widget tile displays the number of active change events that are impacting the service. Events on the widget will automatically clear after 30 minutes.

From the Changes widget, you can do the following:

  • Use the drop-down menu to choose which type of change events display in the widget: Active Events or Cleared Events.
  • Filter and search for events by their date; either by 5, 7, 14, 30 days, or more than 30 days.
  • Use the Search field to search for specific change events.
  • For active events that are aligned to devices, click the down-arrow icon () next to the event to open the Event Drawer panel, which displays the following panes:
  • Vitals. A widget displaying the past 24 hours of CPU and memory usage for the device related to the event. You can zoom in on a shorter time frame by clicking and dragging, and you can go back to the original timespan by clicking the Reset zoom button.
  • Tools. A set of network diagnostic tools or user-initiated actions that you can run on the device associated with the event. Click the search bar to search for a tool or action to run, or click one of the default tools or actions that are available based on the device type and your user permissions.
  • Logs. A list of the log entries from the device's log file, sorted from newest to oldest by default.
  • View the Organizational Summary page for the organization aligned with an active event by clicking the link in the Organization column.
  • View the Service Investigator or Device Investigator page for the service or device aligned with an active event by clicking the link in the Name column.
  • View the Event Investigator page for an active event by clicking the link in the Message column.
  • For ServiceNow integrations, view the ServiceNow ticket associated with an active event by clicking the link in the Ticket External Reference column.
  • For ServiceNow integrations, view the ServiceNow ticket associated with a cleared event by clicking the link in the External Ticket column.
  • Acknowledge an active event by clicking the Acknowledge button. When you acknowledge an event, you let other users know that you are aware of that event, and you are working on a response.
  • Clear an active event by clicking the Clear button. When you clear an event, you let other users know that the event has been addressed.
  • Create a ticket from an active event.
  • View the event policy for an active event.
  • Select multiple active events for action using the check boxes next to the events.

Events Widget

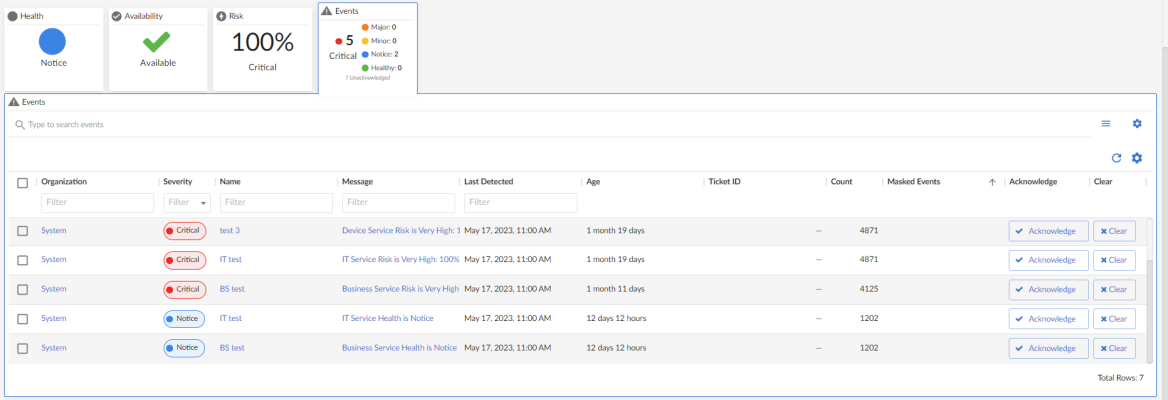

The Events widget displays a list of events for the selected service. This widget has much of the same functionality as the Events page.

The Events widget tile displays the number of events of each severity type, after masking, that are currently impacting the service. When opened, the Events widget lists all events impacting the service, including masked events. Therefore, the number of events that appear in the widget tile might be smaller than the number of events that appear in the opened widget.

From the Events widget, you can do the following:

  • Use the search field to search for specific events.
  • For events that are aligned to devices, click the down-arrow icon () next to the event to open the Event Drawer panel, which displays the following panes:
  • Vitals. A widget displaying the past 24 hours of CPU and memory usage for the device related to the event. You can zoom in on a shorter time frame by clicking and dragging, and you can go back to the original timespan by clicking the Reset zoom button.
  • Tools. A set of network diagnostic tools or user-initiated actions that you can run on the device associated with the event. Click the search bar to search for a tool or action to run, or click one of the default tools or actions that are available based on the device type and your user permissions.
  • Logs. A list of the log entries from the device's log file, sorted from newest to oldest by default.
  • View the Organizational Summary page for the organization aligned with the event by clicking the link in the Organization column.
  • View the Service Investigator or Device Investigator page for the service or device aligned with the event by clicking the link in the Name column.
  • View the Event Investigator page for the event by clicking the link in the Message column.
  • View or edit event notes by clicking the Note icon () in the Event Note column or by clicking the Actions button () and selecting Edit Event Note. Event notes contain event definitions, probable causes, and resolutions for the event, along with a text field where you can add more information about the event or the service or device you are monitoring.
  • View more information about masked events by clicking the masked events icon () in the Masked Events column. Masked events are related events that occur in quick succession on a single device or service that are rolled up and posted together under one event description, with only the highest severity event displayed.

    • For more information on masked events, see Viewing Events.

  • Acknowledge the event by clicking the Acknowledge button. When you acknowledge an event, you let other users know that you are aware of that event, and you are working on a response.
  • Clear the event by clicking the Clear button. When you clear an event, you let other users know that the event has been addressed.
  • Create a ticket from the event.
  • View the event policy.
  • View a log of automations that have occurred for the event by clicking the Actions icon () and selecting View Automation Actions.
  • Select multiple events for action using the check boxes next to the events.

For more information about events, see the section on Events.

The Services/Devices Tab

For business services and IT services, the Services tab displays the services currently being used in the service; for device services, the Devices tab displays devices included in the service.

You can edit the query at the top of the tab to control which services or devices appear on the page when you click Search.

Image of the Services sub tab, continued

The "ANY" search option is disabled on the Services or Devices tab.

For more information about the Services or Devices tab for business services, IT services, and device services, see the section on Creating Business, IT, or Device Services.

For Custom Service Models, the Services tab displays two tabs:

  • Hierarchy. Enables you to edit your service hierarchy by adding, moving, or deleting service groups.
  • Details. Includes two sub-tabs:
  • Overview. Enables you to update the managing organization and visible organizations for the individual levels within your service model hierarchy.
  • Status Policy. Enables you to create a new status policy or apply an existing status policy for the individual levels within your service model hierarchy.

You cannot make changes for Business Services in Global Manager. For more information about the Services tab for service models, see the section on Creating a Custom Service Model.

The Status Policy Tab

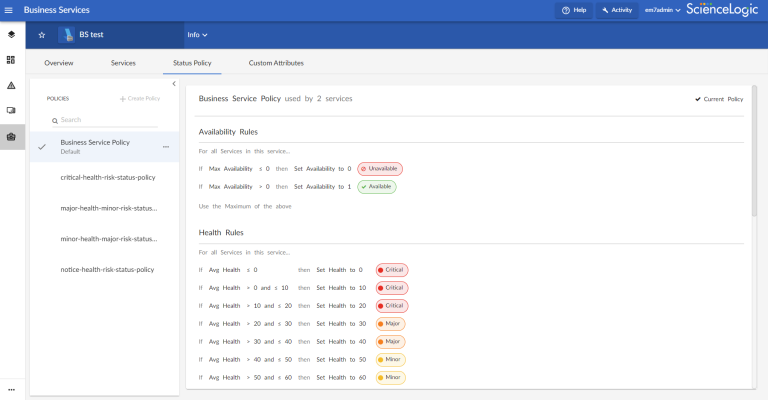

The Status Policy tab displays a list of all the policies of that service type that are currently in the system and that can be chosen to associate with the service being viewed.

Global Manager is read-only. For more information about selecting or changing a service policy, see the section on Selecting a Service Policy. For more information about creating a new service policy, see the section on Creating a Service Policy.

Depending on the thresholds you configured on the Business Services Thresholds page (Business Services > Thresholds), SL1 generates an alert message if a threshold is crossed.

For more information about thresholds, see the section on Managing Service Thresholds.

The Custom Attributes Tab

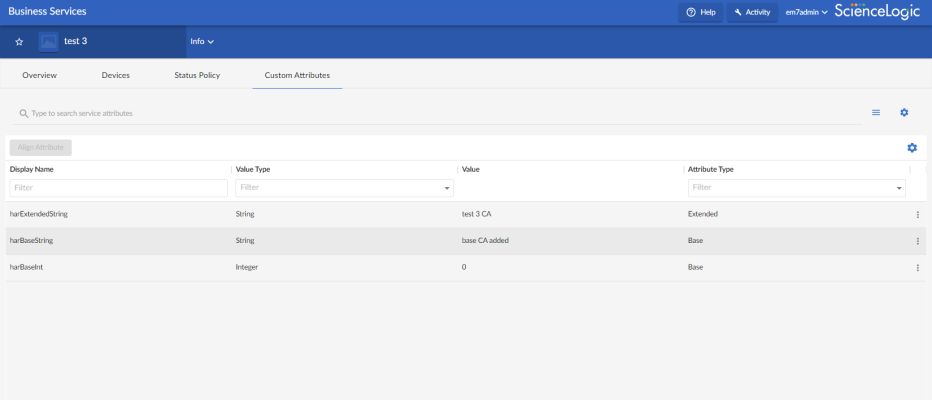

The Custom Attributes tab displays a list of all of the custom attributes that are aligned with your service.

Custom Attributes are customized name-value pairs. You can use custom attributes when importing services from an integrated system to handle incoming properties that are not defined in SL1.

There are two categories of custom attributes:

  • Base Custom Attributes. Base custom attributes for services are aligned to all services. Therefore, all base custom attributes in your SL1 system that have a Resource Type of Service will appear on the Custom Attributes tab for all services. You can edit the value of a base custom attribute for a particular service, but you cannot unalign a base custom attribute from a service.
  • Extended Custom Attributes. Extended custom attributes that have a Resource Type of Service can be aligned individually to one or more services. For example, you could align an extended custom attribute only to those services to which the custom field applies. You can also edit an extended attribute value for a particular service or unalign an extended custom attribute from a service.

Custom attributes cannot be used in dashboards for business services.

For more information about custom attributes, see the section on Custom Attributes.

For more information about custom attributes, see the section on Custom Attributes.

Using the Info Drawer on the Service Investigator Page

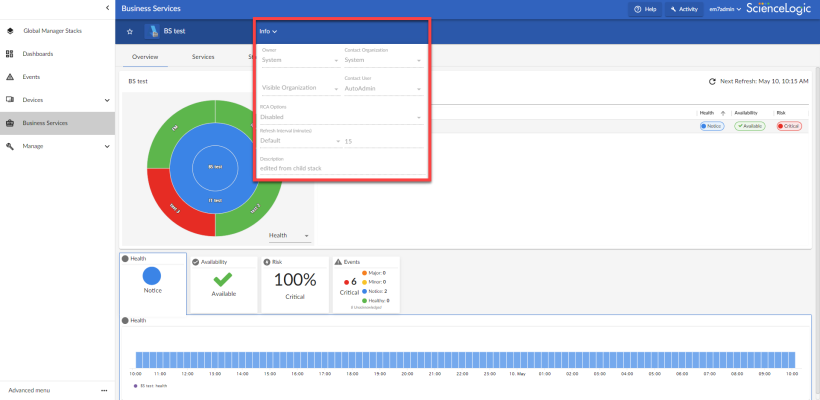

The Info drawer at the top of the Service Investigator page displays the following:

The Info drawer is read-only in Global Manager. For more information, see the section on The Info Drawer on the Service Investigator Page in the Business Services manual.

  • Owner. The organization that owns the service.
  • Contact Organization. The organization that should be contacted with any questions about the service.

  • Visible Organizations. A list of organizations from which you can select devices to use in Device Services or IT Services. For example, if you selected Acme for this field, then any service that is aligned with Acme can access devices in the Acme organization. This implies the devices can be included in IT Services. There are two uses for Visible Organizations:

    1. Device Services. Allow the inclusion of devices from the owning organization, as well as the visible organizations.
    2. IT Services. Allow the inclusion of Device Services from the owning organization, as well as the visible organizations.
  • Contact User. The user who should be contacted with any questions about the service.
  • RCA Options. Allows you to enable or disable the Root Cause Analysis feature, an advanced feature for troubleshooting. For more information, see the section on Using the Root Cause Analysis Feature in the Business Services manual.
  • Refresh Interval (minutes). Allows users with edit permissions to edit the Health-Availability-Risk (HAR) Har Provider's Poll Frequency time. The value allows a minimum of 1 minute and a maximum of 24 hours (in minutes). Default minute value is 15 minutes.
  • Description. A description of the service. You can use this field as a metadata tagging field that can be exploited in the search by a parent service. For example, if a collection of Device Services all have a description of "Shared Infrastructure", then an IT Service can search to include every Device Service in the same organization that has a description of "Shared Infrastructure". As you add more "Shared Infrastructure" device services, the IT Service will automatically expand to include them. This makes building service trees quick and self-maintaining, without resorting to rigid service names.
  • Include devices from visible organizations. Allows you to include devices from other organizations in a Device Service. Turn the toggle on (blue) to include other organizations' devices; turn it off (gray) to exclude other organizations' devices. This option appears only on the Service Investigator page for Device Services.
