What is an Event?
One of the quickest ways to monitor the health of your network is to look at events. You can view events on the Events page in Skylar One.
Events are alerts that are triggered when a specific condition is met. For example, an event can signal if a server has gone down, if a device is exceeding CPU or disk-space thresholds, or if communication with a device has failed. Alternatively, an event can simply display the status of a managed element.
An alert defines a formula that Skylar One evaluates each time data is collected. If the formula evaluates to true during data collection, Skylar One generates an alert. Not every alert triggers an event. An alert must have an event policy in Skylar One that defines the conditions for the event, and when an alert meets the conditions in the event policy, Skylar One generates an event.
Skylar One generates log messages from incoming trap and syslog data, and also when Skylar One executes user-defined policies. Skylar One then uses these log messages to generate events. Skylar One examines each log message and compares it to each event definition. If a log message matches an event's definition, Skylar One generates an event instance and displays the event on the Events page.
Each event includes a description of the problem, where the problem occurred (device, network hardware, software, policy violation), a pre-defined severity, the time of first occurrence, the time of most recent occurrence, and the age of the event. You can find more information on the Event Investigator page for an event.
Skylar One includes pre-defined events for the most commonly encountered conditions in the most common environments. You can also create custom events for your specific environment or edit the pre-defined events to better fit your specific environment.
How Are Events Triggered?
Skylar One examines log messages to generate instances of events. When Skylar One monitors a system, Skylar One generates log messages when the collected data meets user-defined thresholds. Additionally, a monitored system can send log messages to Skylar One asynchronously. Skylar One examines each log message and compares it to each existing event definition. If a log message matches an event's definition, Skylar One generates an event instance and displays the event on the Events page.
Skylar One includes logic that correlates and groups related logs and messages into a single event. Skylar One includes pre-defined events for many syslog, internal, trap, and dynamic messages.
Event Sources
Skylar One generates events by collecting logs and messages from the following:
- Syslog. Message is generated by the syslog protocol. Syslogs can be sent by devices and proxy devices such as managers of managers (MoM). A syslog is an unsolicited message from a device to Skylar One. Syslog is a standard log format supported by most networking and UNIX-based devices and applications. Windows log files can be converted to syslog format using conversion tools. For more information on syslogs, see the section on syslog messages.
- Internal. Message is generated by a ScienceLogic process. The message is about the Skylar One system itself, instead of the devices that the Skylar One system monitors.
- Trap. Message is generated by an SNMP trap. SNMP traps can be sent by devices and proxy devices like managers of managers (MoMs). An SNMP trap is an unsolicited message from a device to Skylar One. A trap indicates that an emergency condition or a condition that merits immediate attention has occurred on the device. For more information on traps, see the section on SNMP Traps.
- Dynamic. Message is generated by a Dynamic Application alert. Dynamic Applications are customizable policies that tell Skylar One how to monitor applications and devices. You can define alerts in Dynamic Applications. An alert can trigger events based on the data collected by the Dynamic Application. Alerts allow you to examine and manipulate values retrieved by Dynamic Applications. When an alert evaluates to TRUE, the alert inserts a message in the associated device's device log. Skylar One examines each new message in the device log and determines if the message matches an event definition. If the message matches an event definition, Skylar One generates an instance of that event. For example, an alert might be defined to evaluate to TRUE if the temperature of a chassis exceeds 100 degrees Fahrenheit. If the chassis temperature exceeds 100 degrees at some point in the future, Skylar One inserts a message in the associated device's log files. Skylar One then matches that message with an existing event, and then triggers the event. For more information, see the section on Dynamic Application Development.
- Email. Message is generated by an email message sent to Skylar One. For more information on generating events with email messages, see the section on events from email.
- API. Message is generated by inserting a message into the main database. These messages can be inserted by a snippet automation action, a snippet Dynamic Application, or by a request to the ScienceLogic API. For more information on snippet automation actions, see the section on snippet actions. For more information on snippet Dynamic Applications, see the section on developing snippet Dynamic Applications. For more information on the ScienceLogic API, see the section on generating events with the ScienceLogic API.
- ScienceLogic Agent. Message is generated by log file messages collected by a Skylar One agent. For more information about creating Log File Monitoring Policies to monitor log file messages collected by an agent, see the section on Monitoring Device Logs Using an Agent.
- Rules Engine. Message is generated through internal policy evaluations, complex correlation rules, or rule-based logic. Users cannot create or edit event policies with a Source of Rules Engine.
- Skylar Automated RCA. Message is generated by Skylar Automated RCA alerts. Skylar One receives an alert from Skylar Automated RCA and creates an event from it. For more information, see the Skylar AI documentation.
- Skylar AI. Message is generated by Skylar AI alerts. Skylar One receives an alert from Skylar AI and creates an event from it. For more information, see the Skylar AI documentation.
Viewing Events

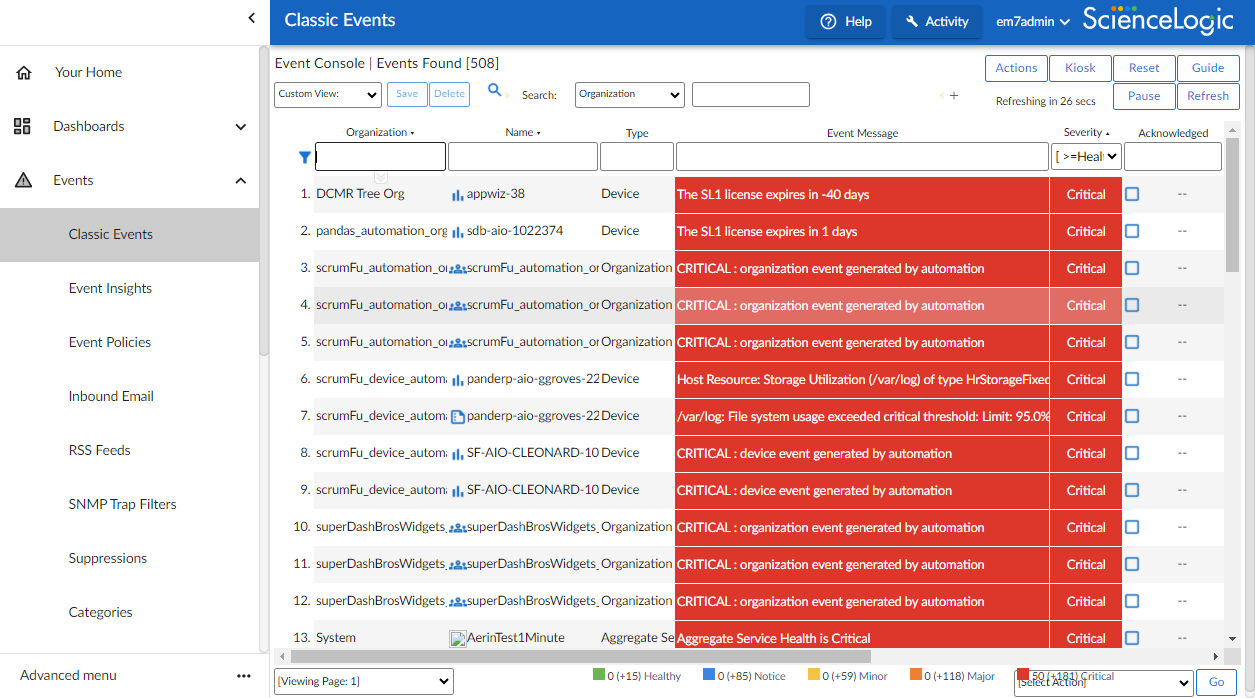

The Events page displays a list of currently active events, from critical to healthy. From this page, you can acknowledge, clear, and view more information about an event. You can also view events by organization to focus on only the events that are relevant to you.
For more information about using the Events page, see the section on Viewing the List of Events.
In addition, you can:
Event Correlation
In Skylar One, event correlation means the ability to build parent-child relationships between devices and between events. When events are correlated, only the parent event is displayed on the Events page. The child events are rolled up under the parent event and are not displayed on the Events page. For the parent event, the value in the Count column is incremented to indicate the number of correlated child events. In addition to creating parent-child relationships between devices and between events, you can define event categories that allow Skylar One to more efficiently align events.
Skylar One performs some event correlation automatically. You can also manually configure devices and events so that Skylar One treats specified events as parent events and specified events as child events. For more information, see the section on event correlation.
Defining Events

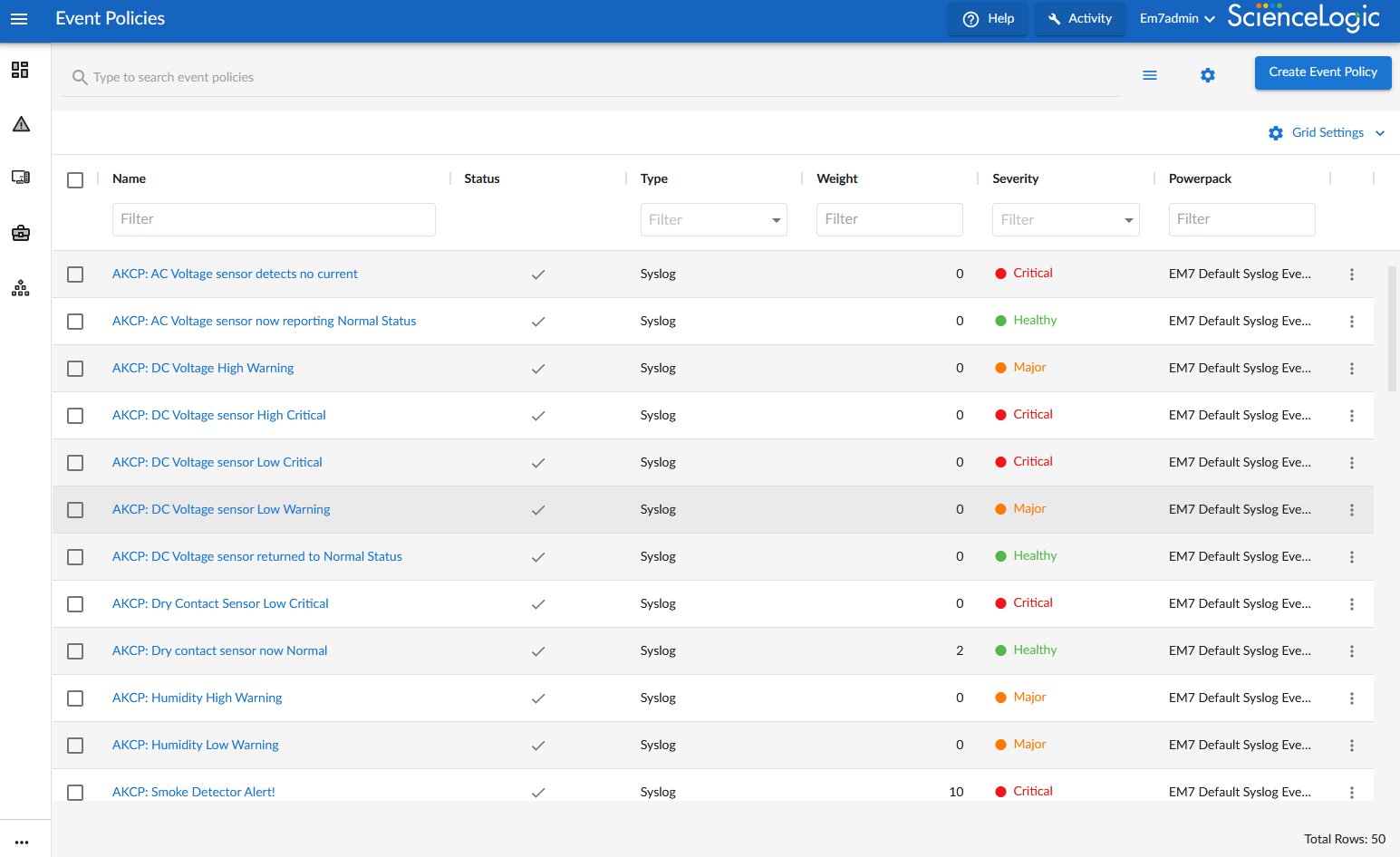

The Event Policies page (Events > Event Policies) displays a list of all event policies in Skylar One. This page also allows you to define new event definitions and edit existing event definitions.
Skylar One includes pre-defined events for the most commonly encountered conditions on the most common platforms. Skylar One allows you to customize these events and also to define new events. You do this in the Event Policies page.
If your organization requires Skylar One to monitor a condition for which Skylar One does not already include an event policy, you can define a custom event policy to meet your needs.
For more information, see the section on defining and editing event policies.
Event States
Although not displayed on the Events page, events have four distinct states:
- Active. Skylar One has created an event record. The event might appear on the Events page, or it might be masked or nested as a topology event, and therefore not appear on the Events page.
- Masked. The event record is active and appears on the Events page as a masked event. On the Events page, masked events can be caused by event masks or topology events. Masked events are nested under the event with the highest severity or under the parent event. You can click the masked events icon (
) to view details about the masked events. - Cleared. The event has been removed from the Events page. When you clear an event, you remove only a single instance of the event from the current display on the Events page. If the event occurs again on the same entity, it reappears on the Events page.
- Prepending. An alert triggered the event, but additional criteria must be met before Skylar One creates an event record. Prepending events are grayed out in device logs.
